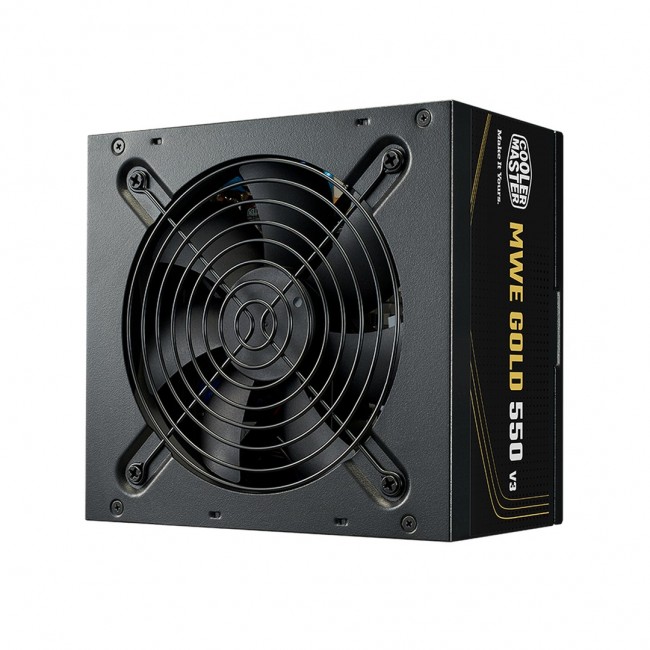

Cooler Master MWE Gold V3 ATX 3.1 Non-Modular power supply unit 550 W 24-pin ATX Black
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRTJHJ
- Βάρος(kg): 0.29kg
- Διαστάσεις Συσκευασίας: 13.00cm x 2.90cm x 6.90cm
- EAN: 4719512157282
116,38€
Χωρίς ΦΠΑ: 93,86€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| ATX version | 3.1 |
| Bearing technology | HDB |
| Cabling type | Non-Modular |
| Certification | ErP 2014 Lot 3 |
| Combined power (+12V) | 549.6 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Compliance certificates | BSMI KC EAC RCM BIS RoHS China Compulsory Certification (CCC) CCC Federal Communications Commission (FCC) cTUVus REACH UKCA |
| Cooling type | Active |
| Depth | 140 mm |
| Efficiency | 90% |
| EPS cable length | 67 cm |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Fan diameter | 12 cm |
| Fan speed | 0 - 1800 RPM |
| Guarantee | G024M |
| Height | 86 mm |
| Hold time | 16 ms |
| Input current | 4 - 8 A |
| Master (outer) case height | 215 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case width | 275 mm |
| Master (outer) cases per pallet | 120 pc(s) |
| Max output current (+12V) | 45.8 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Mean time between failures (MTBF) | 100000 h |
| Motherboard power cable length | 50 cm |
| Motherboard power connector | 24-pin ATX |
| Number of EPS connectors | 2 |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 6 |
| Operating temperature (T-T) | 0 - 40 C |
| Package depth | 260 mm |
| Package height | 110 mm |
| Package weight | 1.98 kg |
| Package width | 190 mm |
| PCI Express connector | Yes |
| PCI Express power cable length | 62 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 400 mm 700 550 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Under voltage Over current Short circuit Over voltage Over power Overheating |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Purpose | PC/Server |
| SATA power cable length | 400 mm 550 700 mm |
| Total power | 550 W |
| Weight | 1.57 kg |
| Width | 150 mm |
