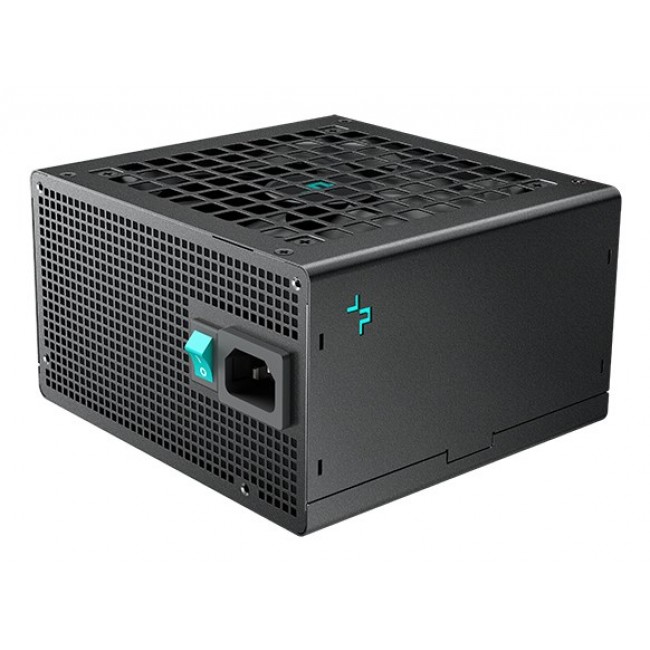

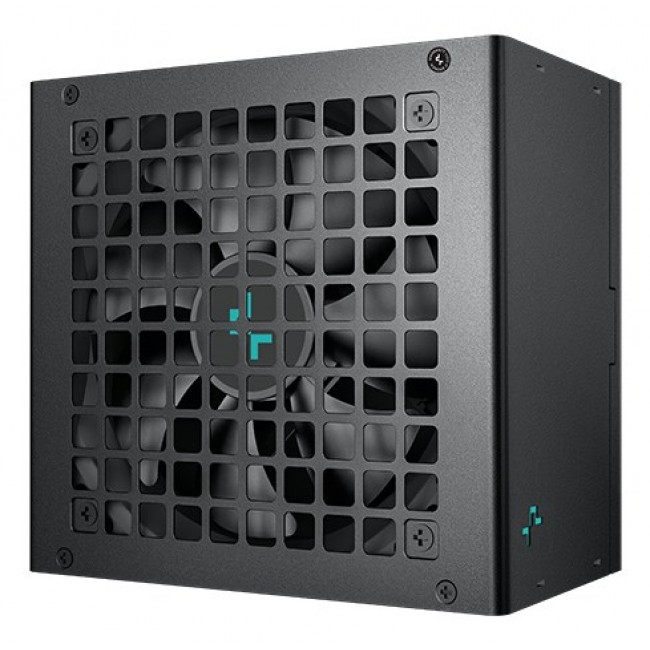

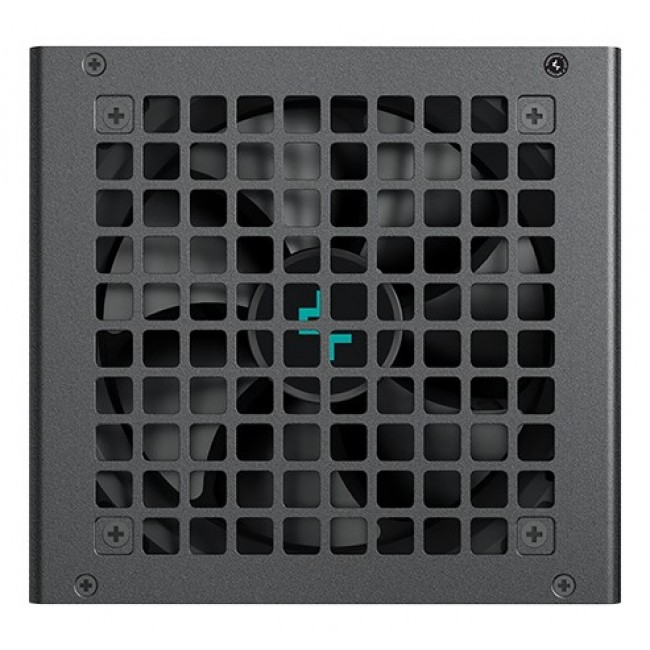

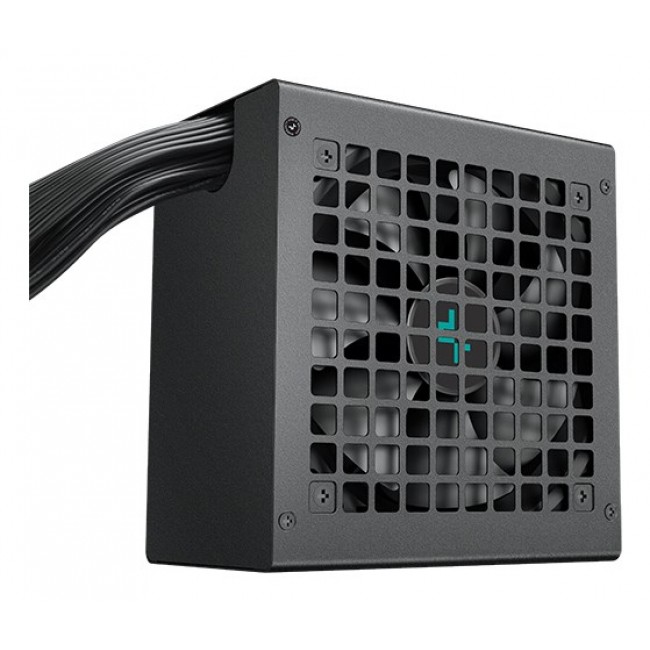

DeepCool PL800D power supply unit 800 W 20+4 pin ATX ATX Black
- Διαθεσιμότητα: Διαθέσιμο από 4-8 ημέρες
- Κατασκευαστής: DEEPCOOL
- Κωδικός: ZDLDECOBU0061
- Βάρος(kg): 2.44kg
- Διαστάσεις Συσκευασίας: 13.00cm x 28.00cm x 20.00cm
- EAN: 6933412721529
- ΚΩΔ. ΠΡΟΪΟΝΤΟΣ: 714064
102,39€
Χωρίς ΦΠΑ: 82,57€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 80 PLUS certification | 80 PLUS Bronze |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| ATX power connector (20+4 pin) | Yes |
| ATX version | 3.0 |
| Bearing technology | HYB |
| Cabling type | Non-Modular |
| Certification | CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Compliance certificates | RoHS WEEE |
| Cooling type | Active |
| CPU power connector (4+4 pin) | Yes |
| Depth | 140 mm |
| Efficiency | 85% |
| Fan diameter | 12 cm |
| Fan location | Top |
| Guarantee | G024M |
| Height | 86 mm |
| Hold time | 16 ms |
| Input current | 9 - 4.5 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Mean time between failures (MTBF) | 100000 h |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 6 |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 C |
| Package type | Box |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over power Over voltage No load operation Under voltage Over current Surge & inrush protection (SIP) Overheating Surge protection |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Purpose | PC |
| SATA power cable length | 650 mm 450 550 |
| Sustainability certificates | Triman ErP |
| Sustainability compliance | Yes |
| Total power | 800 W |
| Width | 150 mm |
