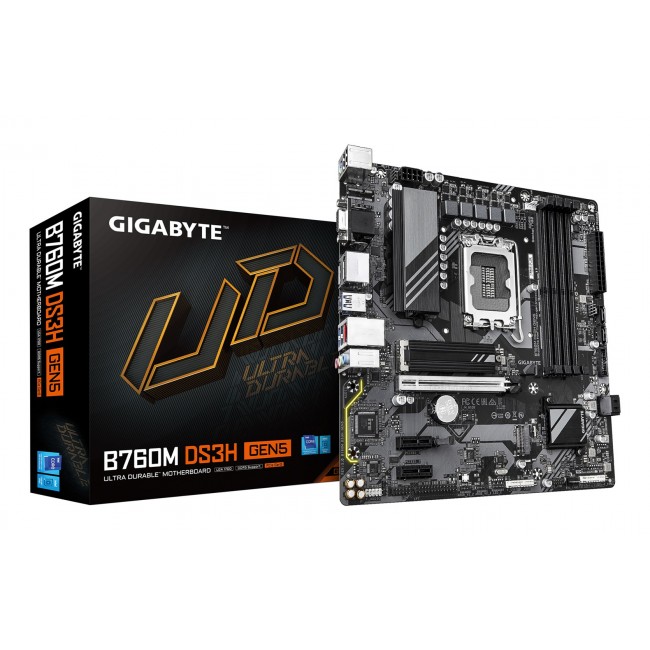

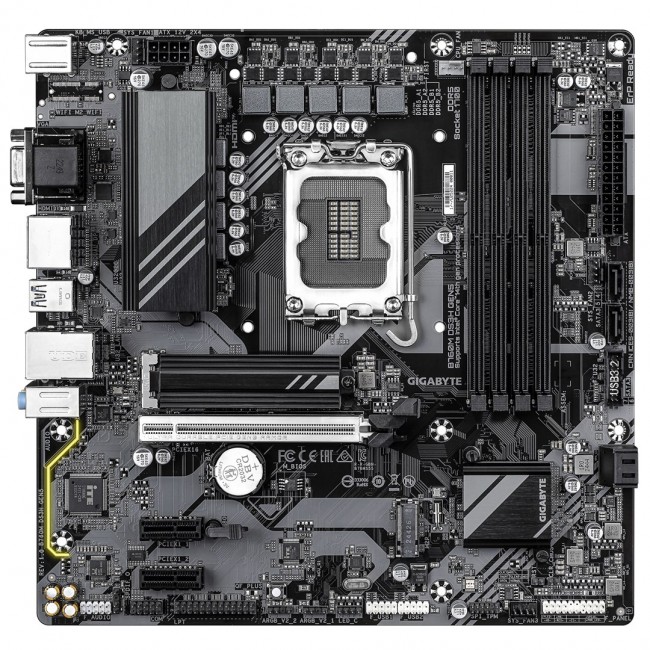

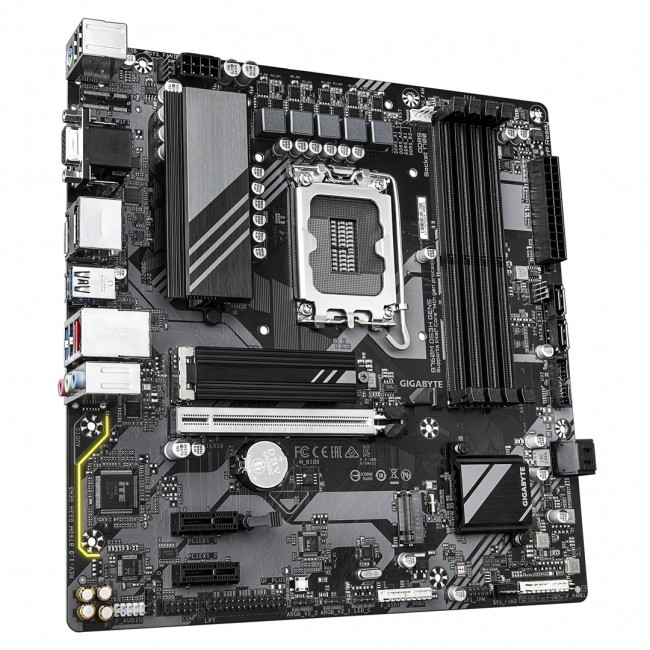

GIGABYTE B760M DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Gigabyte
- Κωδικός: PLYGIG1700079
- Βάρος(kg): 0.97kg
- Διαστάσεις Συσκευασίας: 5.50cm x 26.50cm x 27.00cm
- EAN: 4719331872793
154,47€
Χωρίς ΦΠΑ: 124,58€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i3 12th Gen Intel Core i5 12th Gen Intel Core i7 14th Gen Intel Core i3 14th Gen Intel Core i9 13th Gen Intel Celeron Intel Core i3 13th Gen Intel Pentium Gold Intel Core i7 12th Gen Intel Core i5 14th Gen Intel Core i7 13th Gen Intel Core i9 1 |
| Cooling type | Passive |
| CPU fan connector | Yes |
| Depth | 174 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Parallel connector | Yes |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan Voltage Temperature Water cooling |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 1 0 10 5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory clock speeds | 5600 5200 4400 4800 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Width | 244 mm |
| Windows operating systems supported | Windows 10 x64 Windows 11 x64 |
