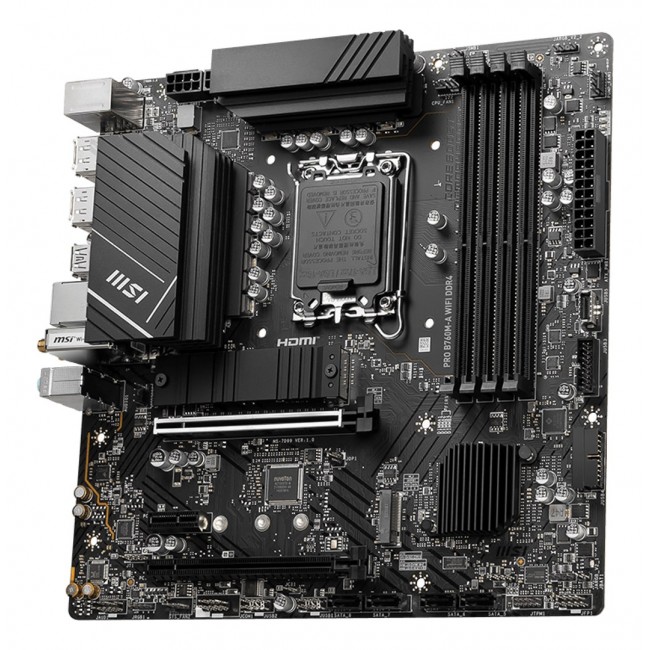

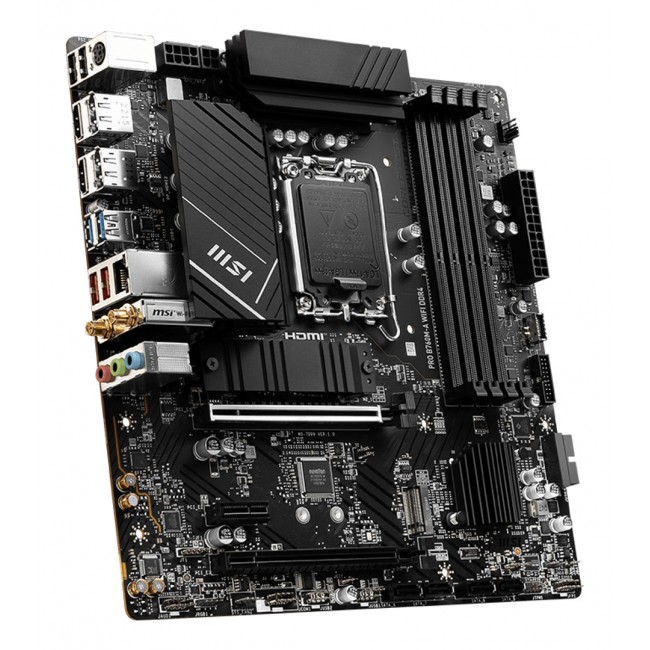

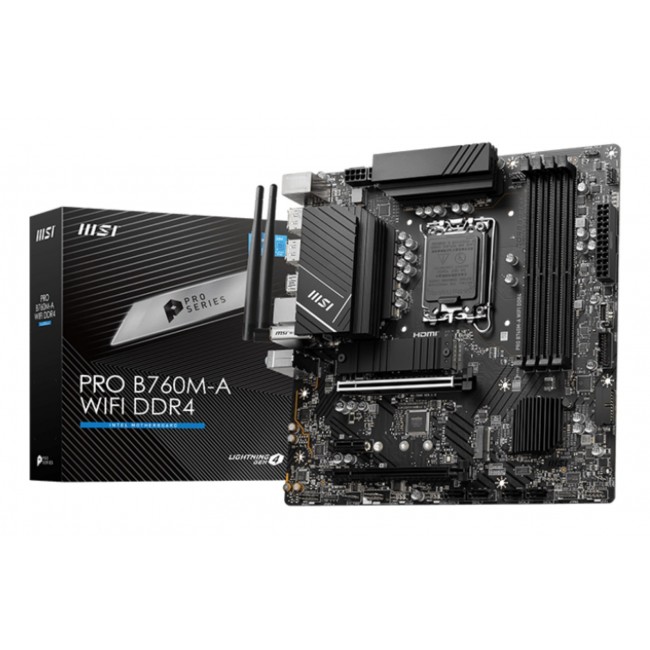

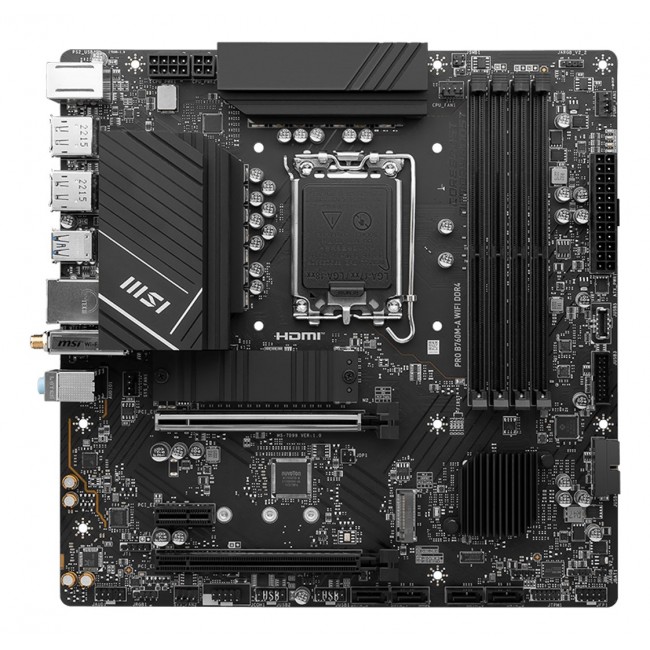

MSI PRO B760M-A WIFI DDR4 motherboard Intel B760 LGA 1700 micro ATX
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: MSI
- Κωδικός: PLYMIS1700037
- Βάρος(kg): 1.30kg
- Διαστάσεις Συσκευασίας: 30.00cm x 27.00cm x 5.50cm
- EAN: 4711377026383
168,25€
Χωρίς ΦΠΑ: 135,69€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Compatible processor series | Intel Pentium Gold Intel Celeron |
| CPU fan connector | Yes |
| Depth | 243.8 mm |
| DisplayPorts quantity | 2 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 2 |
| Maximum internal memory | 128 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Black |
| RAID levels | 0 5 10 1 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 3800 4600 2933 3600 MHz 5333 MHz 3733 4400 MHz 5000 2400 5066 2133 4200 3400 3200 MHz 2666 4266 4000 4800 3466 3333 5200 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| TPM connector | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. Before starting any maintenance or installation, disconnect the product from the power supply. Do not dispose of the motherboard in the ordinary rubbish bin the product requires specia |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11ad Wi-Fi 5 (802.11ac) Wi-Fi 6E (802.11ax) 802.11a Wi-Fi 6 (802.11ax) 802.11g 802.11b Wi-Fi 4 (802.11n) |
| Width | 243.8 mm |
| Windows operating systems supported | Windows 11 Windows 10 |
