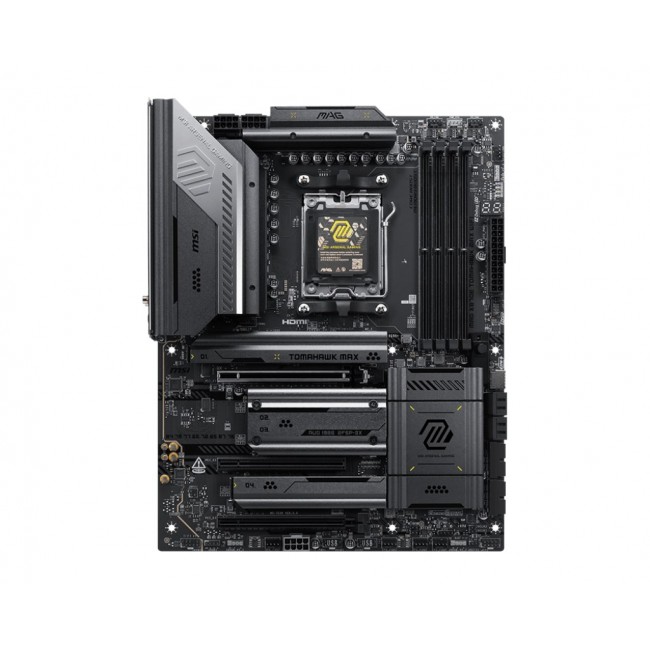

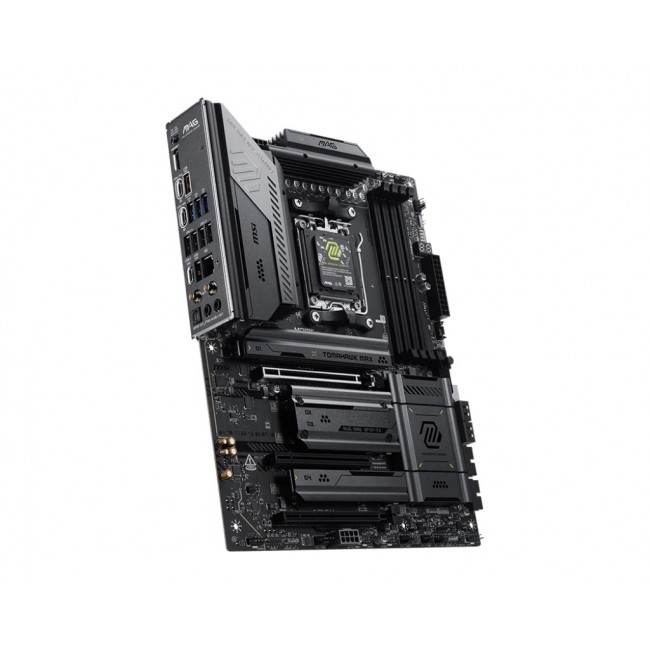

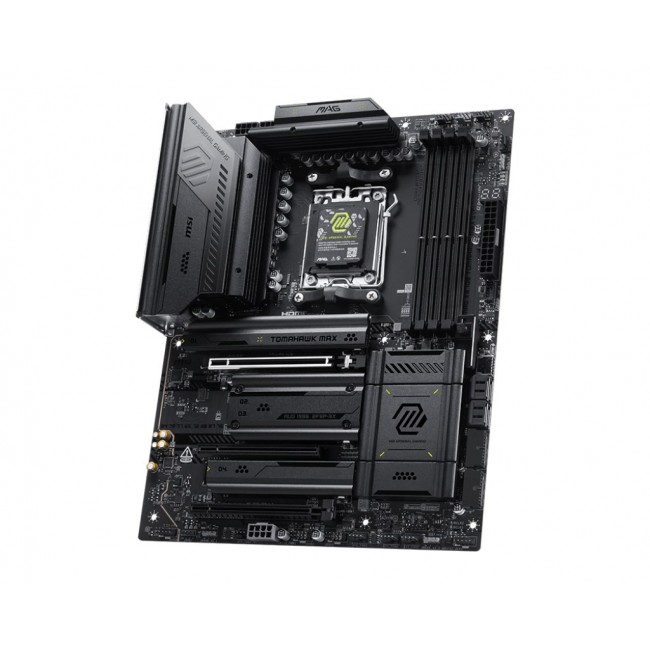

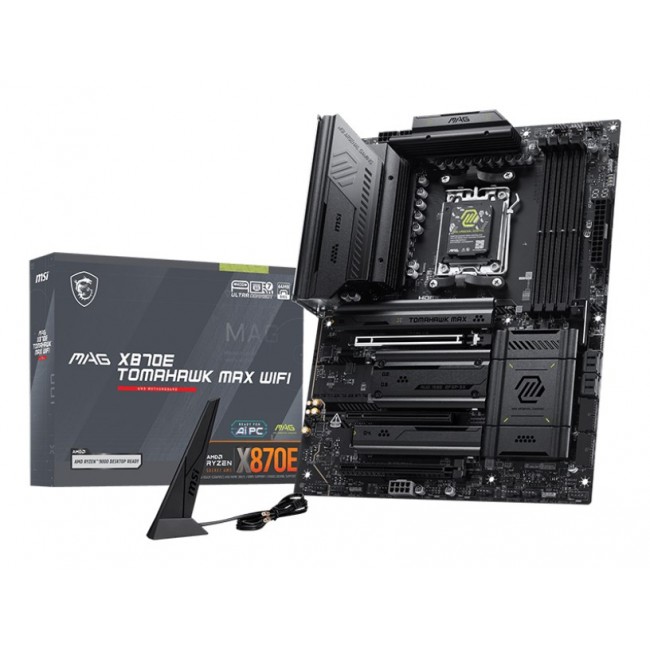

MSI MAG X870E TOMAHAWK MAX WIFI motherboard AMD X870E Socket AM5 ATX
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: MSI
- Κωδικός: WLONONWCRTHOL
- Βάρος(kg): 1.49kg
- Διαστάσεις Συσκευασίας: 30.50cm x 30.50cm x 30.50cm
- EAN: 4711377409063
463,32€
Χωρίς ΦΠΑ: 373,65€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| ACPI version | 6.5 |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Compatible processor series | AMD Ryzen 9000 Series AMD Ryzen 7000 Series AMD Ryzen 8000 Series |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 304.8 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G024M |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| LAN controller | Realtek RTL8126 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 8 |
| On-board graphics card | No |
| PC health monitoring | Fan Temperature Voltage CPU |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black |
| RAID levels | 1 10 0 |
| RAID support | Yes |
| S/PDIF out port | Yes |
| Supported memory clock speed (max) | 8400 MHz |
| Supported memory clock speeds | 8400 MHz 4800 5600 6400 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 3.7 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Total number of SATA connectors | 4 |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n) Wi-Fi 5 (802.11ac) Wi-Fi 7 (802.11be) Wi-Fi 6E (802.11ax) 802.11g 802.11a Wi-Fi 6 (802.11ax) 802.11b |
| Width | 243.8 mm |
