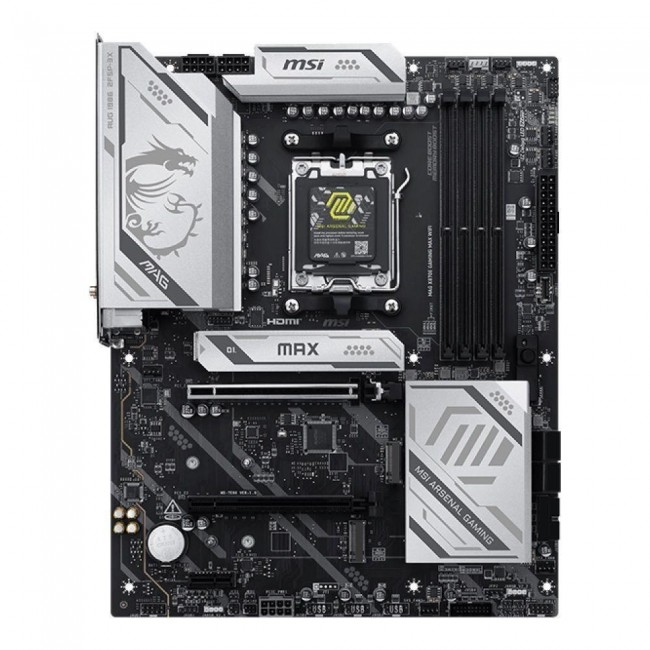

MSI MAG X870E GAMING MAX Motherboard WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX
- Διαθεσιμότητα: Διαθέσιμο από 4-8 ημέρες
- Κατασκευαστής: MSI
- Κωδικός: PLYMISAM50050
- Βάρος(kg): 1.99kg
- Διαστάσεις Συσκευασίας: 7.10cm x 34.50cm x 27.00cm
- EAN: 4711377407199
319,35€
Χωρίς ΦΠΑ: 257,54€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Compatible processor series | AMD Ryzen 7000 Series AMD Ryzen 9000 Series AMD Ryzen 8000 Series |
| CPU fan connector | Yes |
| Depth | 304.8 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| LAN controller | Realtek RTL8126 |
| Maximum internal memory | 256 GB |
| Maximum internal memory supported by processor | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD X870 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 7 |
| On-board graphics card | No |
| PC health monitoring | CPU Fan Voltage Temperature |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| S/PDIF out port | No |
| Supported memory clock speed (max) | 8200+ MHz |
| Supported memory clock speeds | 6400 6200 6000 6800 MHz 7400 6600 5200 MHz 7600 7800 8000 MHz 5800 5400 4800 5000 7000 MHz 8200 MHz 5600 7200 |
| Supported memory types | DDR5 DIMM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Total number of SATA connectors | 4 |
| USB 2.0 connectors | 10 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 1 |
| Warnings | Avoid contact with liquids to prevent electronic damage. Do not disassemble to avoid damage to internal components and loss of warranty. Dispose of in accordance with local regulations for electronic waste. |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) Wi-Fi 7 (802.11be) 802.11a Wi-Fi 6 (802.11ax) 802.11b 802.11g Wi-Fi 4 (802.11n) Wi-Fi 6E (802.11ax) |
| Width | 243.8 mm |
