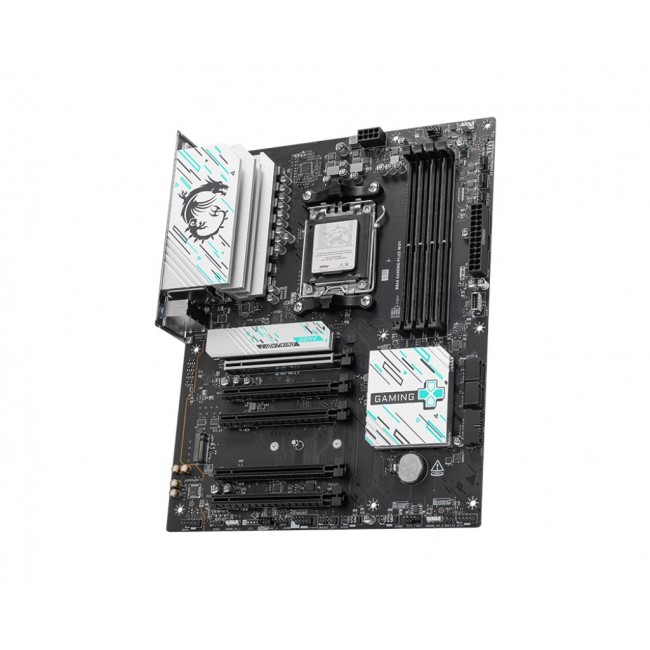

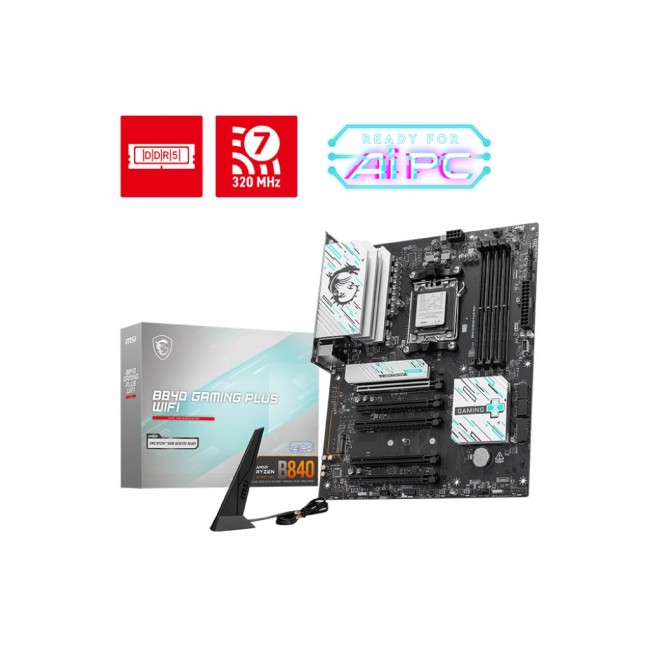

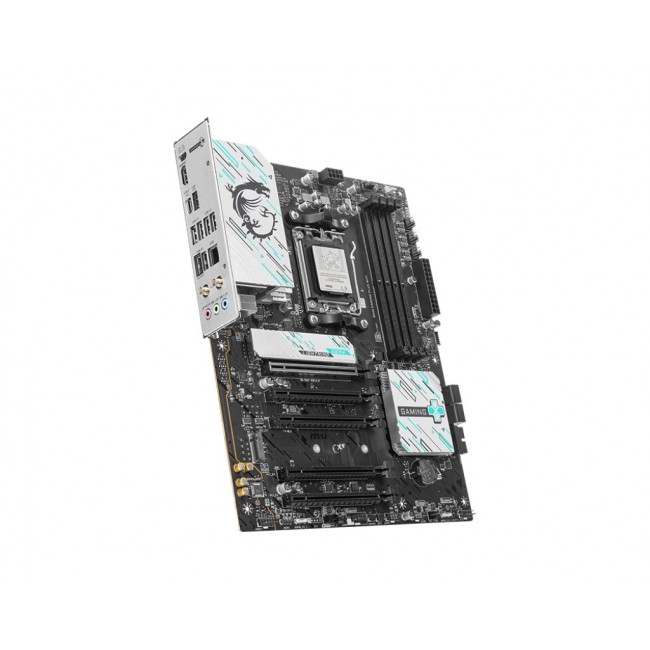

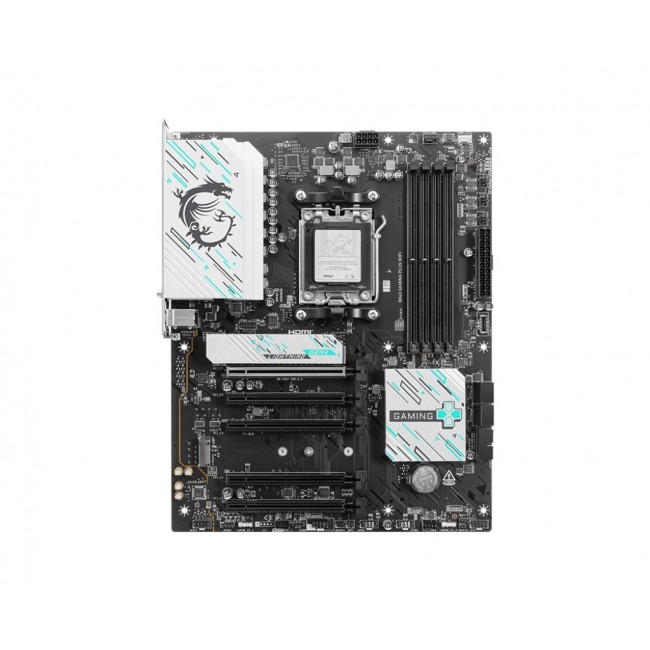

MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: MSI
- Κωδικός: PLYMISAM50030
- Βάρος(kg): 1.60kg
- Διαστάσεις Συσκευασίας: 7.50cm x 34.50cm x 27.50cm
- EAN: 4711377286589
201,74€
Χωρίς ΦΠΑ: 162,69€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Compatible processor series | AMD Ryzen 7000 Series AMD Ryzen 9000 Series AMD Ryzen 8000 Series |
| Depth | 304.8 mm |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 256 GB |
| Maximum internal memory supported by processor | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD B840 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 5 |
| Number of CPU fan connectors | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Number of water pump connectors | 1 |
| PC health monitoring | Voltage CPU Temperature Fan |
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black |
| RAID levels | 1 10 0 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory clock speeds | 8000 4800 5600 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, Micro SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Total number of SATA connectors | 4 |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a Wi-Fi 6 (802.11ax) 802.11b Wi-Fi 5 (802.11ac) Wi-Fi 7 (802.11be) 802.11g Wi-Fi 4 (802.11n) Wi-Fi 6E (802.11ax) |
| Width | 243.8 mm |
| Windows operating systems supported | Windows 11 x64 |
