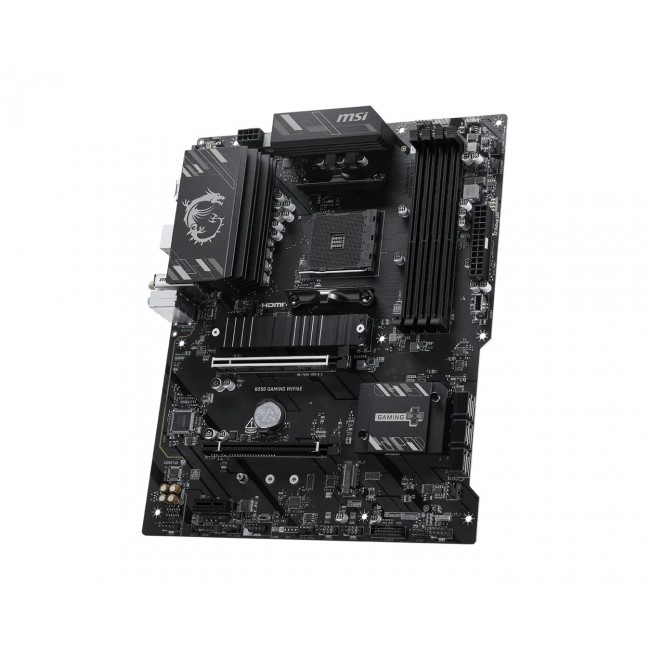

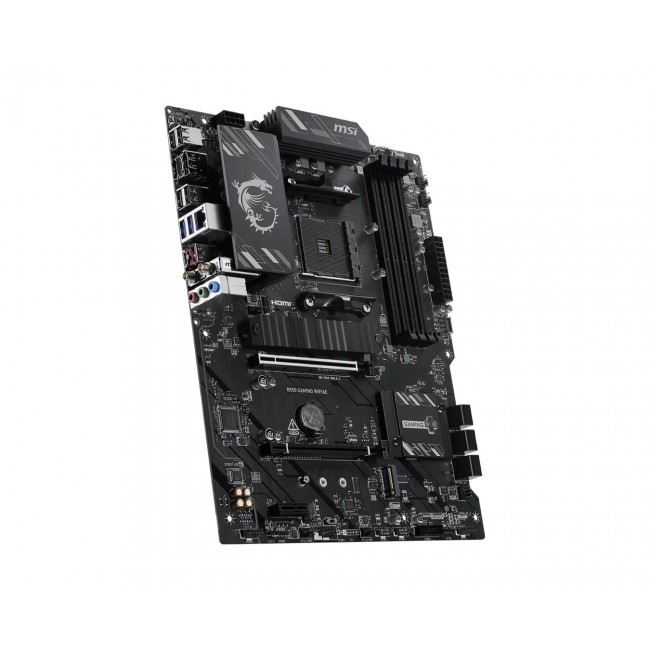

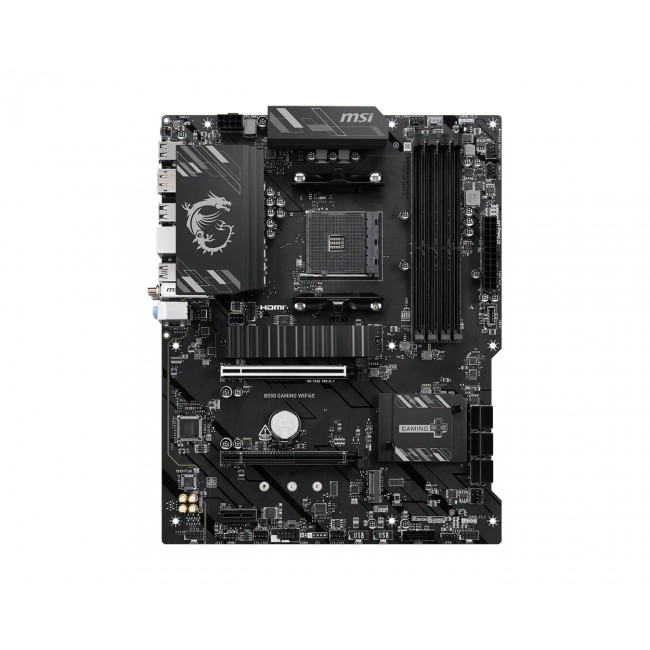

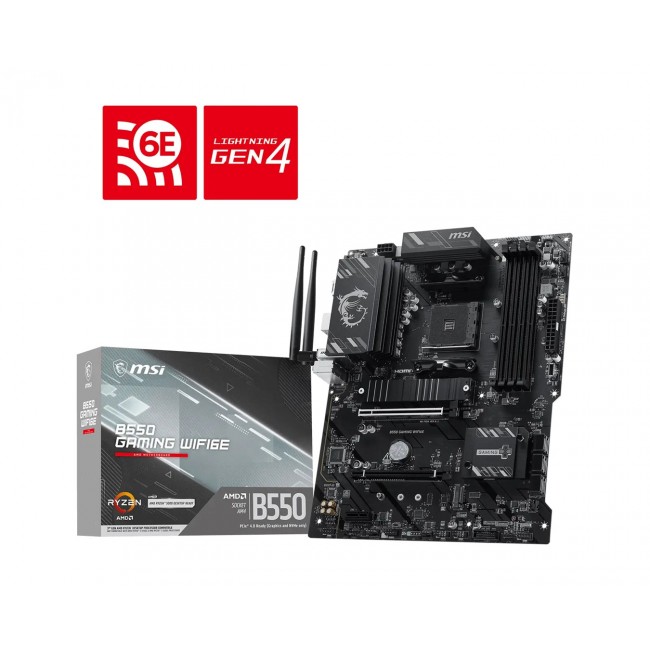

MSI B550 GAMING WIFI6E motherboard AMD B550 Socket AM4
- Διαθεσιμότητα: Διαθέσιμο από 4-8 ημέρες
- Κατασκευαστής: MSI
- Κωδικός: PLYMISAM40115
- Βάρος(kg): 1.48kg
- Διαστάσεις Συσκευασίας: 7.20cm x 34.50cm x 27.00cm
- EAN: 4711377459082
172,39€
Χωρίς ΦΠΑ: 139,03€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 2280 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Compatible processor series | AMD Ryzen 5000 Series AMD Ryzen 3000 Series AMD Ryzen 4000 G-Series |
| CPU fan connector | Yes |
| Depth | 304.8 mm |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| LAN controller | Realtek 8111H |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4000 |
| Number of SATA connectors | 6 |
| Number of SATA III connectors | 6 |
| Number of storage drives supported | 8 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 slots | 2 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| RGB LED pin header | Yes |
| Supported memory clock speed (max) | 4800 MHz |
| Supported memory clock speeds | 2933 3600 4733 4600 3466 2800 3000 4533 4866 MHz 2667 3733 4400 3066 3866 4133 4000 4800 3200 4266 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 3.0, SATA |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Total number of SATA connectors | 6 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Width | 243.8 mm |
