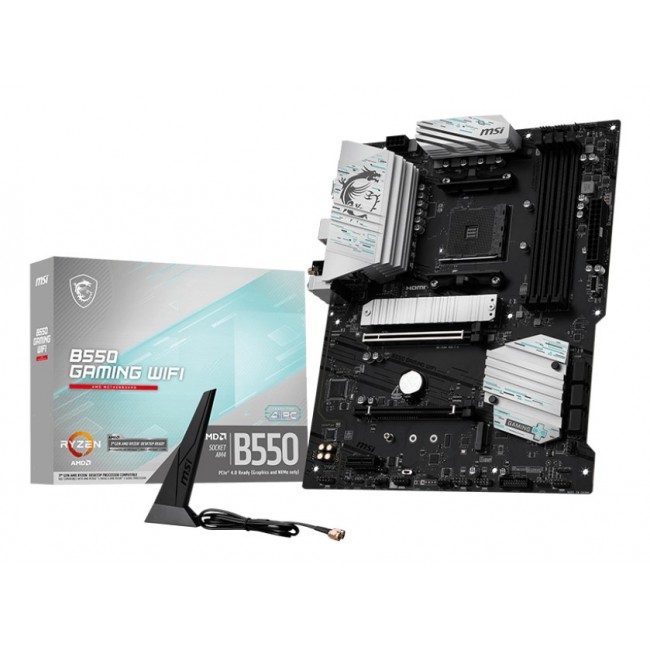

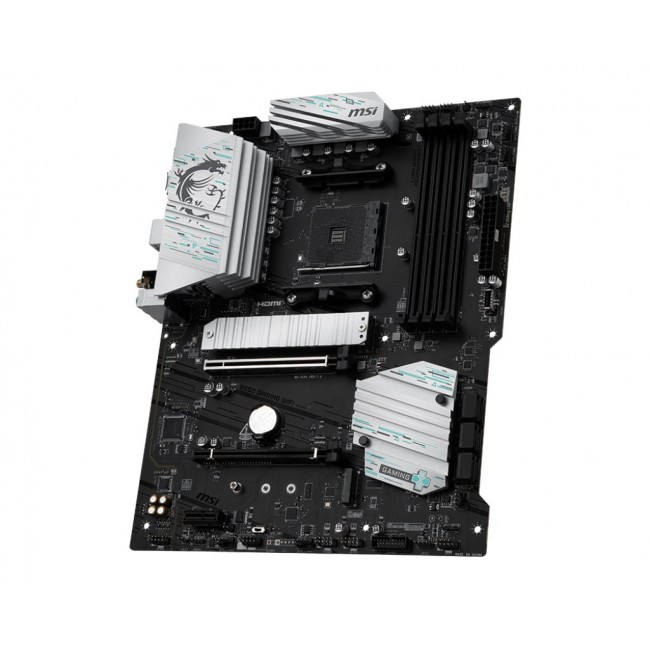

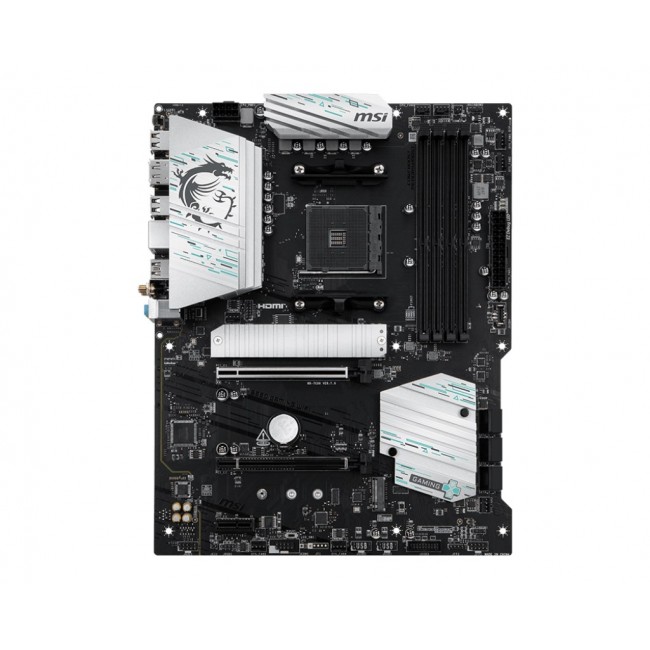

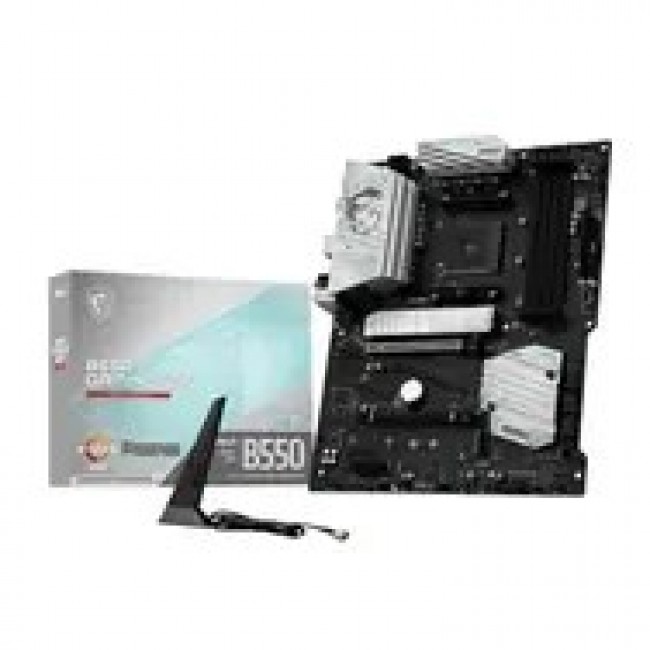

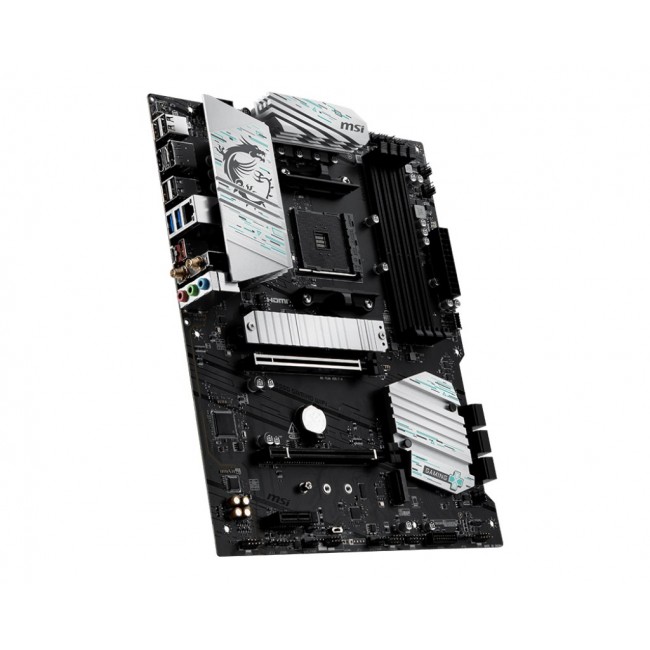

MSI B550 GAMING WIFI motherboard AMD B550 Socket AM4 ATX
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: MSI
- Κωδικός: WLONONWCRPOR5
- Βάρος(kg): 1.64kg
- Διαστάσεις Συσκευασίας: 34.50cm x 9.00cm x 27.40cm
- EAN: 4711377376143
224,18€
Χωρίς ΦΠΑ: 180,79€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 2280 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 5000 Series AMD Ryzen 7000 Series AMD Ryzen 3000 Series |
| CPU fan connector | Yes |
| Depth | 243.8 mm |
| Digital audio optical out | 1 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G024M |
| Harmonized System (HS) code | 84733020 |
| HDMI ports quantity | 1 |
| LAN controller | Realtek 8111H |
| Legal guarantee | 3 year(s) |
| Maximum internal memory | 128 GB |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 6 |
| Number of HDDs supported | 6 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| Number of storage drives supported | 8 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan CPU Temperature |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| PS/2 ports quantity | 1 |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Supported memory clock speed (max) | 2667 MHz |
| Supported memory clock speeds | 4866 MHz 3200 4266 2800 2667 3733 4400 3066 3466 3000 4133 4000 4800 3866 2933 3600 4733 4600 4533 |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive interfaces | SATA III, M.2 |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Total number of SATA connectors | 6 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB connector type | USB Type-A USB Type-C |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Width | 304 mm |
| WiFi-AP antenna jack | 2 |
