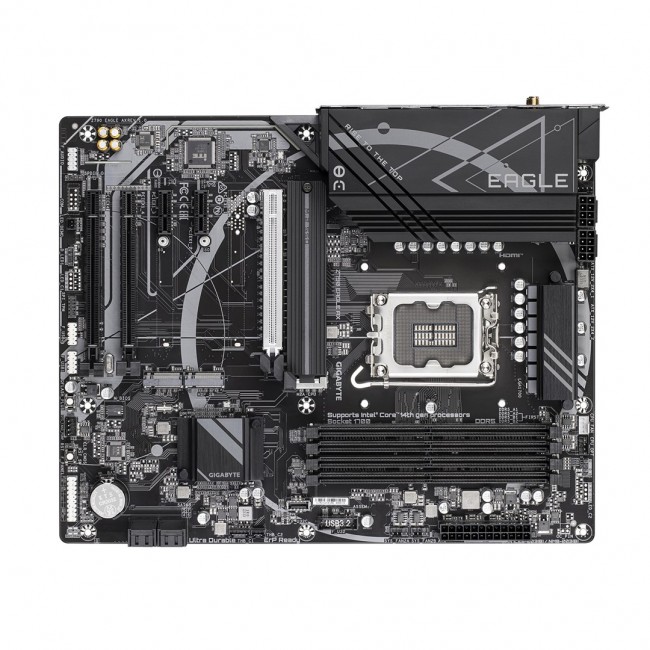

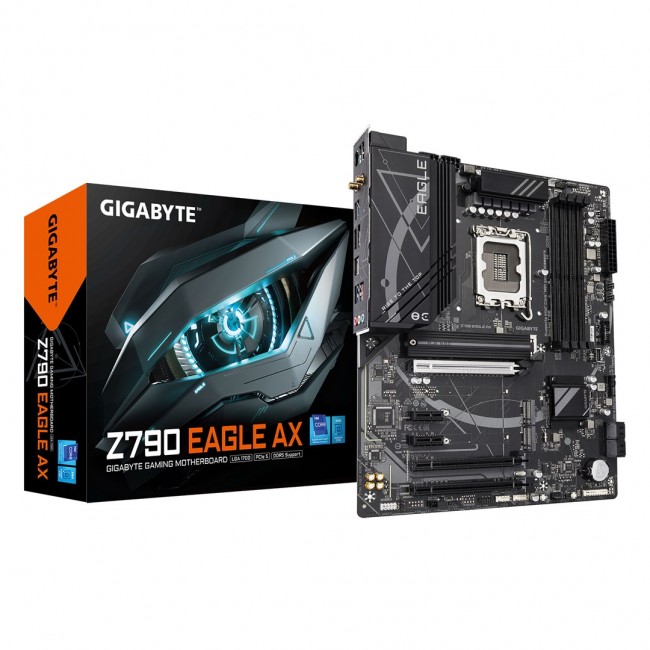

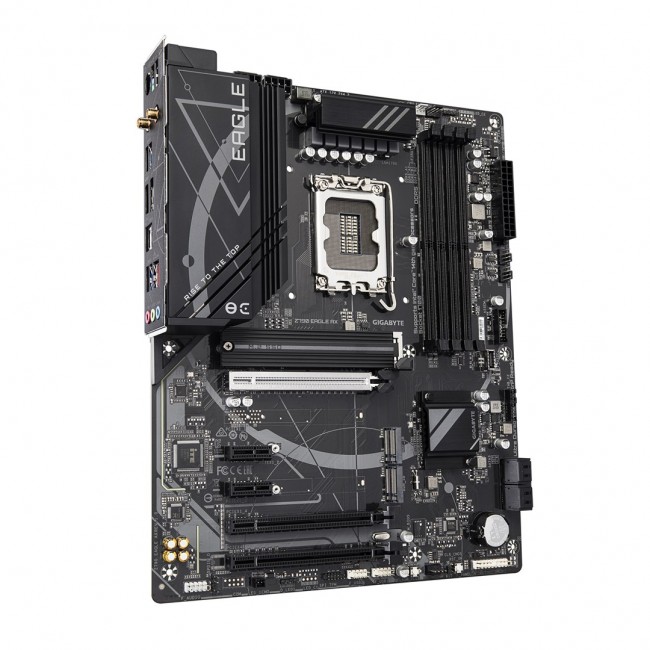

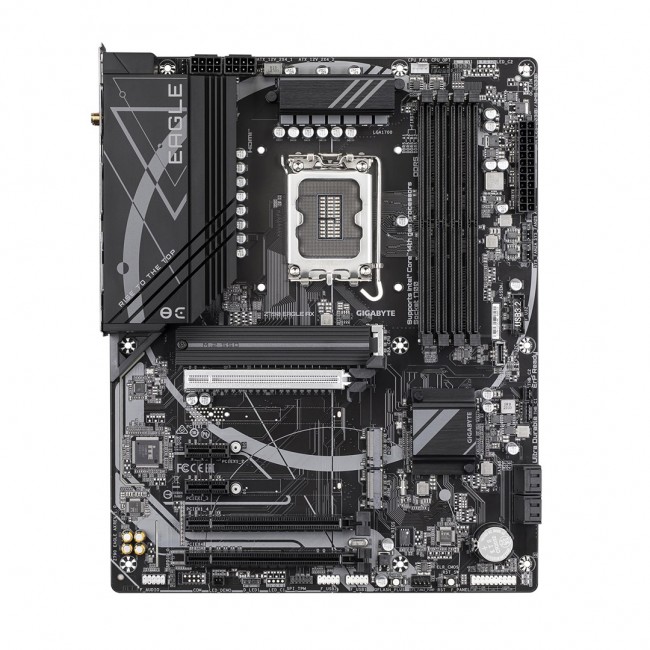

GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+ Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Gigabyte
- Κωδικός: PLYGIG1700068
- Βάρος(kg): 1.64kg
- Διαστάσεις Συσκευασίας: 33.00cm x 8.00cm x 27.00cm
- EAN: 4719331860998
- ΚΩΔ. ΠΡΟΪΟΝΤΟΣ: 778790
235,33€
Χωρίς ΦΠΑ: 189,78€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Cables included | SATA |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i3 Intel Core i7 Intel Core i9 Intel Pentium Gold Intel Core i5 Intel Celeron |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 192 GB |
| Maximum internal memory supported by processor | 192 GB |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel Z790 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of battery cells | 1 |
| Number of EATX power connectors | 2 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 7 |
| On-board graphics card | No |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.81 kg |
| Package width | 335 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan Water cooling Temperature Voltage |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Bronze |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 0 1 10 5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 6200 6600 5600 7200 6800 7000 7600 MHz 5800 5400 4400 7400 6400 5200 6000 4800 |
| Supported memory module capacities | 12GB 8GB 16GB 48GB 1GB 2GB 4GB 32GB |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-C USB Type-A |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. Avoid direct contact with electronics to prevent electrostatic damage. Do not dispose of the motherboard in the ordinary rubbish bin the product requires specia |
| Warranty period | 3 year(s) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a Wi-Fi 6 (802.11ax) Wi-Fi 4 (802.11n) 802.11b Wi-Fi 5 (802.11ac) Wi-Fi 6E (802.11ax) 802.11g |
| Width | 305 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 11 x64 Windows 10 x64 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
