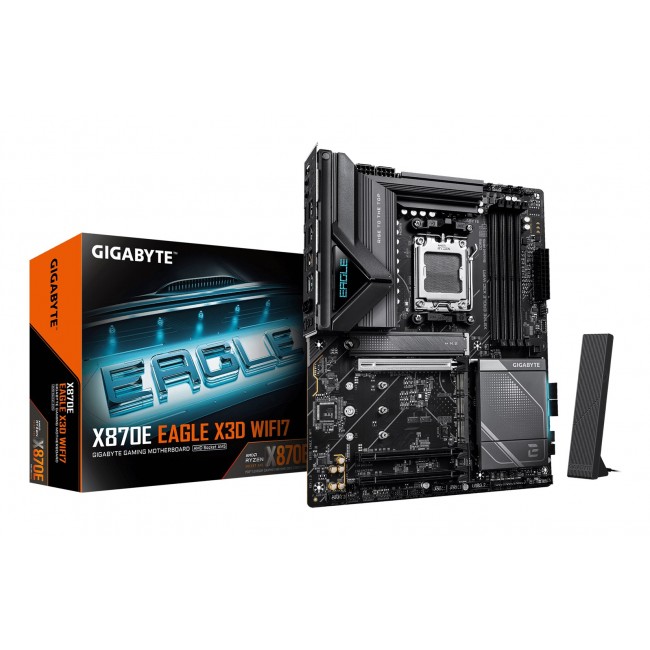

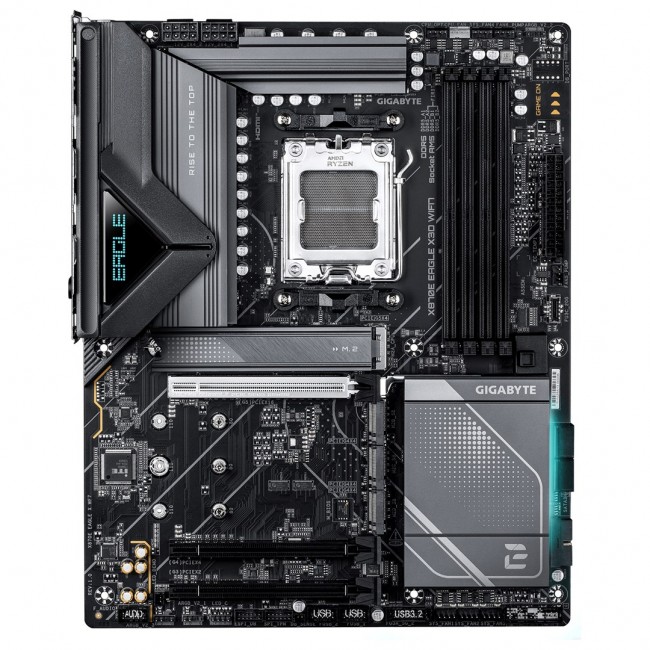

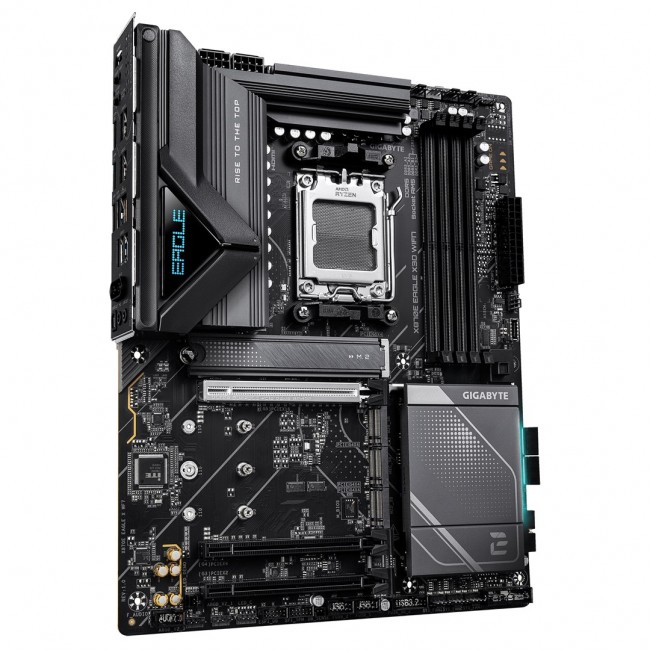

GIGABYTE X870E EAGLE X3D WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: Gigabyte
- Κωδικός: WLONONWCRPNCA
- Βάρος(kg): 2.13kg
- Διαστάσεις Συσκευασίας: 7.00cm x 27.50cm x 34.50cm
- EAN: 4719331879532
416,22€
Χωρίς ΦΠΑ: 335,66€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| ACPI version | 5.0 |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Bundled software | Norton Internet Security (OEM version) |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| Component for | PC |
| Cooling type | Passive |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| Digital audio optical out | 1 |
| DirectX version | 12.0 |
| DisplayPort version | 1.4 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Fast Ethernet 2.5 Gigabit Ethernet Gigabit Ethernet 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G024M |
| HDCP | Yes |
| HDCP version | 2.3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| LAN controller | Realtek RTL8126 |
| Line-in | Yes |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 6 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 4 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 8 |
| Number of temperature sensor headers | 2 |
| Number of water pump connectors | 3 |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.21 kg |
| Package width | 335 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | CPU Water cooling Temperature Fan Voltage |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black |
| Products per shipping (inner) case | 1 pc(s) |
| RAID levels | 5 10 1 0 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Screws included | Yes |
| Supported memory clock speed (max) | 9000 MHz |
| Supported memory clock speeds | 6600 7000 8000 4400 7600 7800 8800 9000 6200 4800 6000 8600 6400 6800 5200 8400 5600 7200 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Warranty period | 3 year(s) |
| Weight | 2.01 kg |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11g Wi-Fi 6E (802.11ax) Wi-Fi 4 (802.11n) 802.11a Wi-Fi 6 (802.11ax) Wi-Fi 5 (802.11ac) Wi-Fi 7 (802.11be) 802.11b |
| Width | 305 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 11 x64 |
| WLAN controller model | Qualcomm QCNCM865 |
