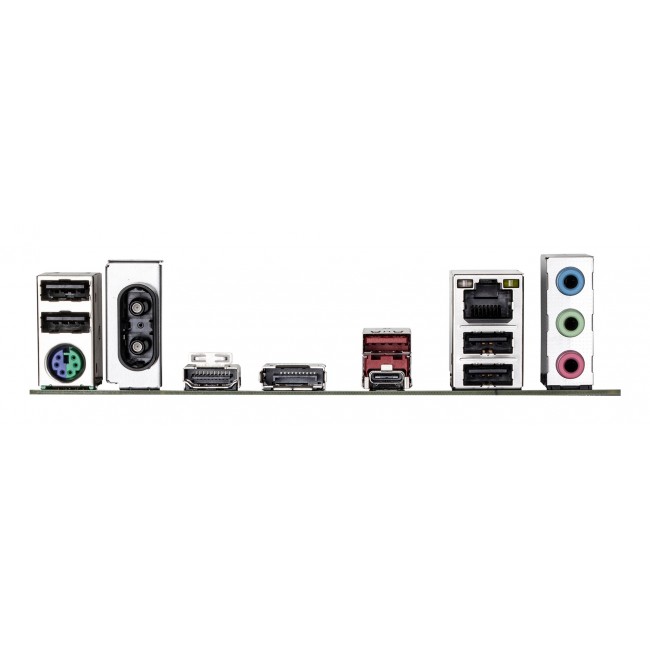

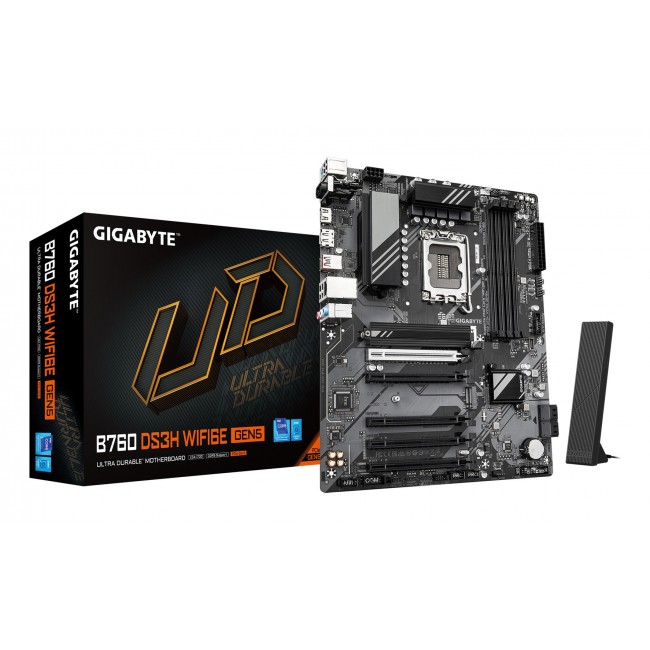

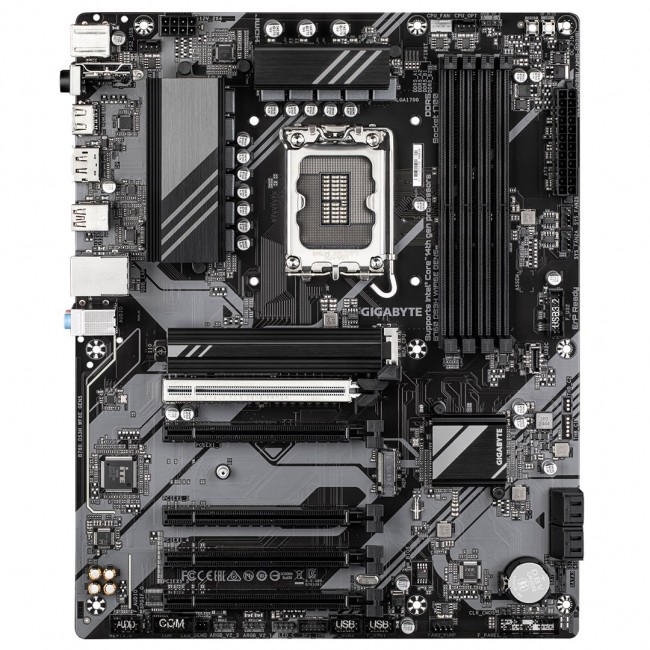

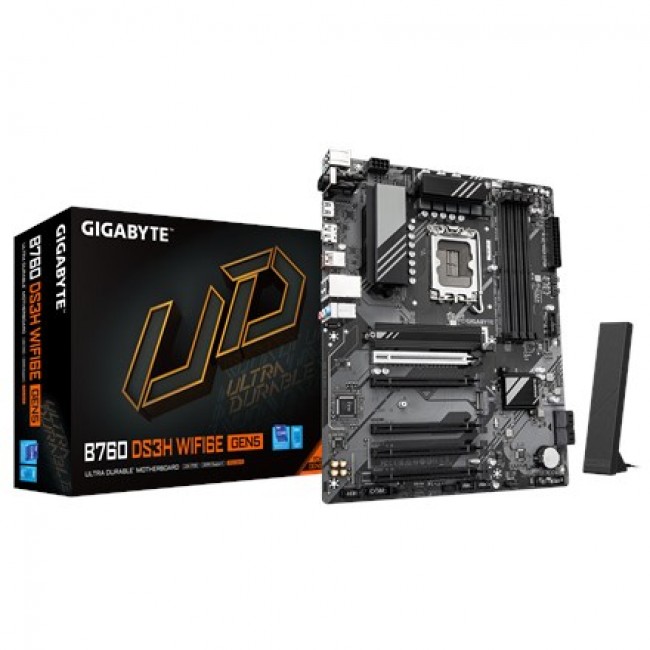

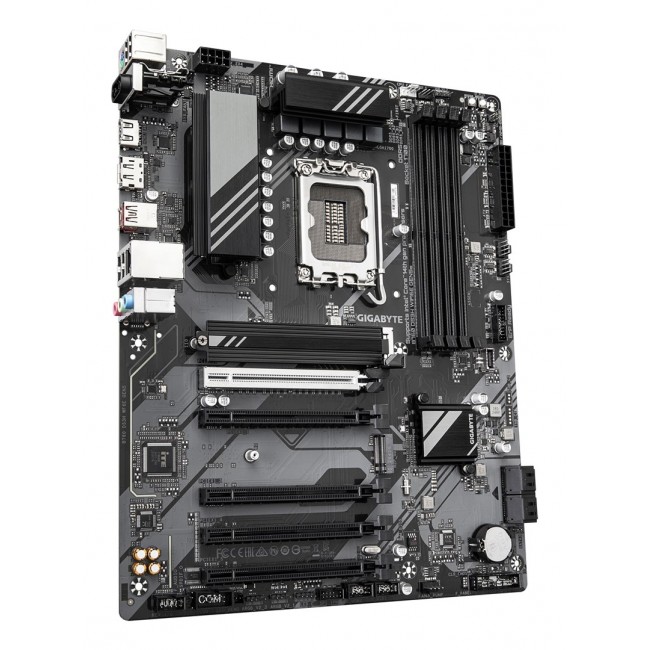

GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 2x2
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: Gigabyte
- Κωδικός: WLONONWCRORNH
- Βάρος(kg): 1.23kg
- Διαστάσεις Συσκευασίας: 26.50cm x 5.40cm x 26.50cm
- EAN: 4719331872939
207,16€
Χωρίς ΦΠΑ: 167,07€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| ACPI version | 5.0 |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i3 13th Gen Intel Core i5 13th Gen Intel Core i9 12th Gen Intel Core i3 12th Gen Intel Core i9 13th Gen Intel Celeron Intel Pentium Gold Intel Core i7 12th Gen Intel Core i5 14th Gen Intel Core i5 12th Gen Intel Core i7 14th Gen Intel Core i7 1 |
| Component for | PC |
| Cooling type | Passive |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G024M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Number of water pump connectors | 2 |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.55 kg |
| Package width | 335 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | Temperature Water cooling Voltage Fan |
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Dark brown |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 5 10 0 1 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Screws included | Yes |
| Serial port headers | 1 |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory clock speeds | 5200 4800 4400 5600 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Warranty period | 3 year(s) |
| Weight | 1.31 kg |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a Wi-Fi 6 (802.11ax) Wi-Fi 6E (802.11ax) 802.11g Wi-Fi 4 (802.11n) Wi-Fi 5 (802.11ac) 802.11b |
| Width | 305 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 11 x64 Windows 10 x64 |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
