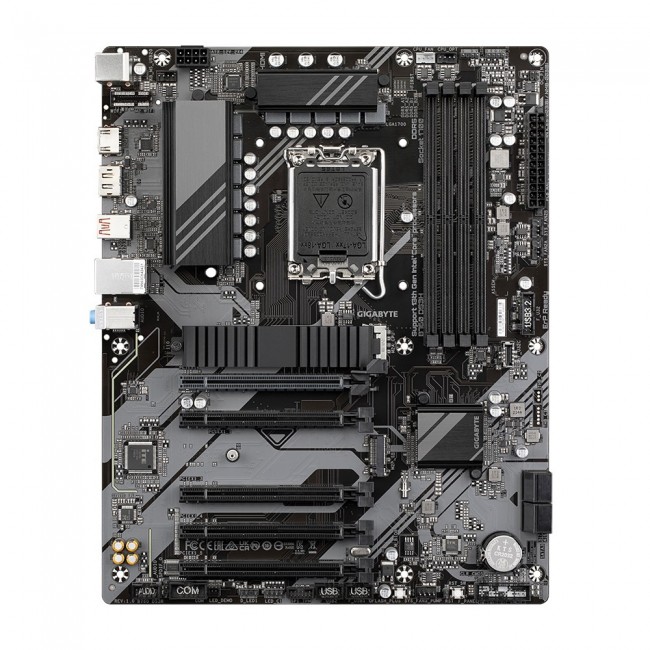

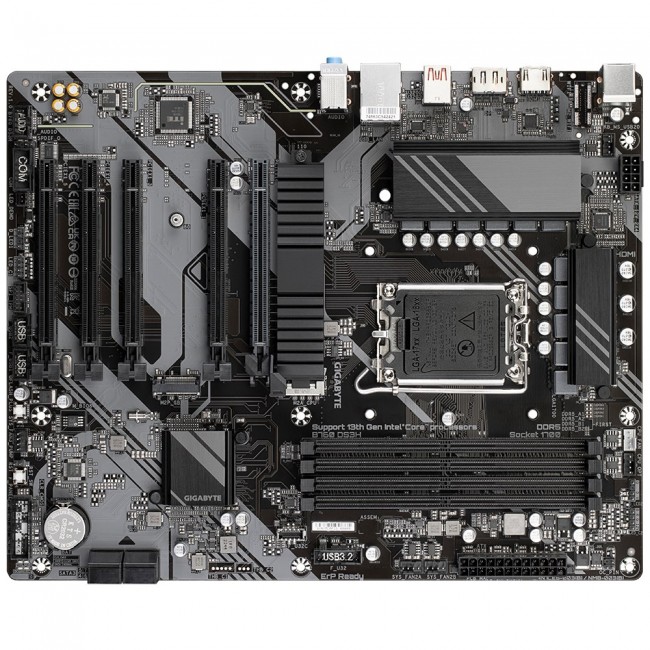

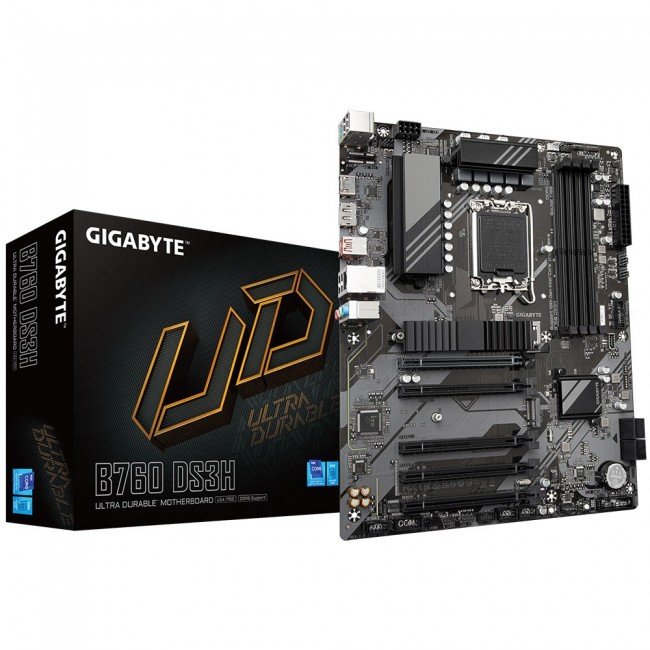

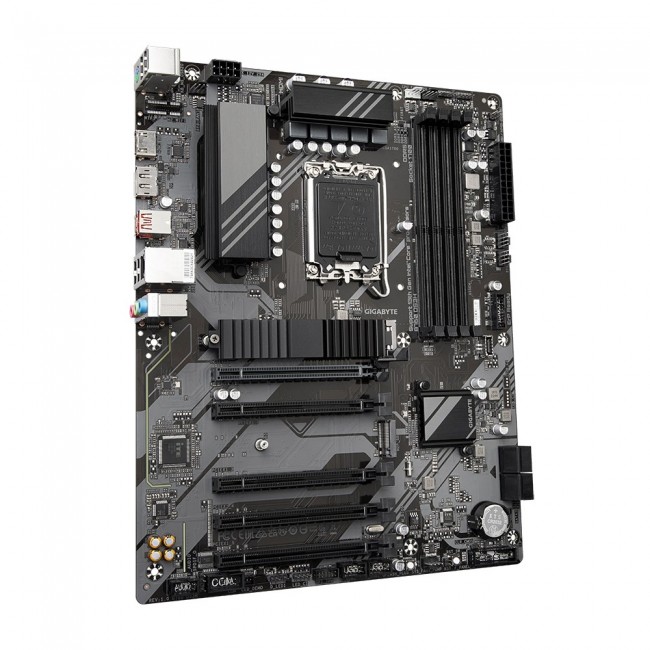

GIGABYTE B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2x2
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Gigabyte
- Κωδικός: PLYGIG1700061
- Βάρος(kg): 1.27kg
- Διαστάσεις Συσκευασίας: 8.00cm x 27.00cm x 34.00cm
- EAN: 4719331853136
- ΚΩΔ. ΠΡΟΪΟΝΤΟΣ: 734562
158,30€
Χωρίς ΦΠΑ: 127,66€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i5 Intel Celeron Intel Core i7 Intel Core i9 Intel Pentium Gold Intel Core i3 |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 3 |
| Height | 35 mm |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 256 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of battery cells | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.51 kg |
| Package width | 335 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | Temperature Voltage Fan Water cooling |
| PCI Express x16 slots | 5 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Bronze |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 1 0 5 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 4000 4800 MHz 5800 5400 7000 5200 MHz 6400 6000 7400 5600 7200 6600 7600 6800 6200 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-A USB Type-C |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. Do not dispose of the motherboard in the ordinary rubbish bin the product requires special disposal. |
| Warranty period | 3 year(s) |
| Wi-Fi | No |
| Width | 305 mm |
| Windows operating systems supported | Windows 11 x64 Windows 10 x64 |
