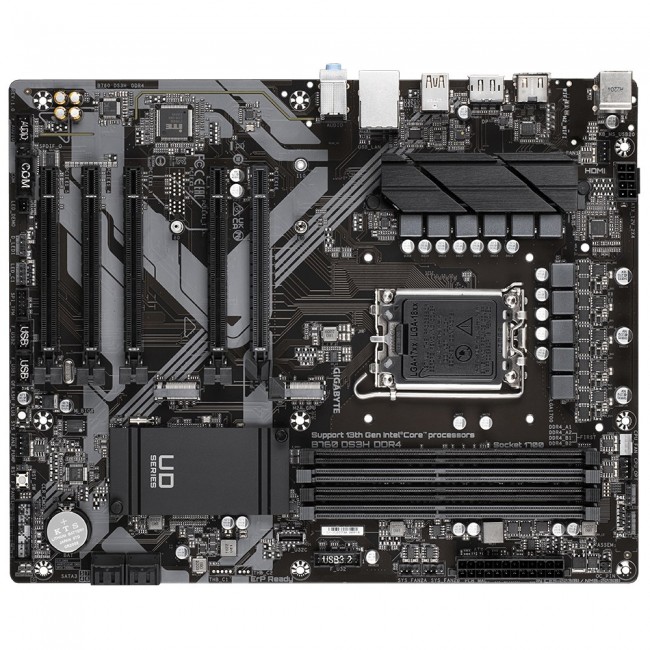

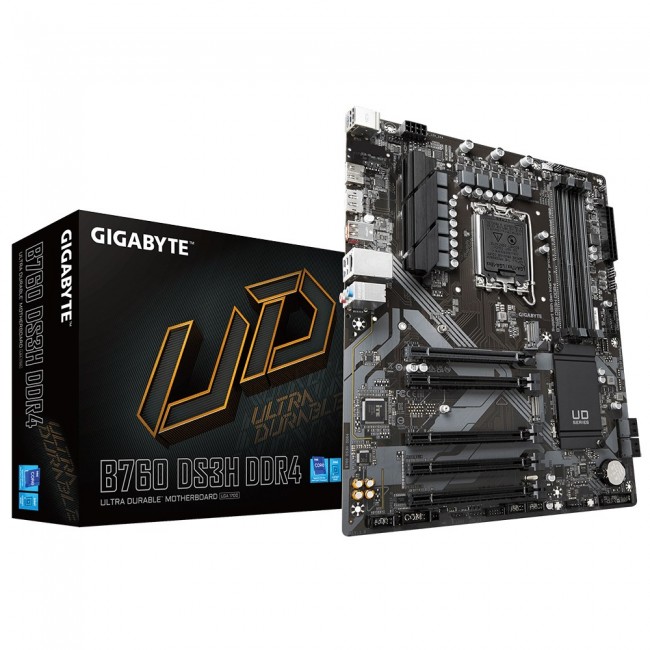

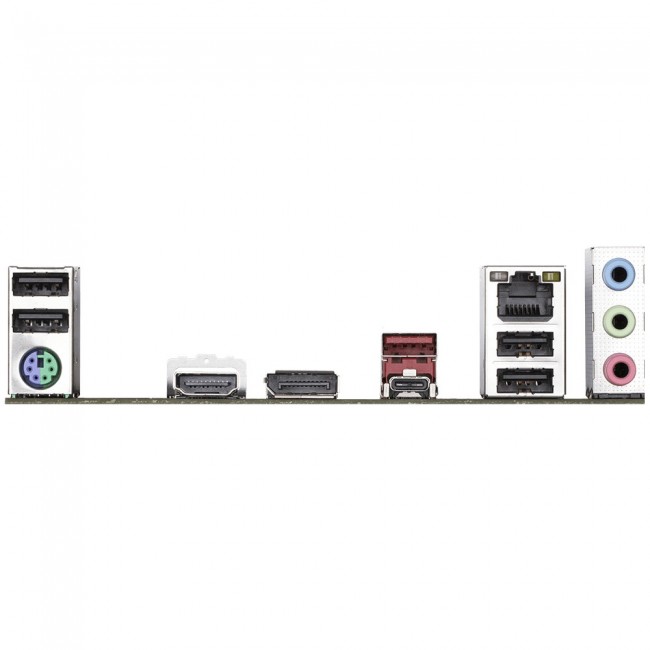

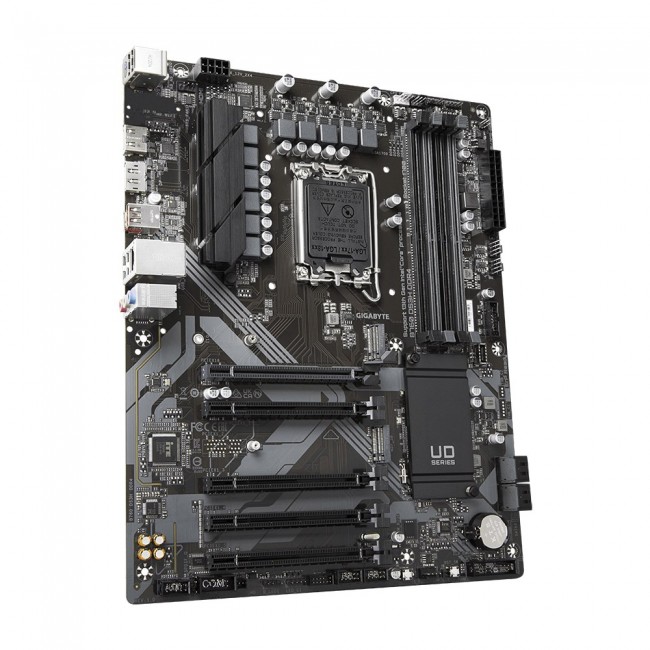

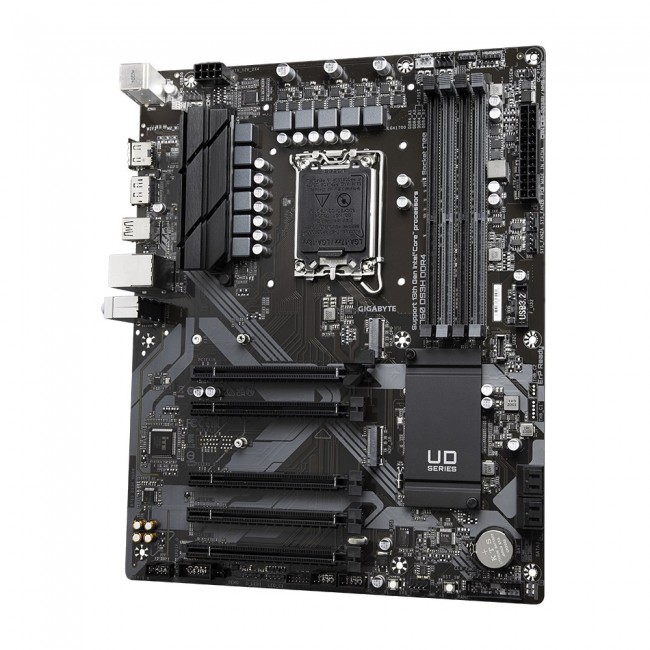

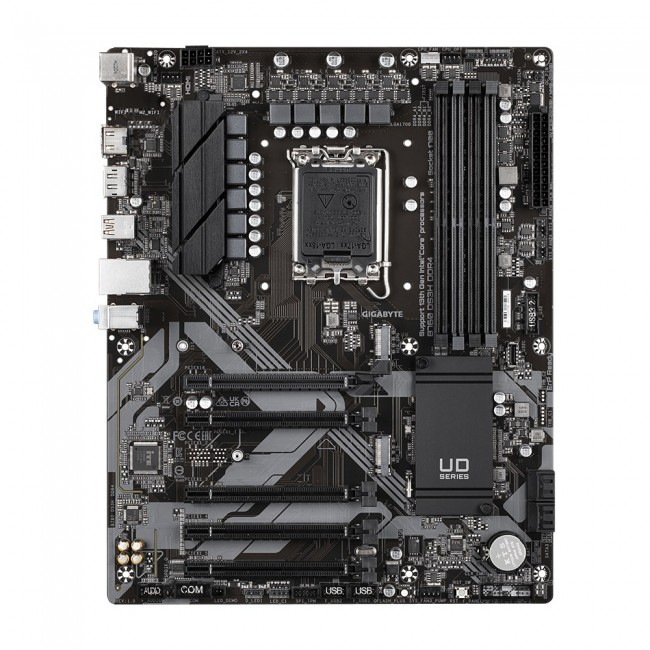

Gigabyte B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Gigabyte
- Κωδικός: PLYGIG1700043
- Βάρος(kg): 1.23kg
- Διαστάσεις Συσκευασίας: 27.40cm x 34.30cm x 8.50cm
- EAN: 4719331850746
- ΚΩΔ. ΠΡΟΪΟΝΤΟΣ: 736026
147,91€
Χωρίς ΦΠΑ: 119,29€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i3 Intel Core i7 Intel Core i9 Intel Pentium Gold Intel Core i5 Intel Celeron |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 3 |
| Height | 35 mm |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 128 GB |
| Maximum internal memory supported by processor | 128 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of battery cells | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.31 kg |
| Package width | 335 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | Voltage Water cooling Fan Temperature |
| PCI Express x16 slots | 5 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 0 1 10 5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 3200 2666 4266 3733 4300 4400 5000 3800 3333 4600 4500 3466 2933 MHz 3600 3300 5133 3400 3866 2400 4700 3000 5333 MHz 4133 4000 3666 4800 4933 2133 |
| Supported memory module capacities | 8GB 12GB 32GB 1GB 16GB 2GB 4GB |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-C USB Type-A |
| Warranty period | 3 year(s) |
| Wi-Fi | No |
| Width | 305 mm |
| Windows operating systems supported | Windows 10 x64 Windows 11 x64 |
