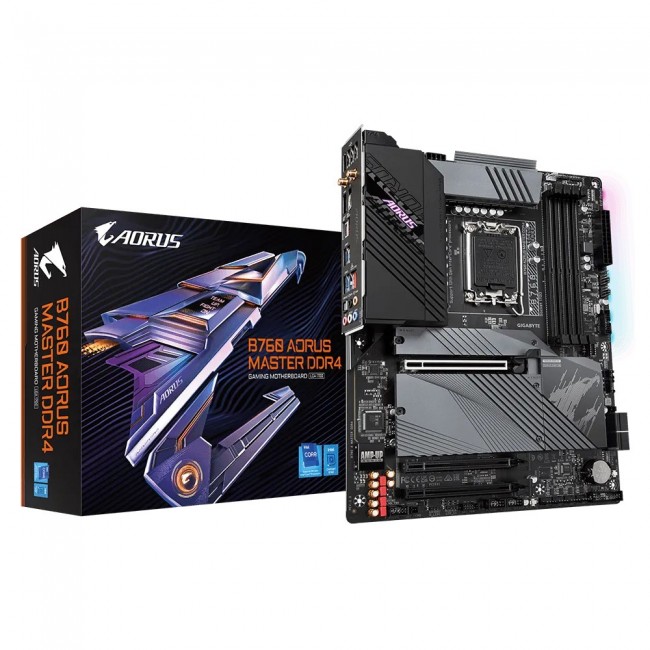

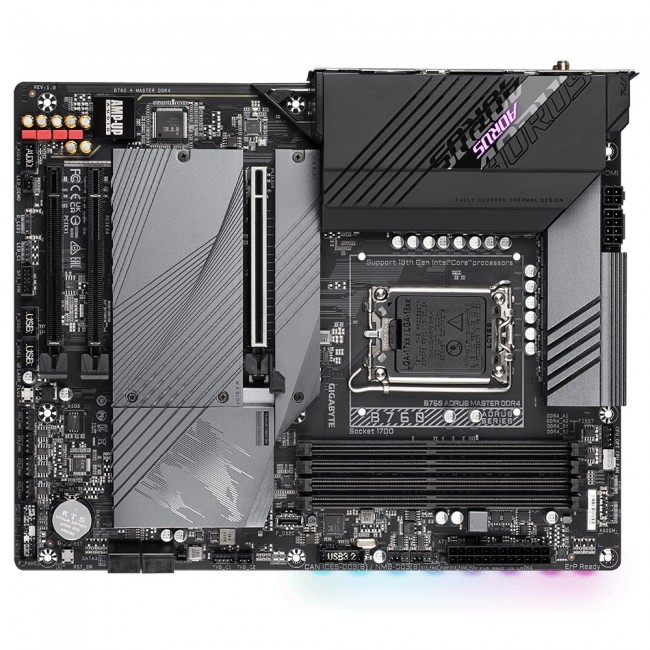

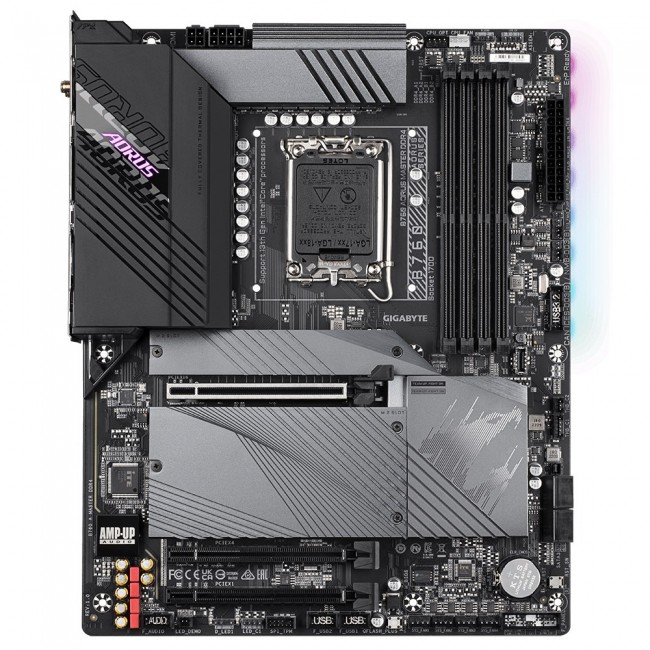

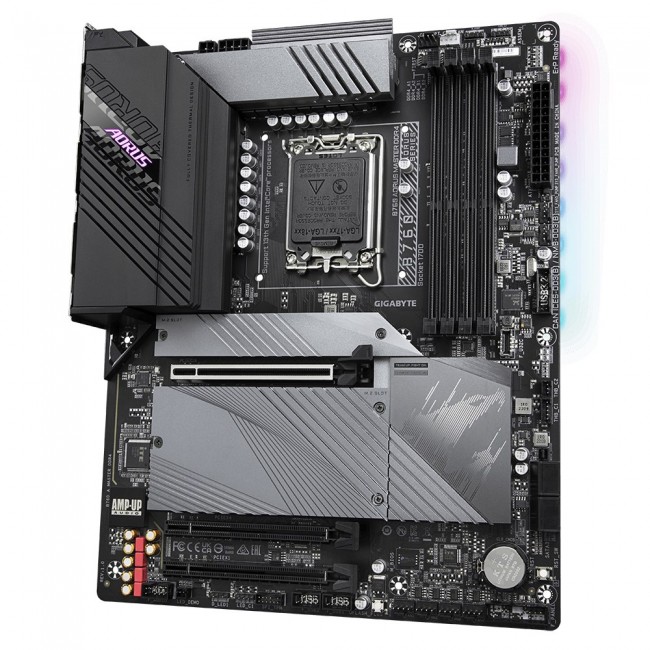

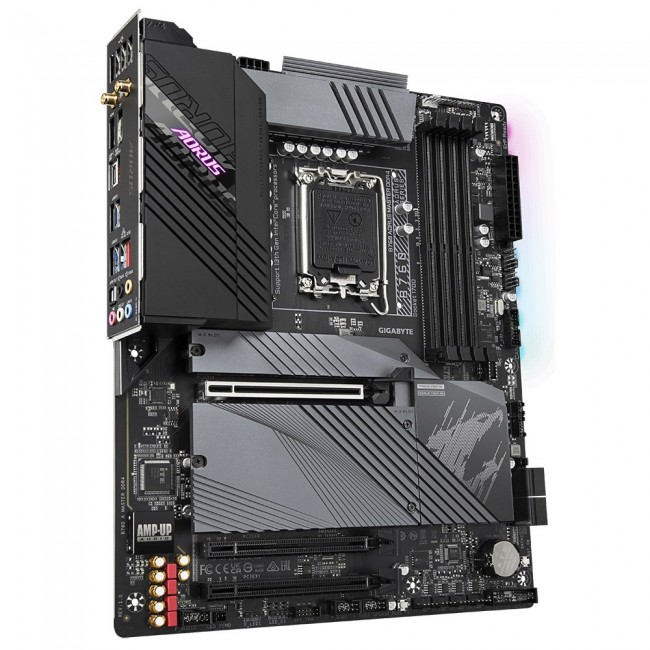

GIGABYTE B760 AORUS MASTER DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 16*+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: Gigabyte
- Κωδικός: WLONONWCRECFO
- Βάρος(kg): 2.11kg
- Διαστάσεις Συσκευασίας: 27.00cm x 33.80cm x 8.30cm
- EAN: 4719331850890
299,26€
Χωρίς ΦΠΑ: 241,34€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC1220-VB |
| Audio connector | Yes |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i3 Intel Core i7 Intel Core i9 Intel Pentium Gold Intel Core i5 Intel Celeron |
| Component for | PC |
| Country of origin | Taiwan |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Graphics card | HD Graphics |
| Graphics card family | Intel |
| Guarantee | G024M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 2 |
| Height | 35 mm |
| Line-in | Yes |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 128 GB |
| Maximum internal memory supported by processor | 128 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 4 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 2 |
| Number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 7 |
| On-board graphics card | Yes |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.44 kg |
| Package width | 335 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan Voltage Temperature Water cooling |
| PCI Express x16 slots | 1 |
| Power fan connector | Yes |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Bronze |
| Products per shipping (inner) case | 1 pc(s) |
| RAID levels | 5 10 0 1 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 3466 4600 3000 5333 MHz 3800 3333 3200 2666 MHz 4266 2133 MHz 2400 4700 4133 4000 3666 4800 4933 MHz 3733 4300 4400 5000 3400 3866 2933 3600 3300 5133 4500 |
| Supported memory module capacities | 1GB 12GB 32GB 8GB 2GB 16GB |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Thunderbolt headers | 2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-C USB Type-A |
| Warranty period | 3 year(s) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) Wi-Fi 6E (802.11ax) 802.11b 802.11g Wi-Fi 4 (802.11n) 802.11a Wi-Fi 6 (802.11ax) |
| Width | 305 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 11 x64 Windows 10 x64 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
