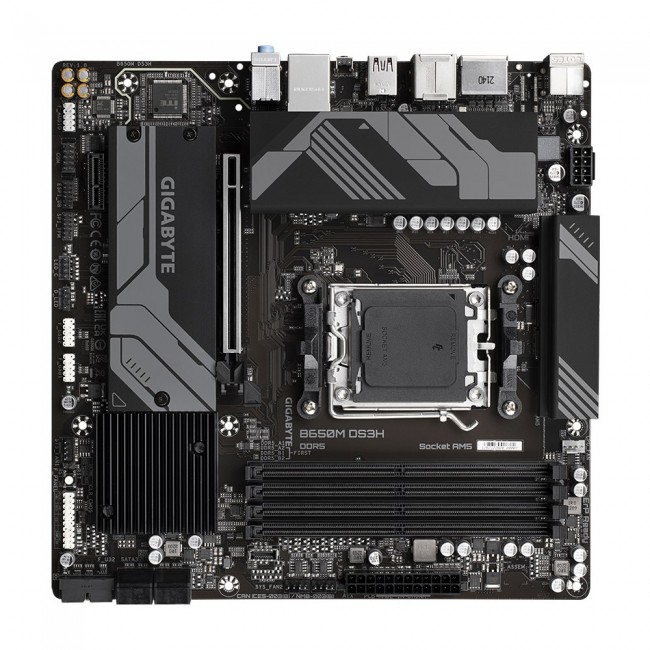

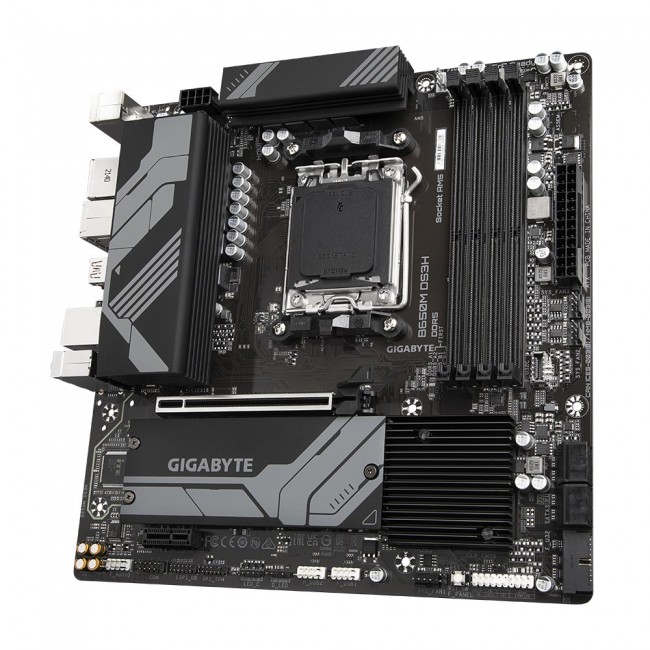

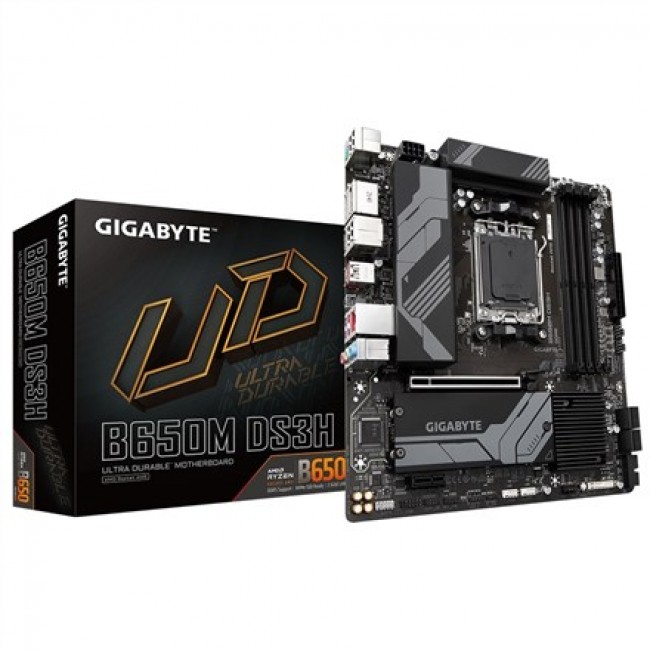

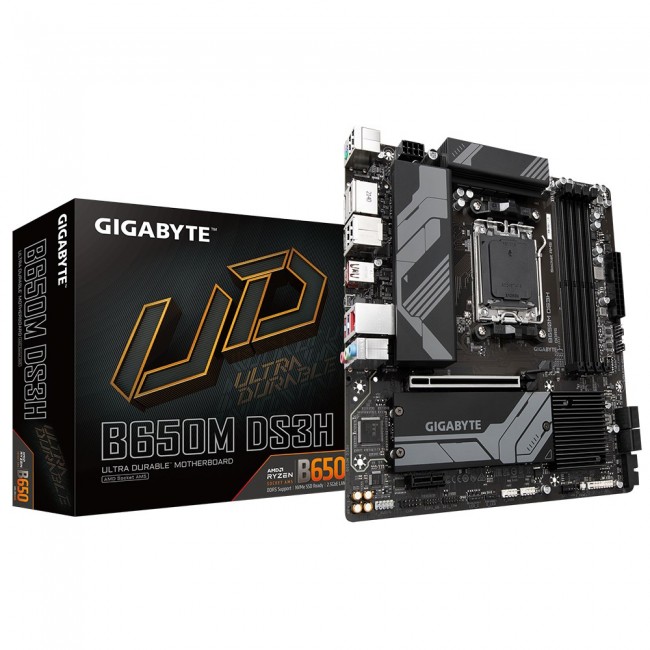

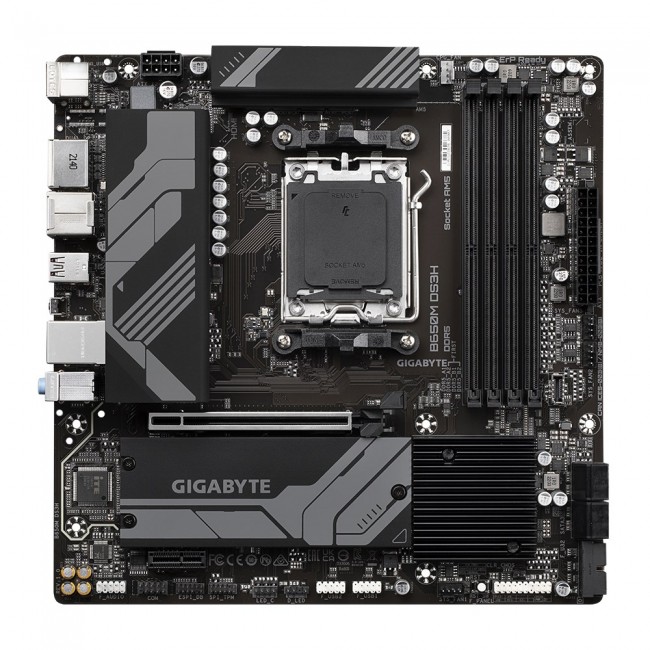

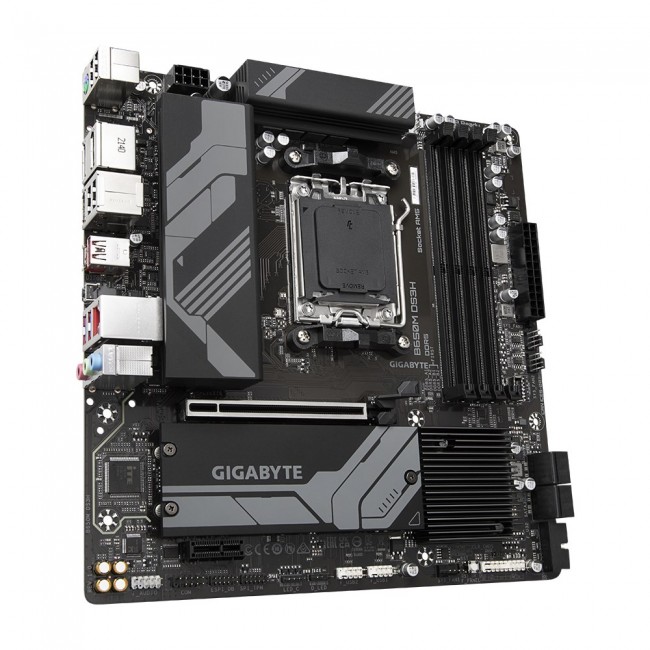

Gigabyte B650M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 6+2+1 Phases Digital VRM, up to 8000MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: Gigabyte
- Κωδικός: WLONONWCRAZAO
- Βάρος(kg): 1.50kg
- Διαστάσεις Συσκευασίας: 7.00cm x 28.00cm x 27.00cm
- EAN: 4719331849825
222,76€
Χωρίς ΦΠΑ: 179,64€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 25110 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 8000 Series AMD Ryzen 7000 Series AMD Ryzen 9000 Series |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| LAN controller | Realtek RTL8125 |
| Line-in | Yes |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.68 kg |
| Package width | 270 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan Temperature Voltage |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Bronze |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 10 1 0 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Screws included | Yes |
| Serial port headers | 1 |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory clock speeds | 6000 7600 7800 8000 MHz 5200 7000 6600 6800 6400 5600 7200 4800 6200 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. Avoid contact with liquids to prevent electronic damage. Dispose of in accordance with local regulations for electronic waste. |
| Warranty period | 3 year(s) |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 11 x64 Windows 10 x64 |
