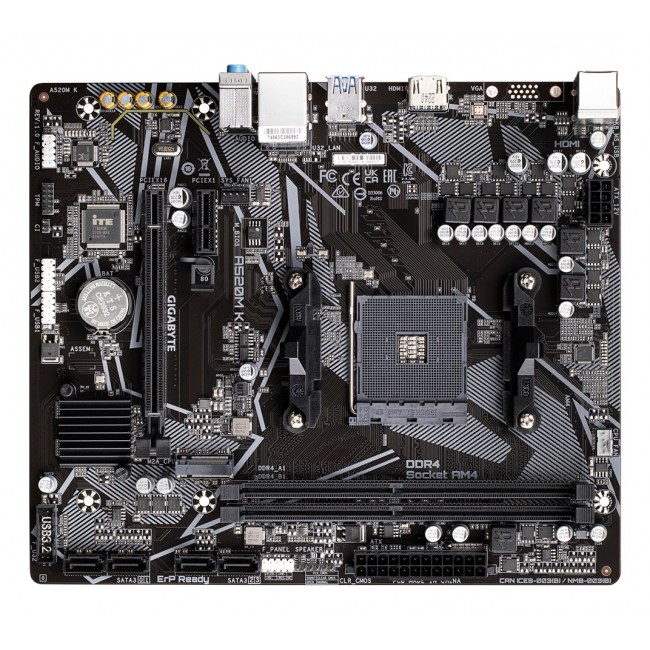

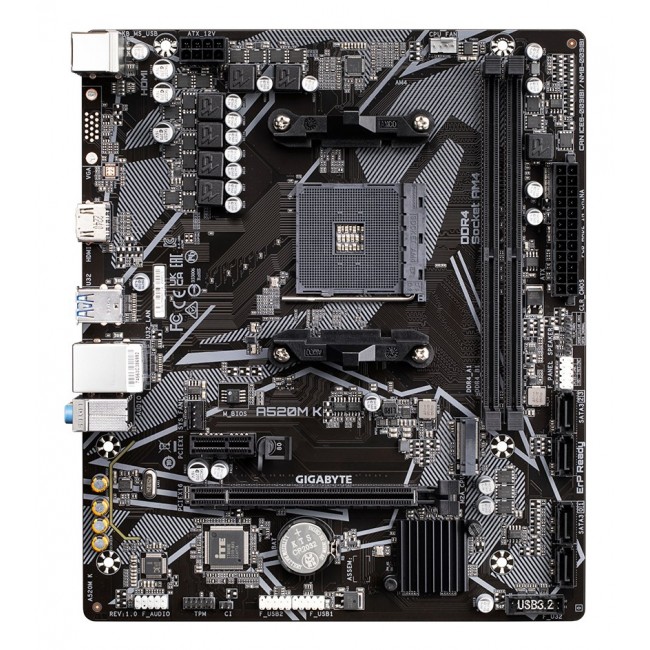

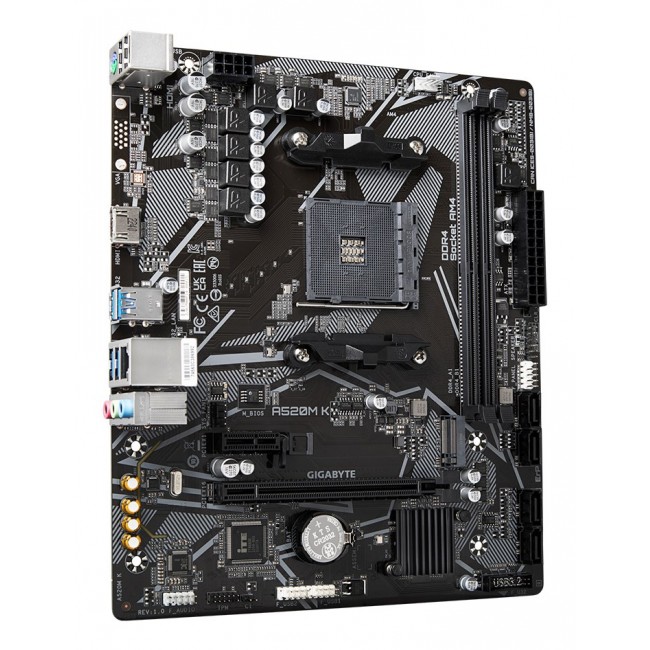

GIGABYTE A520M K (rev. 1.0) AMD A520 Socket AM4 micro ATX
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: Gigabyte
- Κωδικός: WLONONWCRJ949
- Βάρος(kg): 0.99kg
- Διαστάσεις Συσκευασίας: 7.00cm x 27.00cm x 27.00cm
- EAN: 4719331850883
114,44€
Χωρίς ΦΠΑ: 92,29€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 3000 Series AMD Ryzen Threadripper PRO 3000 WX-Series AMD Ryzen Threadripper 3000 Series |
| Component for | PC |
| Cooling type | Active |
| CPU fan connector | Yes |
| Depth | 198 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| Digital audio optical out | 1 |
| Discrete graphics support | Yes |
| Drivers included | Yes |
| DVI-D ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G024M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Maximum internal memory | 64 GB |
| Maximum internal memory supported by processor | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of displays supported | 2 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| PC health monitoring | LED CPU Fan Temperature Power supply Voltage |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Power fan connector | Yes |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| PS/2 ports quantity | 1 |
| RAID levels | 10 1 0 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| Serial ports quantity | 1 |
| Supported memory clock speeds | 2667 5000 2400 4600 2933 3600 4866 4000 3200 2133 MHz 3333 |
| Supported memory module capacities | 32GB 8GB 16GB 2GB 4GB 1GB |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| Wi-Fi | No |
| Width | 233 mm |
| Windows operating systems supported | Windows 10 x64 |
