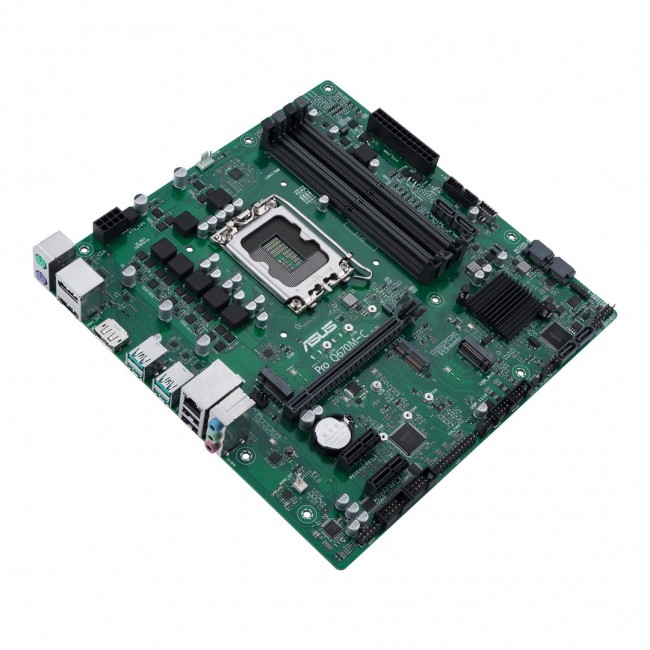

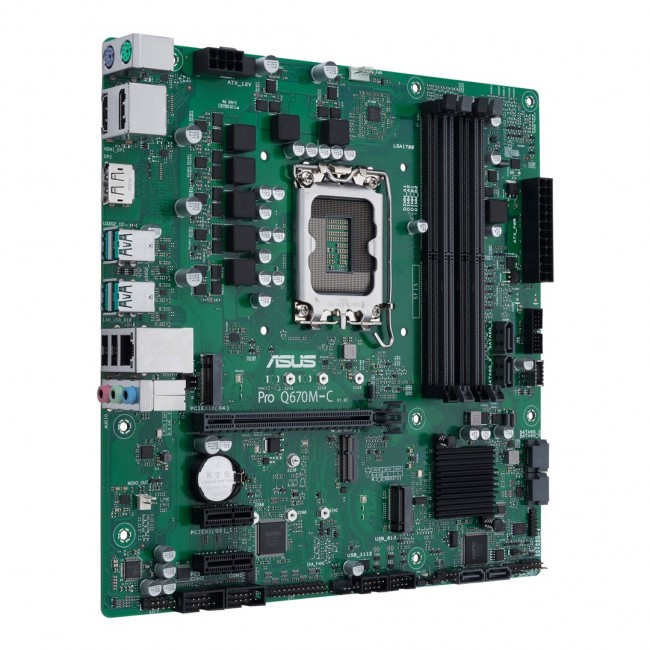

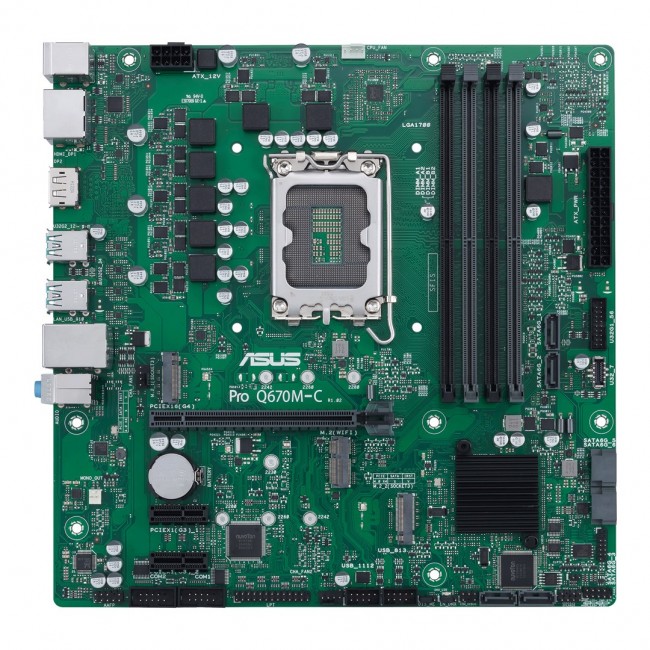

ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
- Διαθεσιμότητα: Διαθέσιμο από 4-8 ημέρες
- Κατασκευαστής: ASUS
- Κωδικός: PLYASU1700097
- Βάρος(kg): 0.98kg
- Διαστάσεις Συσκευασίας: 5.50cm x 27.50cm x 26.50cm
- EAN: 4711081518389
280,33€
Χωρίς ΦΠΑ: 226,07€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| Audio output channels | 7.1 channels |
| Cables included | SATA |
| Compatible operating systems | Windows 11 64-bit, Windows 10 64-bit |
| Compatible processor series | Intel Pentium G Intel Core i5 Intel Celeron Intel Core i3 Intel Core i7 Intel Core i9 |
| Cooling type | Active |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| Drivers included | Yes |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Height | 51 mm |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel Q670 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 2 |
| Number of HDDs supported | 6 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of mounting holes | 8 |
| Number of SATA III connectors | 6 |
| Number of storage drives supported | 8 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 2 |
| RAID levels | 1 5 10 0 |
| RAID support | Yes |
| Supported memory module capacities | 8GB 16GB 32GB 4GB |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. Avoid direct contact with electronics to prevent electrostatic damage. Do not dispose of the motherboard in the ordinary rubbish bin the product requires specia |
| Weight | 634 g |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 11 Windows 10 |
