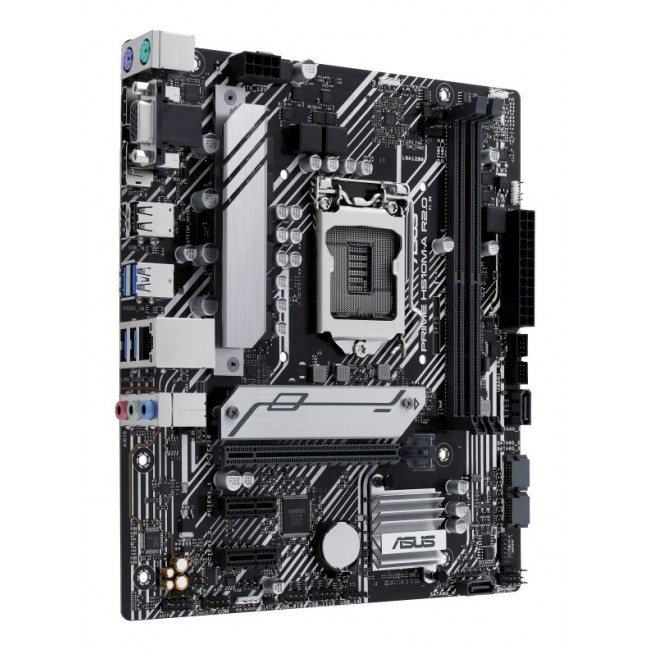

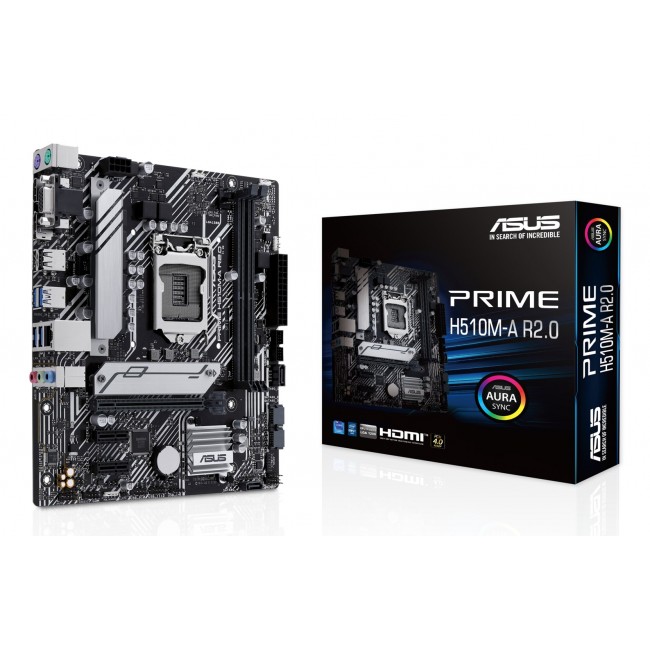

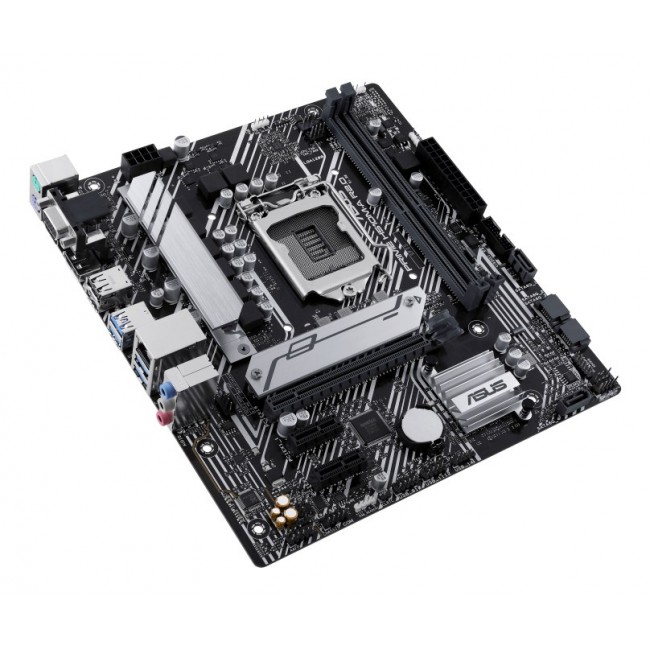

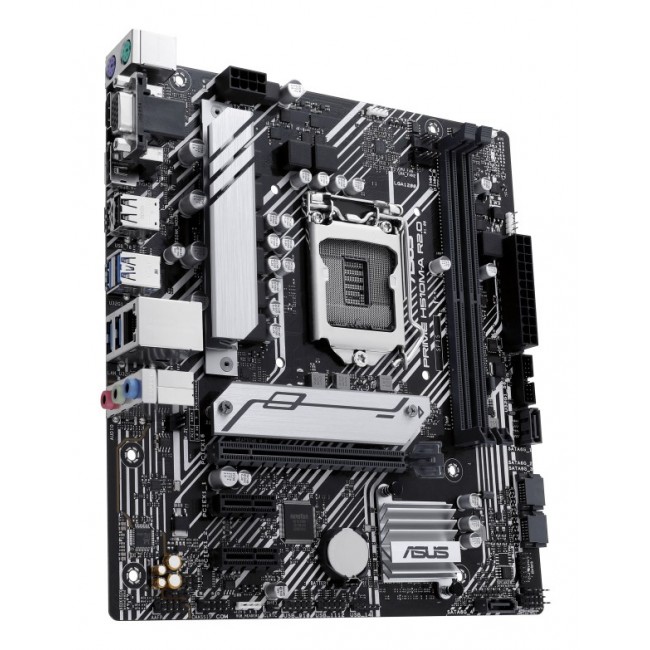

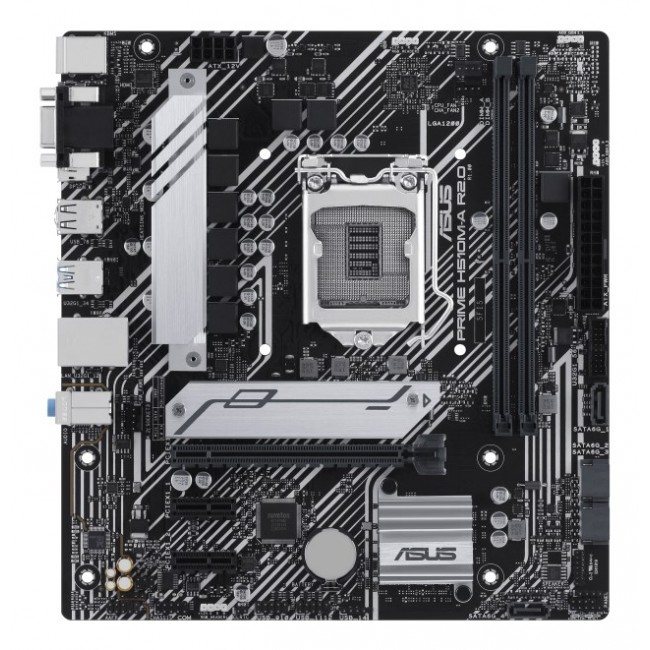

ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX motherboard
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: ASUS
- Κωδικός: PLYASU1200094
- Βάρος(kg): 0.90kg
- Διαστάσεις Συσκευασίας: 5.00cm x 26.50cm x 27.00cm
- EAN: 4711387234891
89,81€
Χωρίς ΦΠΑ: 72,43€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Compatible processor series | Intel Core i7 Intel Core i9 Intel Pentium Gold Intel Core i3 Intel Core i5 Intel Celeron |
| CPU fan connector | Yes |
| Depth | 211 mm |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel H510 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 1.03 kg |
| Package width | 260 mm |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| PS/2 ports quantity | 2 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 2400 2800 3000 2666 MHz 2933 2133 3200 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Warnings | Do not make changes or modifications to the appliance, which may void the warranty or cause damage. Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge. Avoid contact with liquids to prevent damage to elec |
| Wi-Fi | No |
| Width | 226 mm |
| Windows operating systems supported | Windows 10 x64 |
