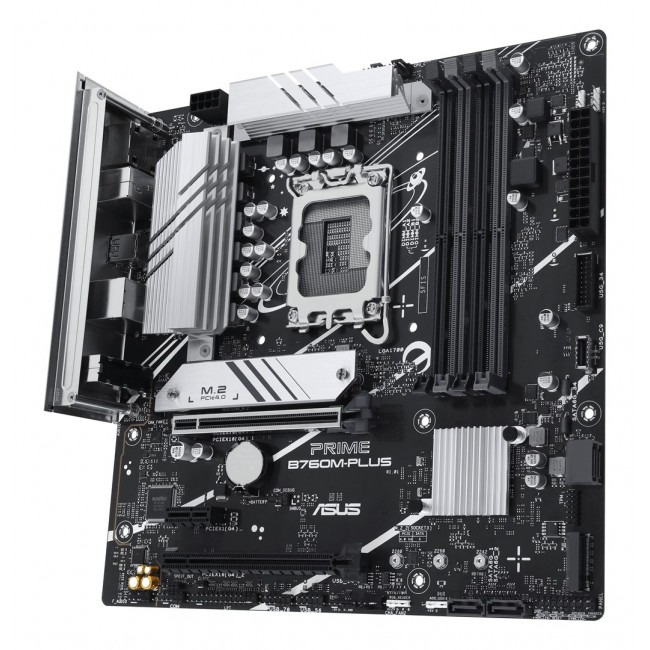

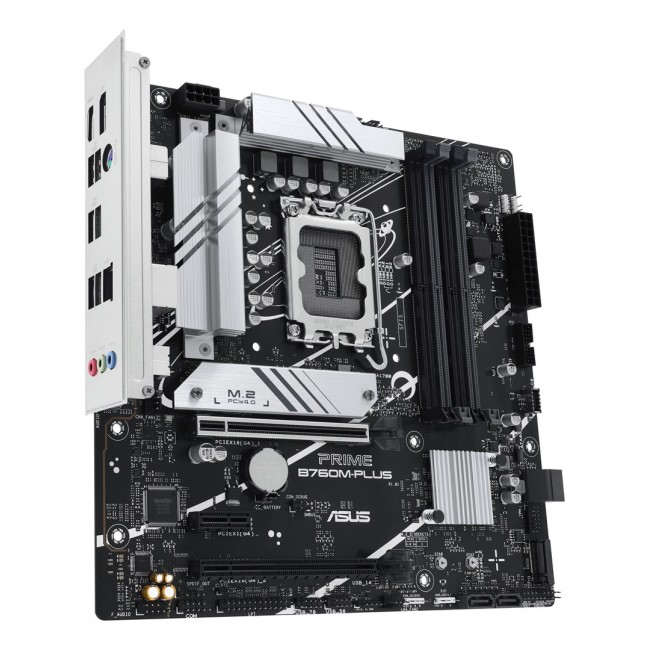

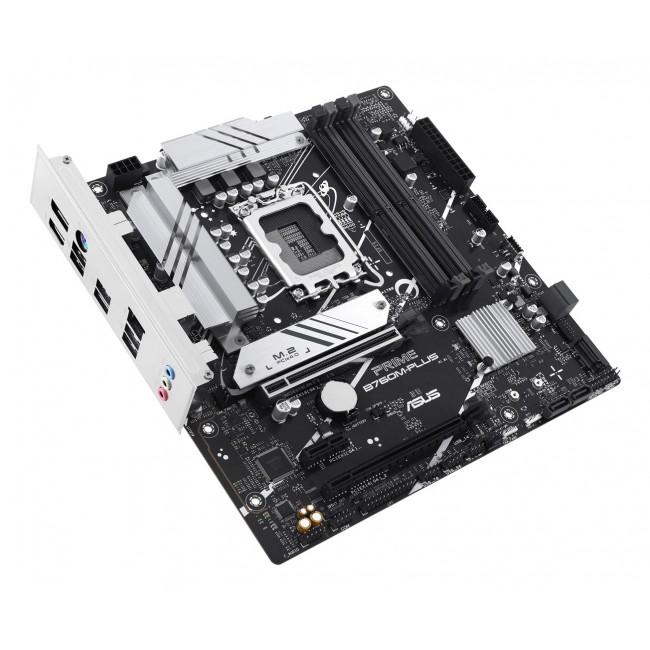

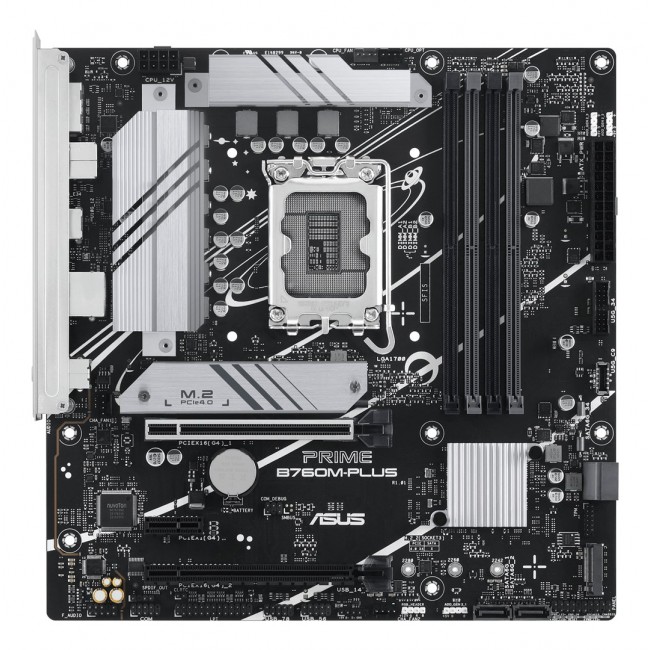

ASUS PRIME B760M-PLUS Intel B760 LGA 1700 micro ATX
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: ASUS
- Κωδικός: PLYASU1700090
- Βάρος(kg): 1.20kg
- Διαστάσεις Συσκευασίας: 30.00cm x 28.00cm x 7.00cm
- EAN: 4711387469910
181,62€
Χωρίς ΦΠΑ: 146,47€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Compatible processor series | Intel Core i3 Intel Core i5 Intel Celeron Intel Core i7 Intel Core i9 Intel Pentium Gold |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 0 1 10 5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Screws included | Yes |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 6200 5200 MHz 6400 MHz 6800 5800 5400 5000 7000 6000 MHz 5600 MHz 7200 6600 4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 3 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin the product requires special disposal. Before starting any maintenance or installation, disconnect the product from the power supply. Avoid direct contact with electronics to prevent electrosta |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 11 Windows 10 x64 |
