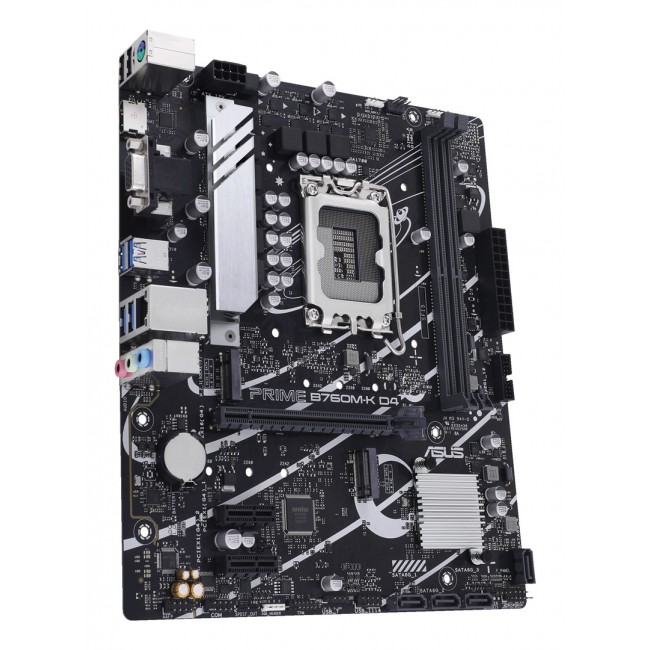

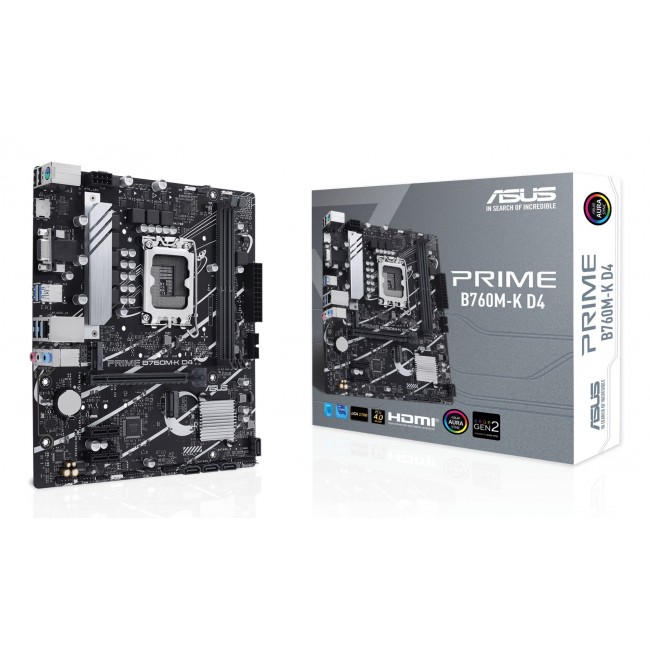

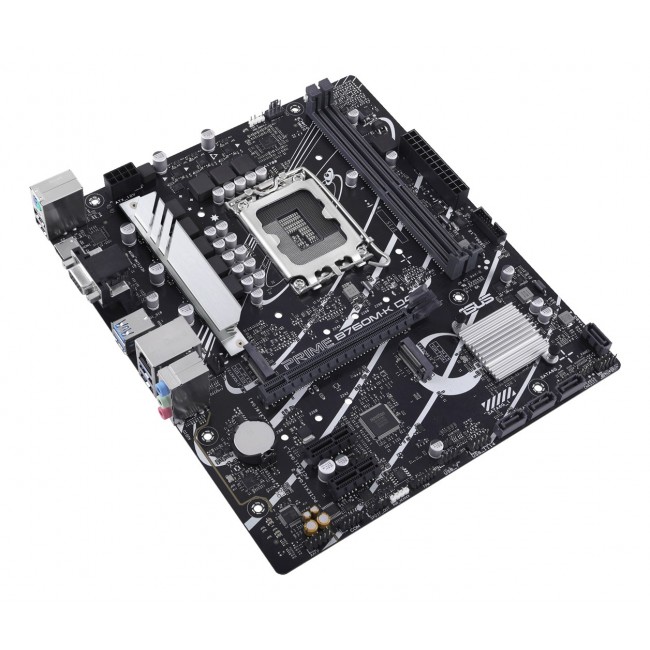

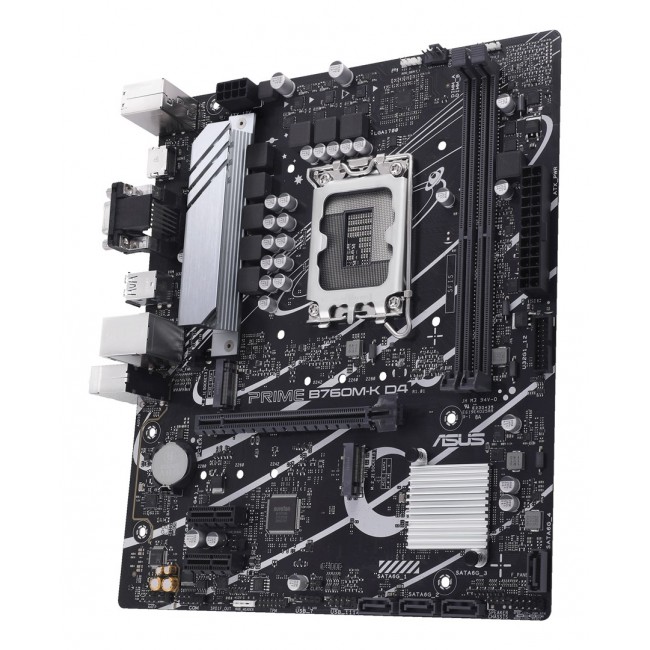

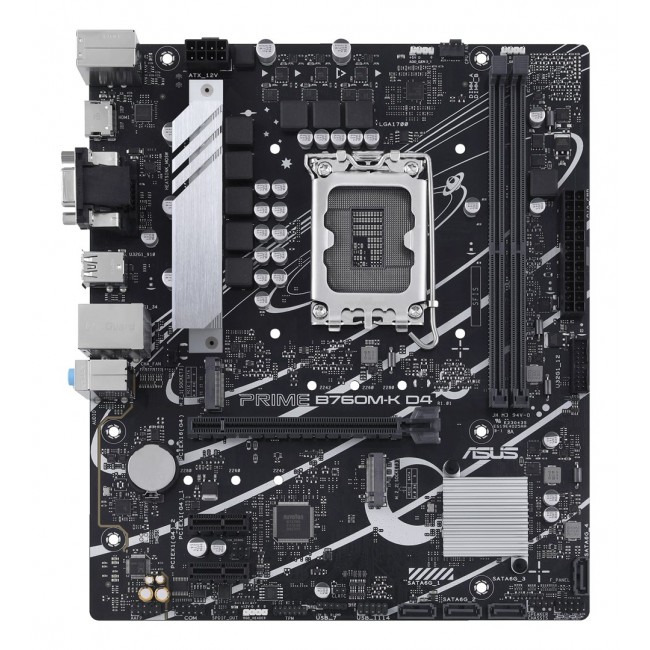

ASUS Prime B760M-K D4 Intel B760 LGA 1700 micro ATX motherboard
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: ASUS
- Κωδικός: PLYASU1700061
- Βάρος(kg): 0.93kg
- Διαστάσεις Συσκευασίας: 14.50cm x 24.00cm x 26.70cm
- EAN: 4711387006917
116,92€
Χωρίς ΦΠΑ: 94,29€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Compatible processor series | Intel Core i7 Intel Core i9 Intel Pentium Gold Intel Core i3 Intel Core i5 Intel Celeron |
| CPU fan connector | Yes |
| Depth | 211 mm |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| Height | 36 mm |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Package depth | 51.5 mm |
| Package height | 263 mm |
| Package weight | 926.3 g |
| Package width | 270 mm |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 1 0 5 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 3000 5333 MHz 2400 2800 2133 3733 4400 5000 5066 3466 4000 4800 MHz 4600 3333 2933 3600 3400 3200 2666 MHz 4266 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Wake-on-LAN ready | Yes |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. Avoid direct contact with electronics to prevent electrostatic damage. Do not dispose of the motherboard in the ordinary rubbish bin the product requires specia |
| Weight | 528 g |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 10 x64 Windows 11 |
