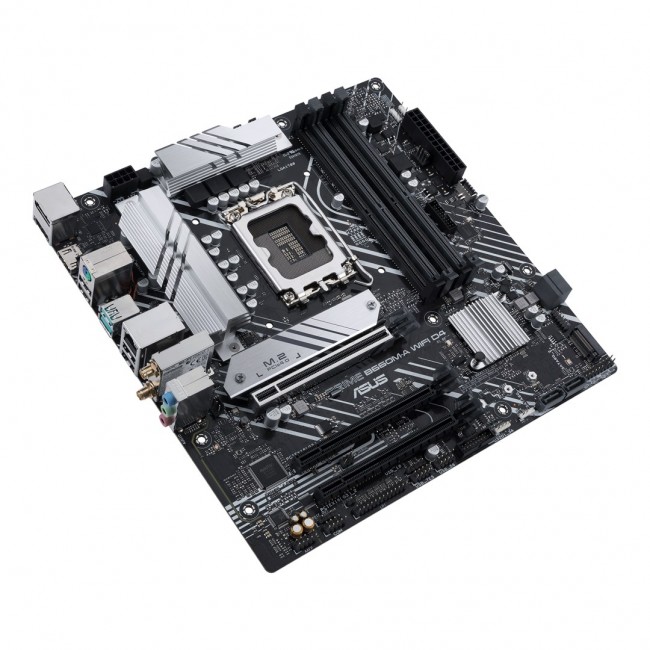

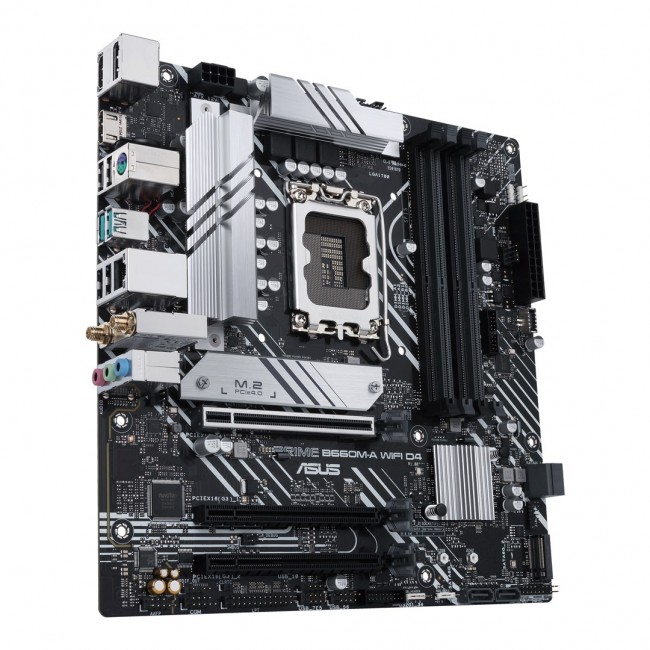

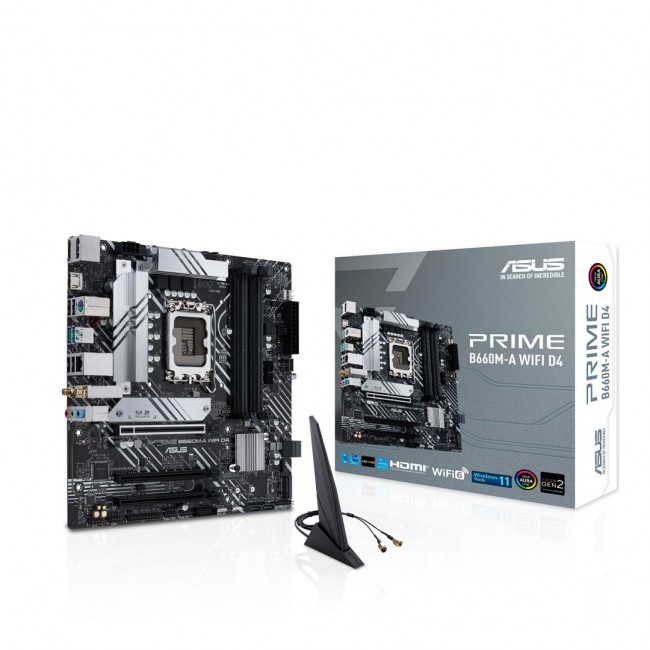

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: ASUS
- Κωδικός: PLYASU1700021
- Βάρος(kg): 1.33kg
- Διαστάσεις Συσκευασίας: 27.50cm x 7.00cm x 28.00cm
- EAN: 4711081518105
- ΚΩΔ. ΠΡΟΪΟΝΤΟΣ: 386710
148,00€
Χωρίς ΦΠΑ: 119,35€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Cables included | SATA |
| Compatible processor series | Intel Core i3 Intel Core i7 Intel Core i9 Intel Pentium Gold Intel Pentium Intel Core i5 Intel Celeron |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Guarantee | G036M |
| Harmonized System (HS) code | 84733020 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 60 mm |
| Maximum internal memory | 128 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B660 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of displays supported | 3 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 10 0 1 5 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 3400 4600 3200 2666 MHz 2400 2800 3466 2133 2933 3600 4000 4800 MHz 3733 4400 5000 3000 5333 MHz 3333 |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive interfaces | M.2, SATA |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 3 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. Avoid direct contact with electronics to prevent electrostatic damage. Do not dispose of the motherboard in the ordinary rubbish bin the product requires specia |
| Weight | 819 g |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b 802.11g Wi-Fi 4 (802.11n) Wi-Fi 5 (802.11ac) 802.11a Wi-Fi 6 (802.11ax) |
| Width | 244 mm |
| Windows operating systems supported | Windows 11 x64 Windows 10 x64 |
