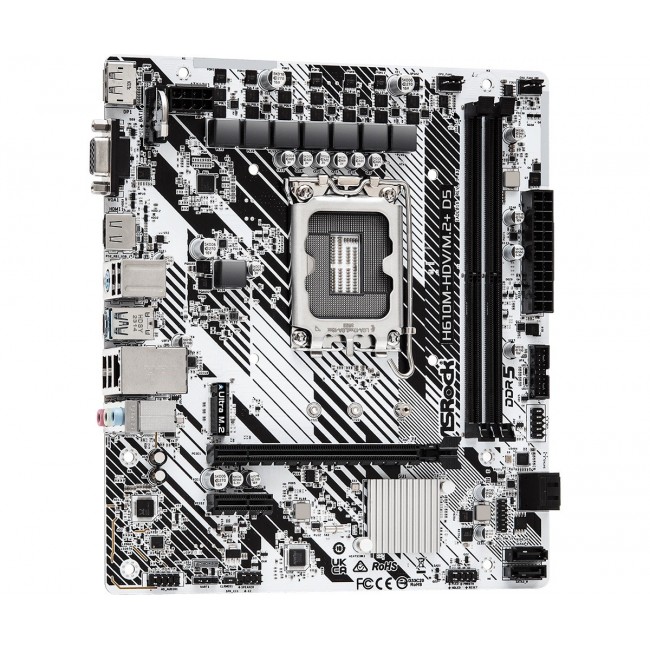

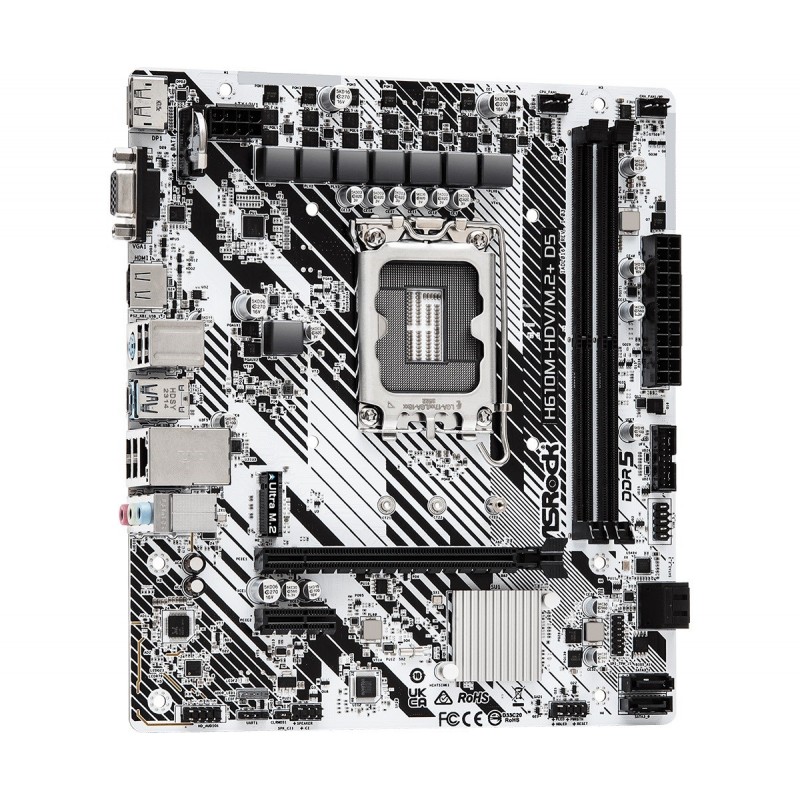

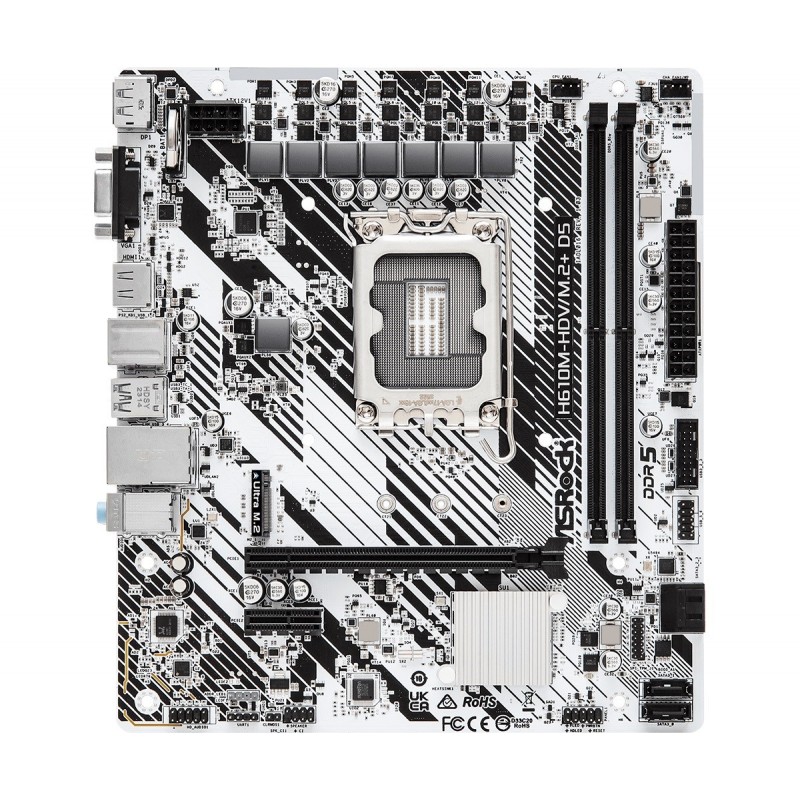

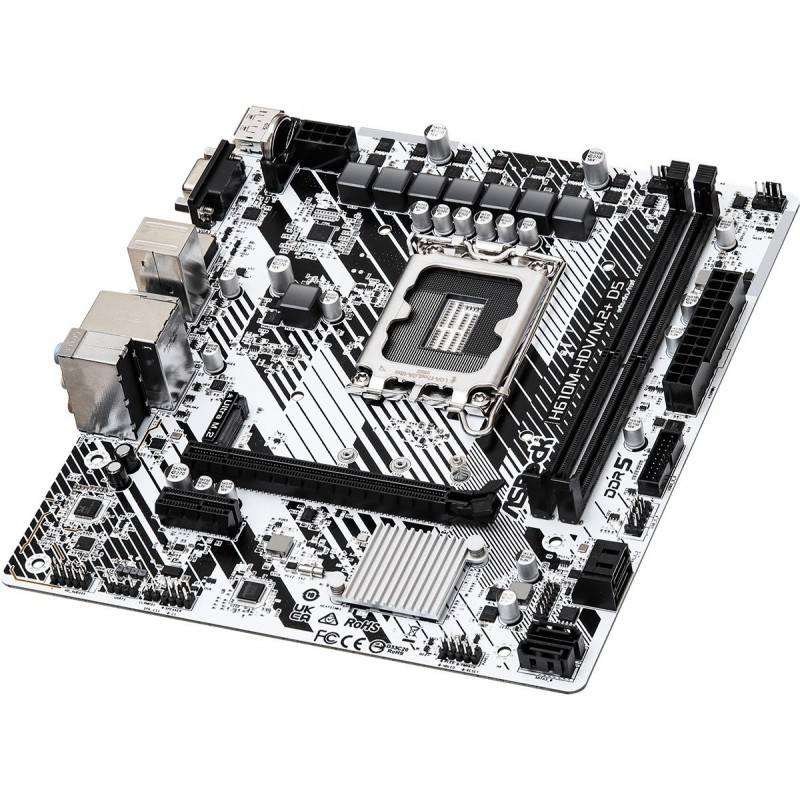

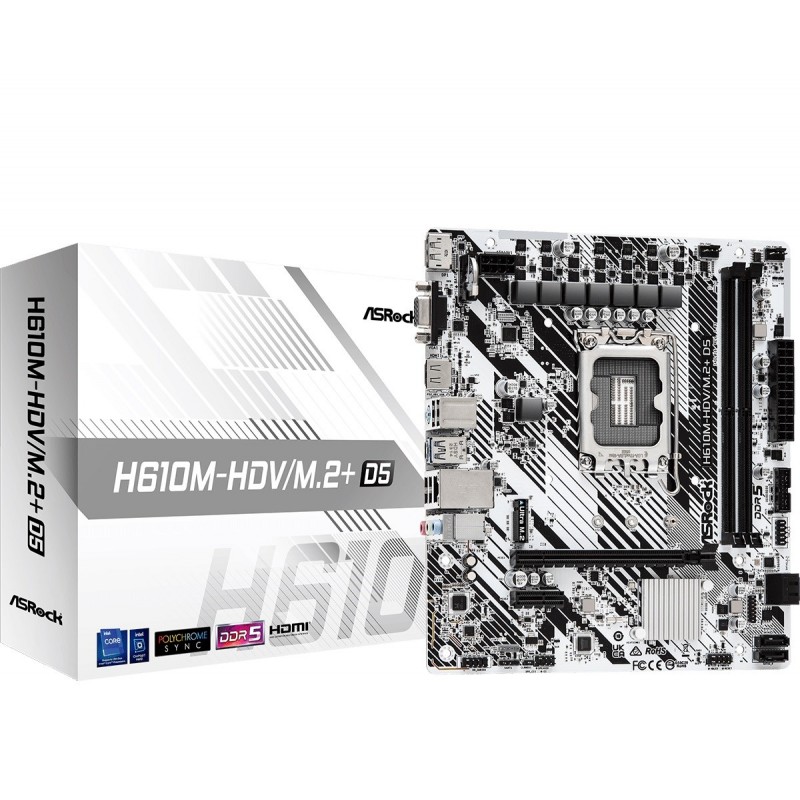

Asrock H610M-HDV/M.2+ D5 Intel H610 LGA 1700 micro ATX
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Asrock
- Κωδικός: PLYASR1700055
- Βάρος(kg): 0.75kg
- Διαστάσεις Συσκευασίας: 28.00cm x 6.00cm x 28.00cm
- EAN: 4710483943478
88,41€
Χωρίς ΦΠΑ: 71,30€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel Core i3 Intel Core i7 Intel Core i9 Intel Pentium Intel Core i5 Intel Celeron |
| CPU fan connector | Yes |
| Depth | 193 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Guarantee | G024M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| LAN controller | Realtek 8111H |
| Maximum internal memory | 96 GB |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 7680 x 4320 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel H610 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 1 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan CPU Temperature Voltage |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID support | No |
| RGB LED pin header | Yes |
| Supported memory clock speeds | 5600 |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Wake-on-LAN ready | Yes |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. Do not dispose of the motherboard in the ordinary rubbish bin the product requires special disposal. Avoid direct contact with electronics to prevent electrosta |
| Wi-Fi | No |
| Width | 220 mm |
| Windows operating systems supported | Windows 11 x64 Windows 10 x64 |
