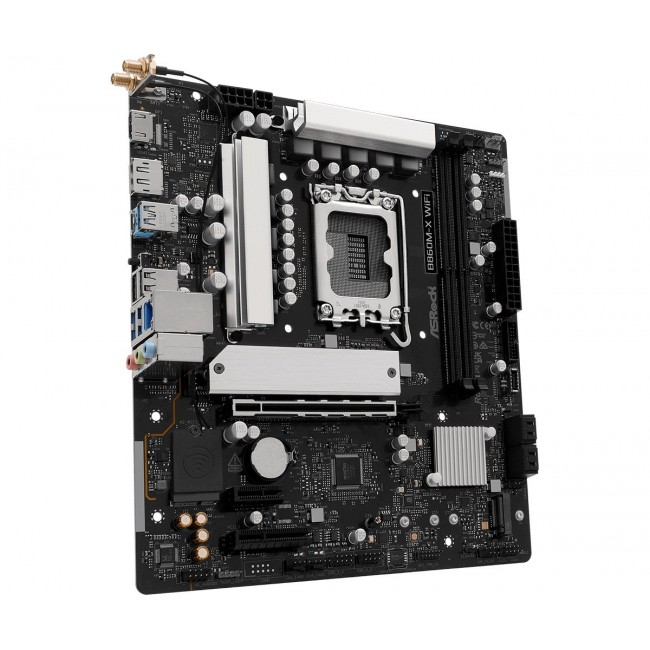

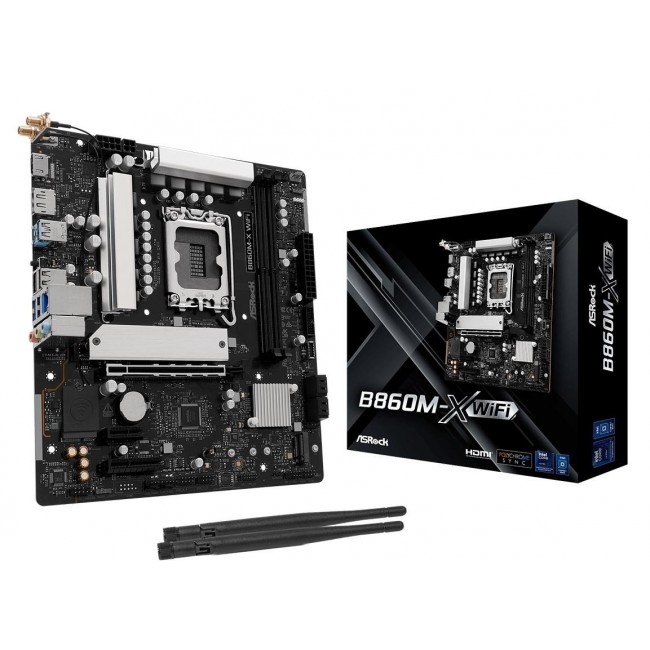

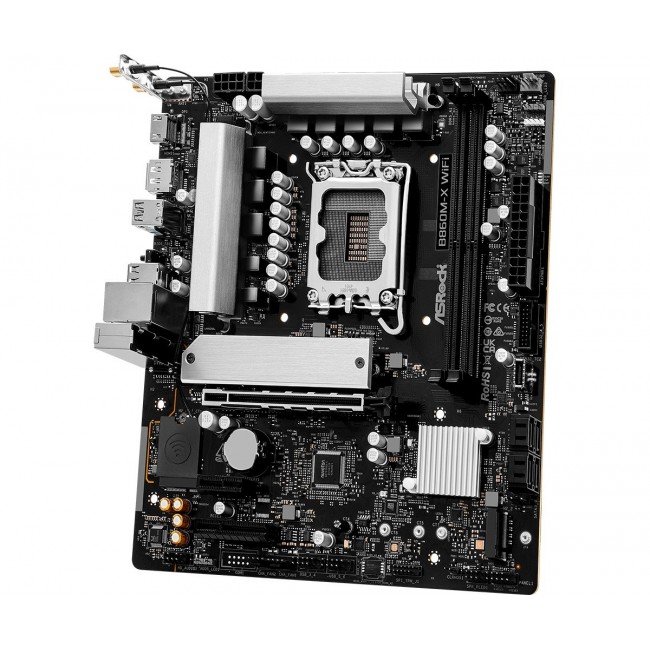

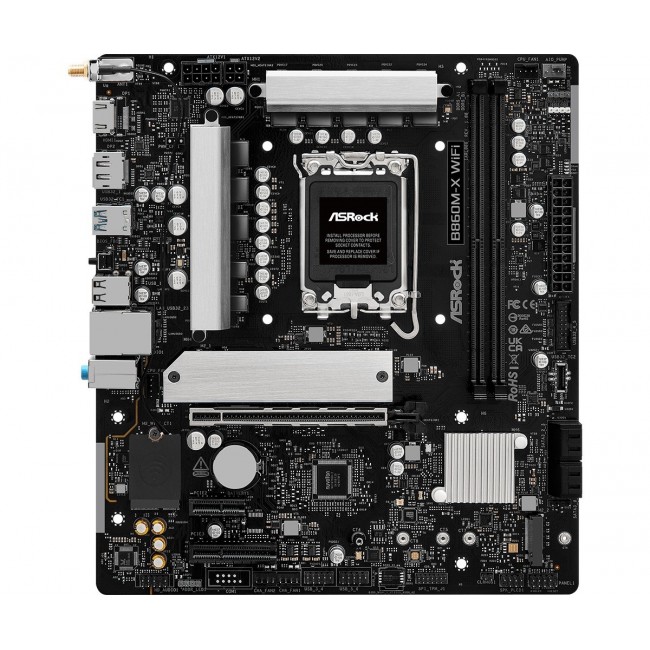

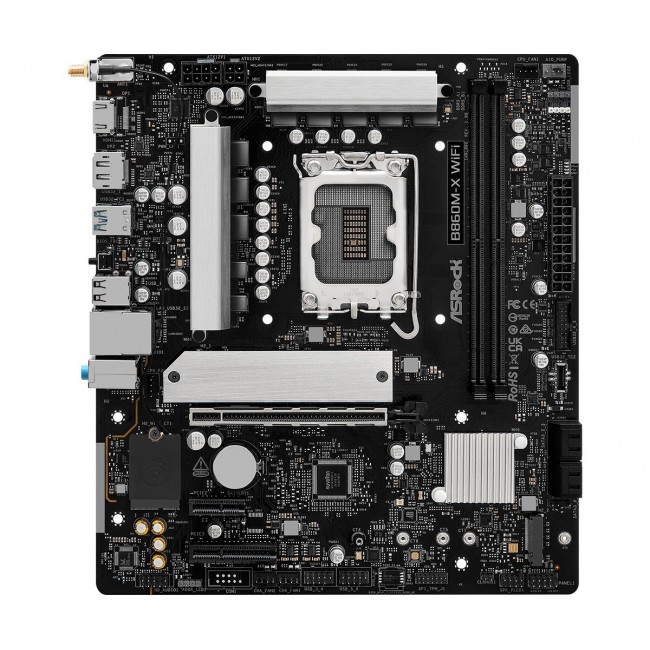

ASRock B860M-X WiFi motherboard
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Asrock
- Κωδικός: PLYASR1850033
- Βάρος(kg): 1.20kg
- Διαστάσεις Συσκευασίας: 31.50cm x 6.00cm x 30.00cm
- EAN: 4711581490413
163,94€
Χωρίς ΦΠΑ: 132,21€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| Antennas quantity | 2 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Certification | FCC, CE, ErP/EuP |
| Compatible processor series | Intel Core Ultra (Series 2) |
| CPU fan connector | Yes |
| Depth | 218 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Flashback BIOS button | Yes |
| Front panel audio connector | Yes |
| Guarantee | G036M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| LAN controller | Dragon RTL8125BG |
| Maximum internal memory | 128 GB |
| Maximum resolution | 7680 x 4320 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| MIC input | 1 |
| Motherboard chipset | Intel B860 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| MU-MIMO | Yes |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 2 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 2 |
| Number of RGB LED pin headers | 1 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Number of water pump connectors | 1 |
| On-board graphics card family | Intel Iris Xe Graphics |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| RAID levels | 5 1 10 0 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1851 |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6E (802.11axe) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-A USB Type-C |
| Warnings | When disposing of the product, follow local regulations for the recycling of electronics. Do not open or modify the motherboard to prevent damage. In case of installation problems, contact a qualified service technician. |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n) 802.11b Wi-Fi 5 (802.11ac) Wi-Fi 6E (802.11ax) 802.11a Wi-Fi 6 (802.11ax) 802.11g |
| Width | 244 mm |
| Windows operating systems supported | Windows 11 x64 |
