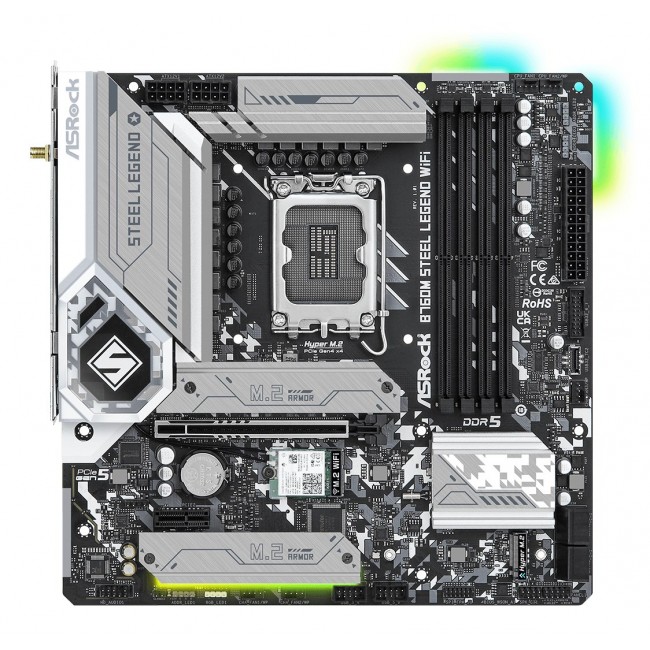

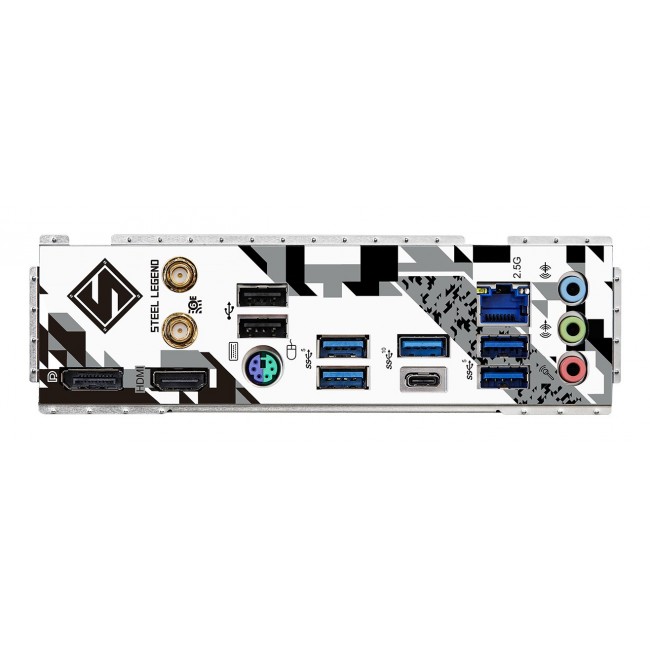

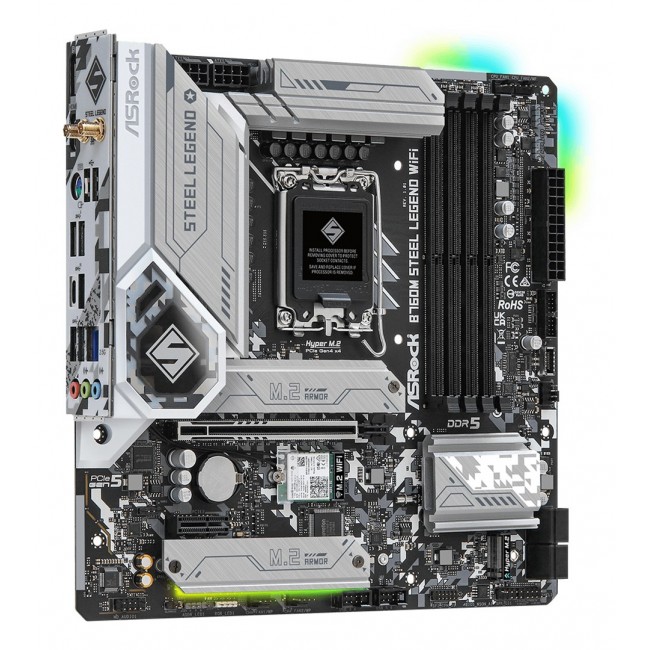

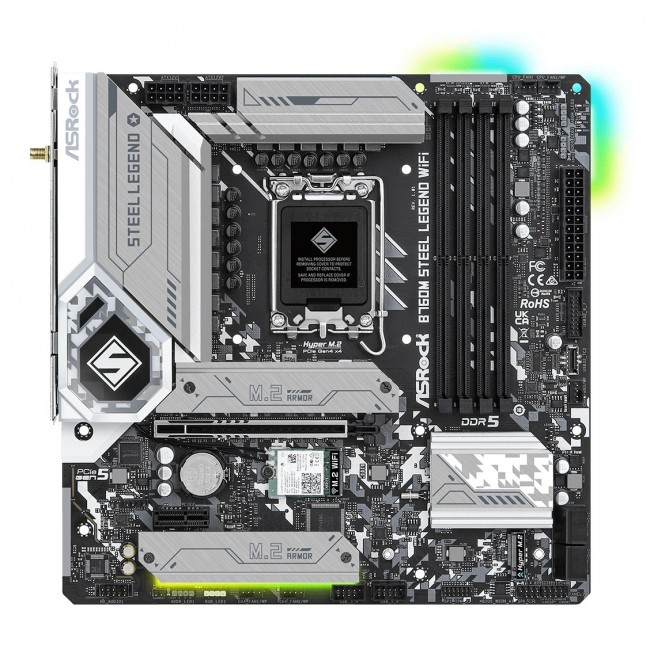

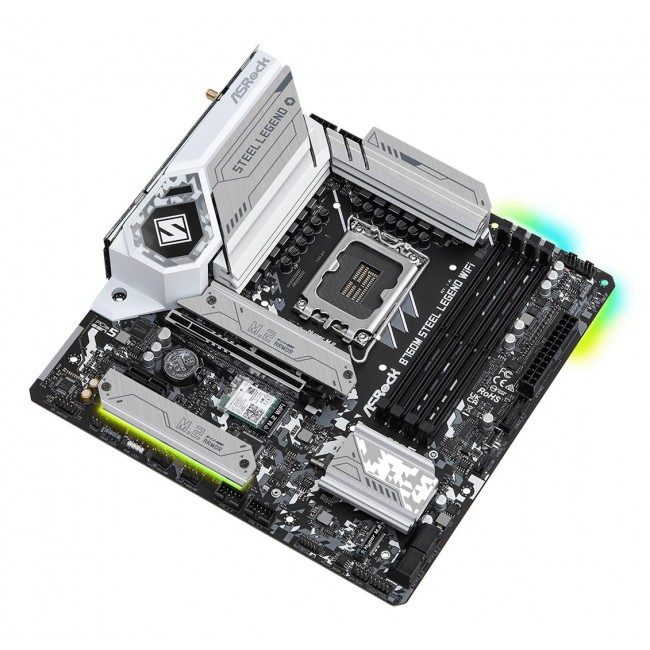

Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Asrock
- Κωδικός: PLYASR1700045
- Βάρος(kg): 1.38kg
- Διαστάσεις Συσκευασίας: 26.20cm x 28.20cm x 6.20cm
- EAN: 4710483941795
185,95€
Χωρίς ΦΠΑ: 149,96€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Cables included | SATA |
| Compatible processor series | Intel Core i5 Intel Core i7 Intel Core i9 |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| LAN controller | Dragon RTL8125BG |
| Line-in | Yes |
| Maximum internal memory | 128 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 1.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RGB LED pin header | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. Before starting any maintenance or installation, disconnect the product from the power supply. Do not dispose of the motherboard in the ordinary rubbish bin the product requires specia |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11g Wi-Fi 6E (802.11ax) 802.11a Wi-Fi 4 (802.11n) Wi-Fi 5 (802.11ac) 802.11b |
| Width | 244 mm |
| Windows operating systems supported | Windows 10 x64 Windows 11 x64 |
