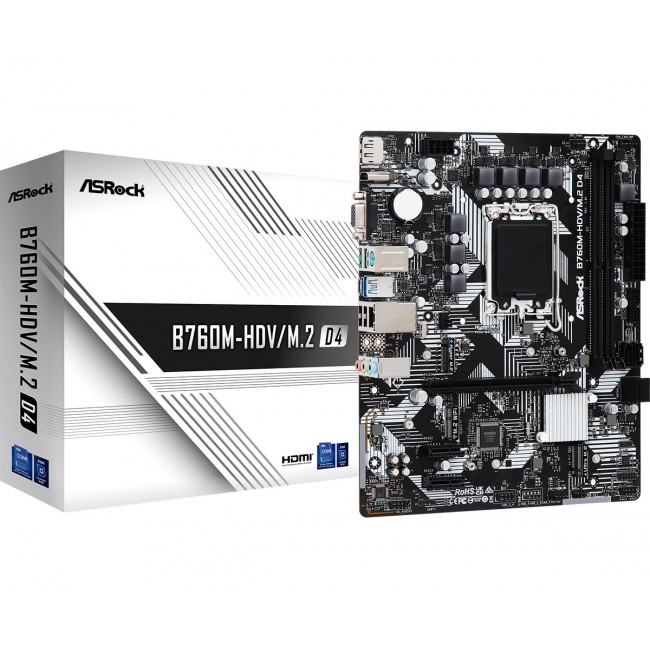

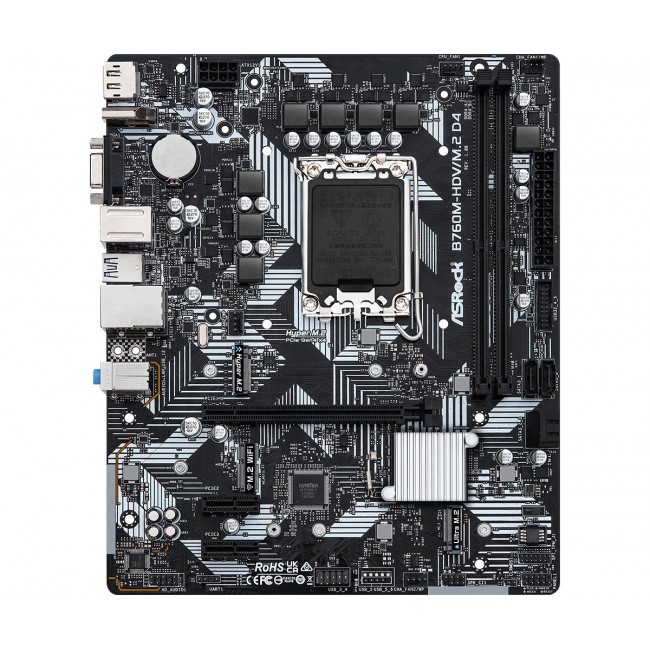

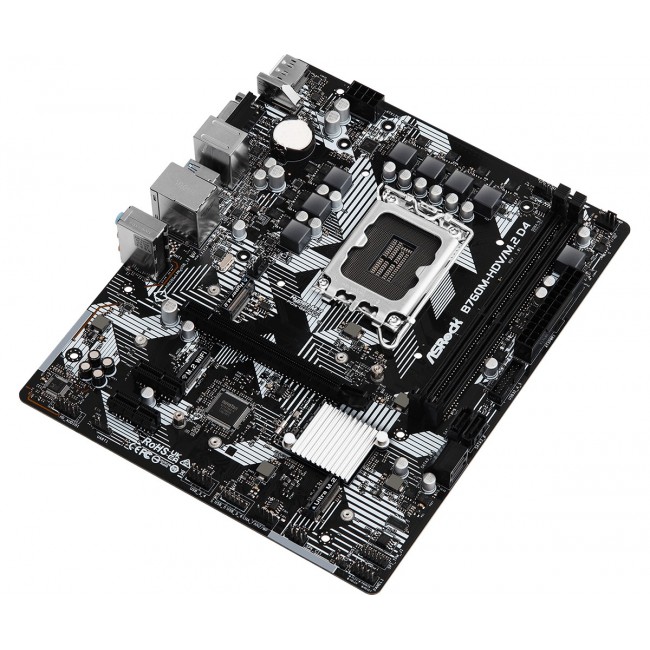

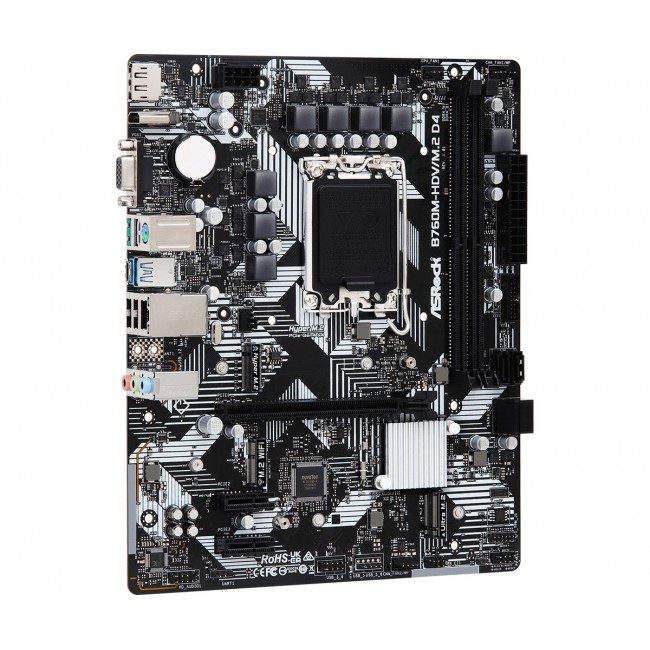

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Asrock
- Κωδικός: PLYASR1700048
- Βάρος(kg): 0.78kg
- Διαστάσεις Συσκευασίας: 5.80cm x 27.50cm x 24.00cm
- EAN: 4710483942020
105,60€
Χωρίς ΦΠΑ: 85,16€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel Core i3 Intel Core i5 Intel Core i7 Intel Core i9 |
| CPU fan connector | Yes |
| Depth | 201 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Maximum internal memory | 64 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 5 0 1 10 |
| RAID support | Yes |
| Supported memory clock speeds | 5333 MHz 3200 MHz 4400 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. Before starting any maintenance or installation, disconnect the product from the power supply. Do not dispose of the motherboard in the ordinary rubbish bin the product requires specia |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 10 Education x64 Windows 11 x64 |
