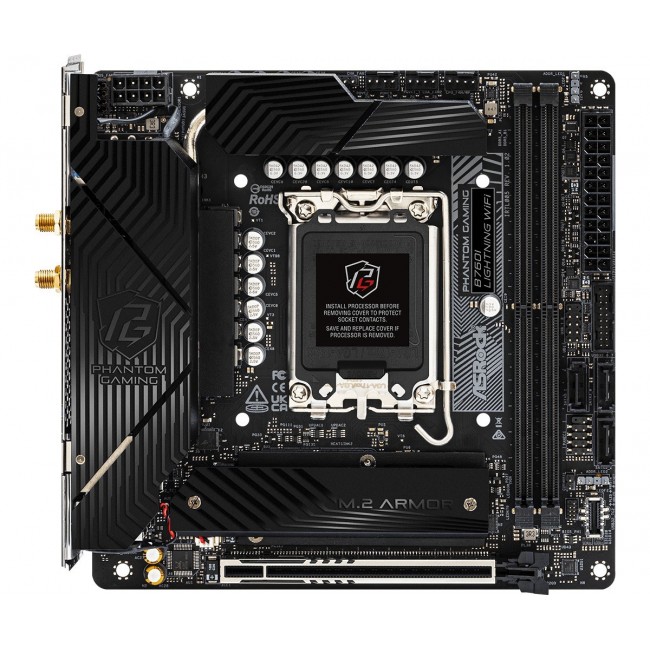

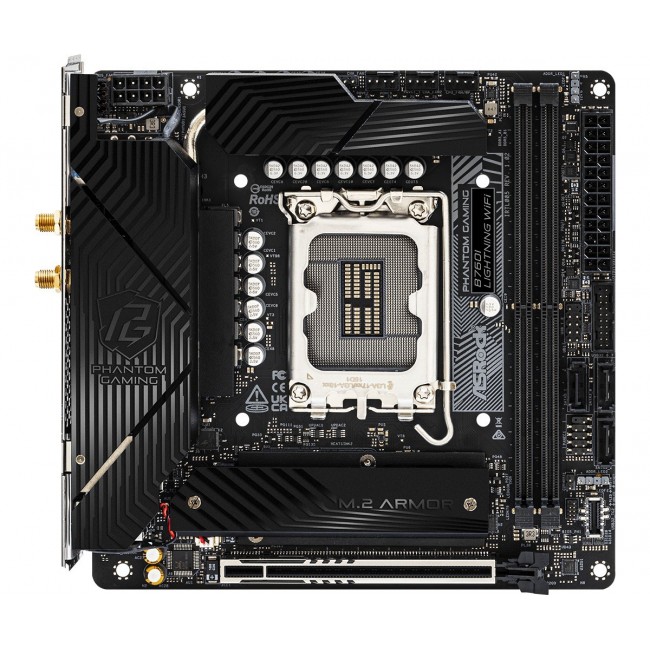

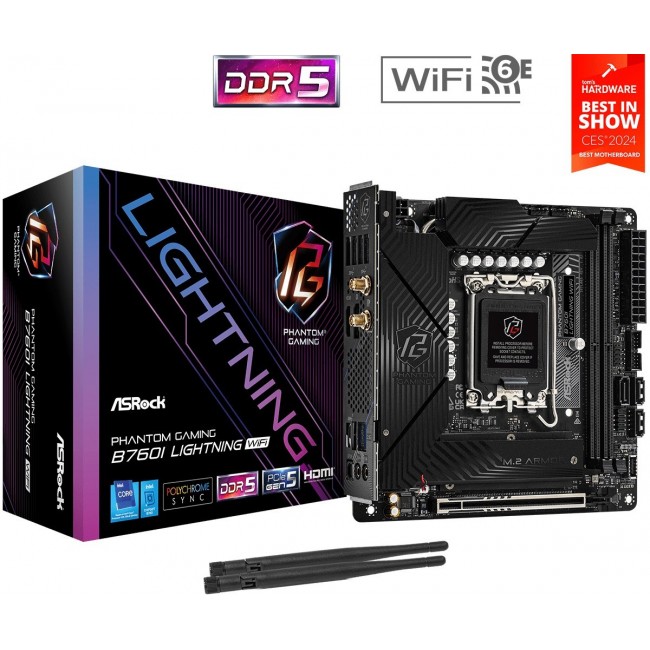

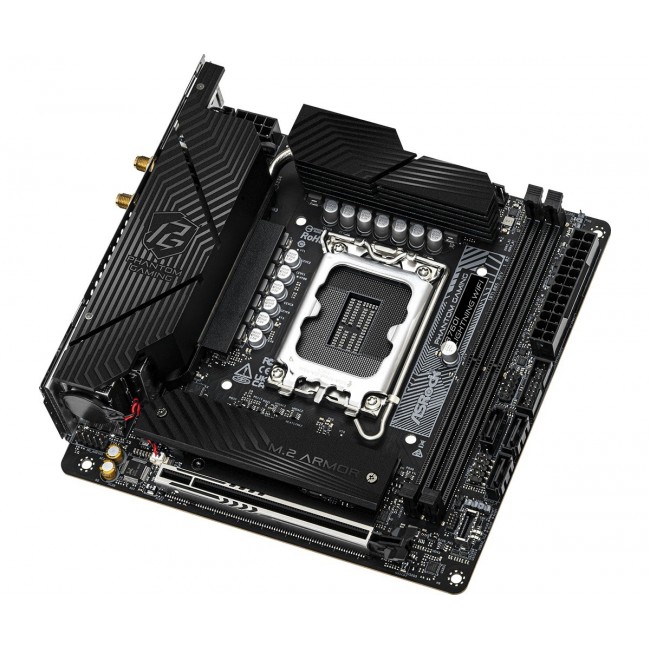

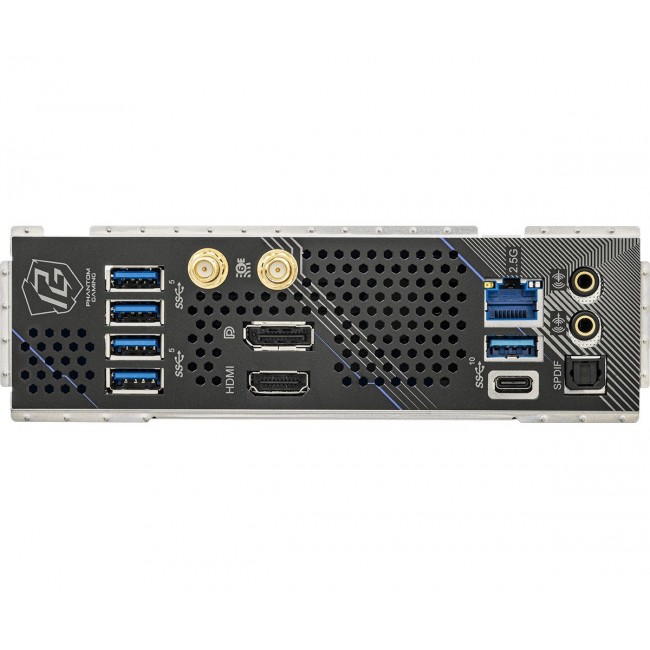

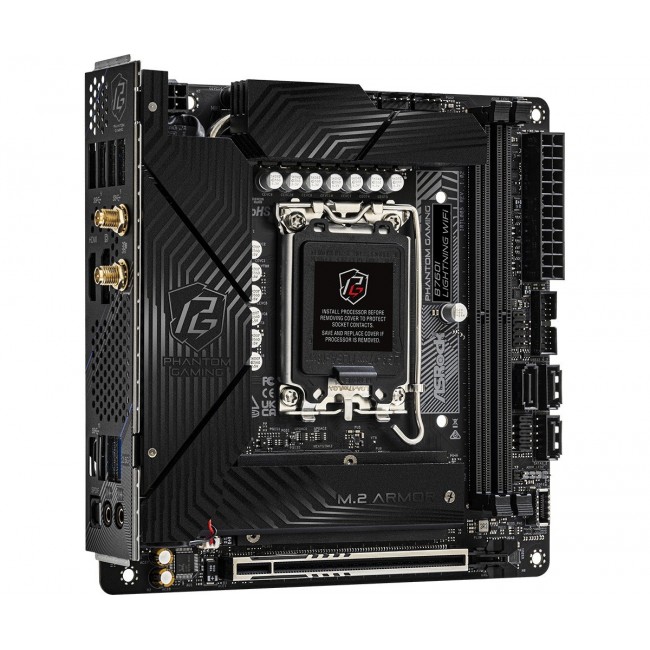

ASRock B760I LIGHTNING WIFI Motherboard
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: Asrock
- Κωδικός: PLYASR1700069
- Βάρος(kg): 1.10kg
- Διαστάσεις Συσκευασίας: 10.00cm x 23.50cm x 19.00cm
- EAN: 4710483946677
222,68€
Χωρίς ΦΠΑ: 179,58€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Cables included | SATA |
| Certification | FCC, CE, ErP/EuP |
| Compatible processor series | Intel Core i7 Intel Core i9 Intel Pentium Gold Intel Core i3 Intel Core i5 Intel Celeron |
| CPU fan connector | Yes |
| Depth | 170 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| LAN controller | Dragon RTL8125BG |
| Line-out | Yes |
| Maximum internal memory | 96 GB |
| Maximum resolution | 7680 x 4320 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| MIC input | 1 |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | Mini-ITX |
| Number of addressable LED slots | 2 |
| Number of chassis fan connectors | 2 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 3 |
| Number of storage drives supported | 5 |
| Number of USB 3.2 Gen 1 ports | 4 |
| Number of USB 3.2 Gen 2 Type-A ports | 1 |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Black |
| RAID levels | 5 0 1 |
| RAID support | Yes |
| Screws included | Yes |
| SPDIF optical output | Y |
| Supported memory clock speed (max) | 8600 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6E (802.11axe) |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB connector type | USB Type-A USB Type-C |
| USB Type-C socket on the front panel | Y |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b Wi-Fi 5 (802.11ac) 802.11 axe 802.11a Wi-Fi 6 (802.11ax) Wi-Fi 6E (802.11ax) 802.11g Wi-Fi 4 (802.11n) |
| Width | 170 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 10 x64 Windows 11 x64 |
