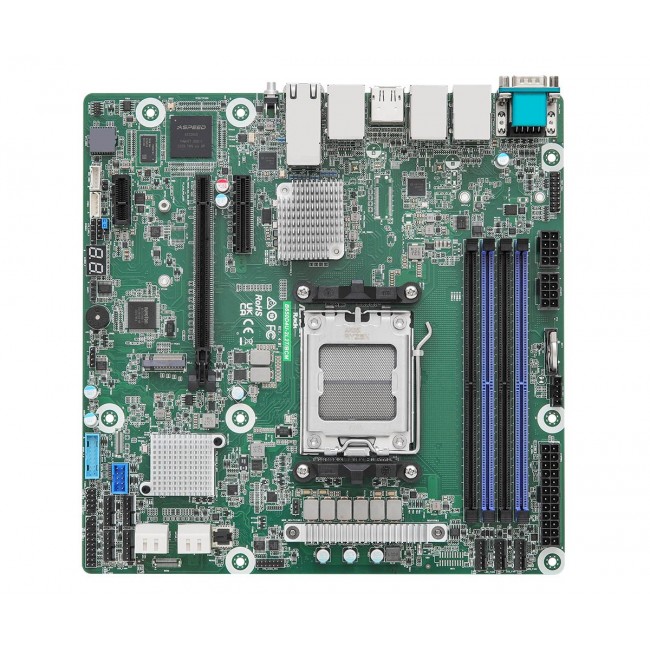

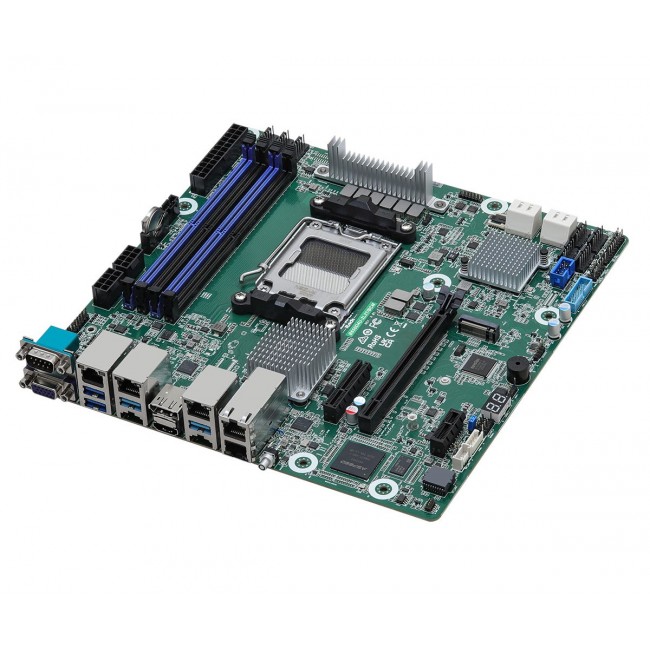

Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: Asrock
- Κωδικός: WLONONWCRAYCG
- Βάρος(kg): 1.12kg
- Διαστάσεις Συσκευασίας: 28.50cm x 30.50cm x 7.00cm
- EAN: 4711430520964
724,42€
Χωρίς ΦΠΑ: 584,21€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| ATX Power connector (24-pin) | Yes |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 5 AMD Ryzen 3 |
| Depth | 243.8 mm |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 10 Gigabit Ethernet Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Guarantee | F024M |
| HDMI ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Maximum internal memory | 32 GB |
| Maximum number of SMP processors | 1 |
| Memory slots type | DIMM |
| Memory voltage | 1.1 V |
| Motherboard chipset | AMD B650 Express |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of COM connectors | 1 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| On-board graphics card model | Aspeed AST2600 |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 C |
| PC health monitoring | Fan CPU Voltage |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| RAID levels | 0 10 1 |
| RAID support | Yes |
| Serial ports quantity | 1 |
| Storage temperature (T-T) | -40 - 70 C |
| Supported memory clock speed (max) | 5200 MHz |
| Supported memory clock speeds | 5200 3600 |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| Top Wi-Fi standard | Not available |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Warnings | Avoid contact with liquids to prevent electronic damage. Dispose of in accordance with local regulations for electronic waste. Do not disassemble to avoid damage to internal components and loss of warranty. |
| Wi-Fi | No |
| Width | 243.8 mm |
