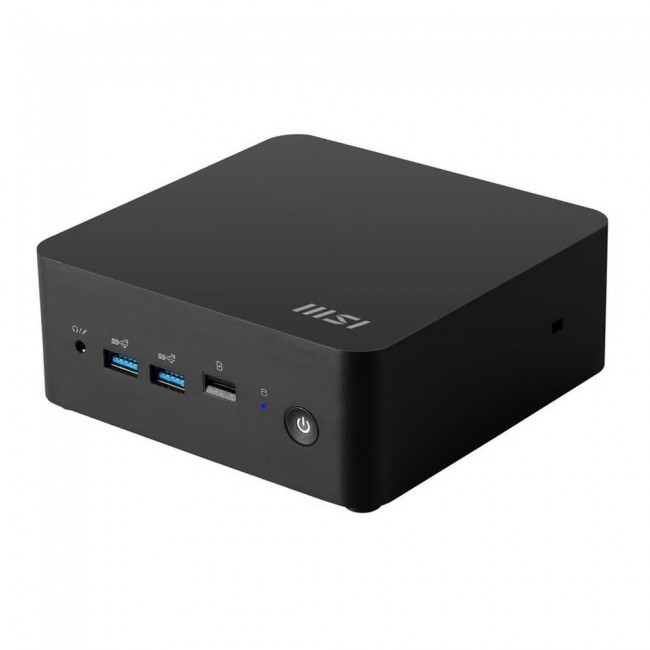

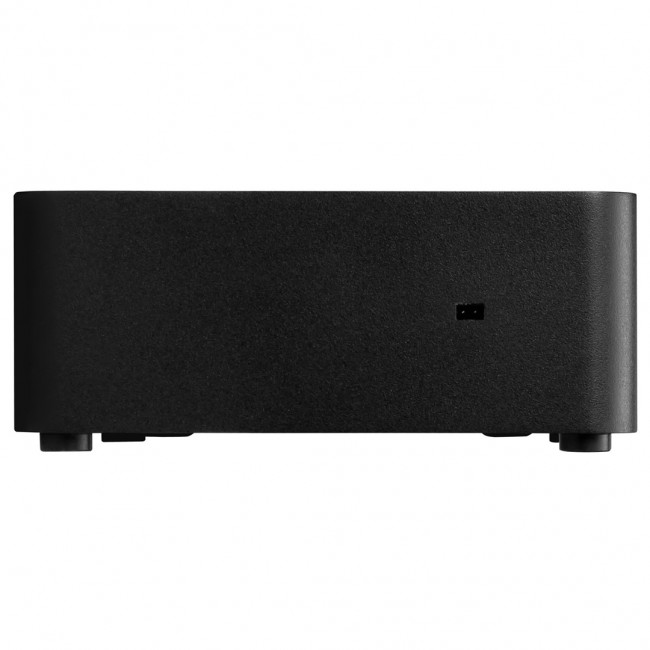

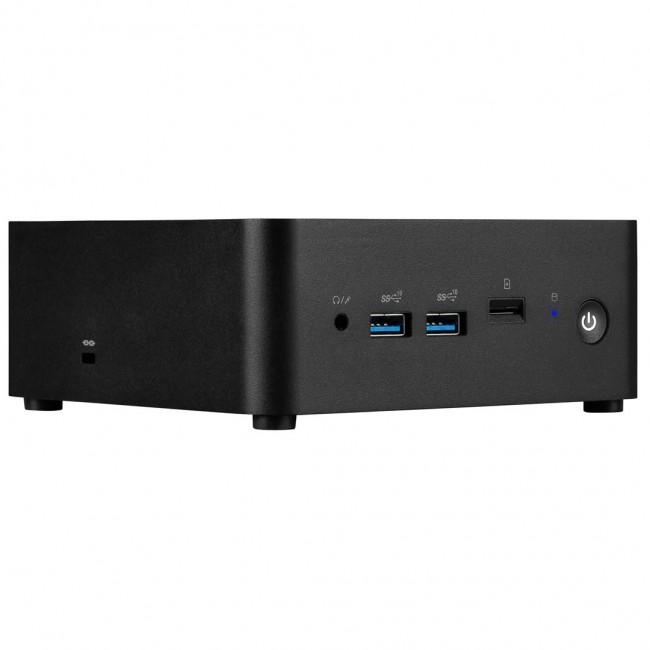

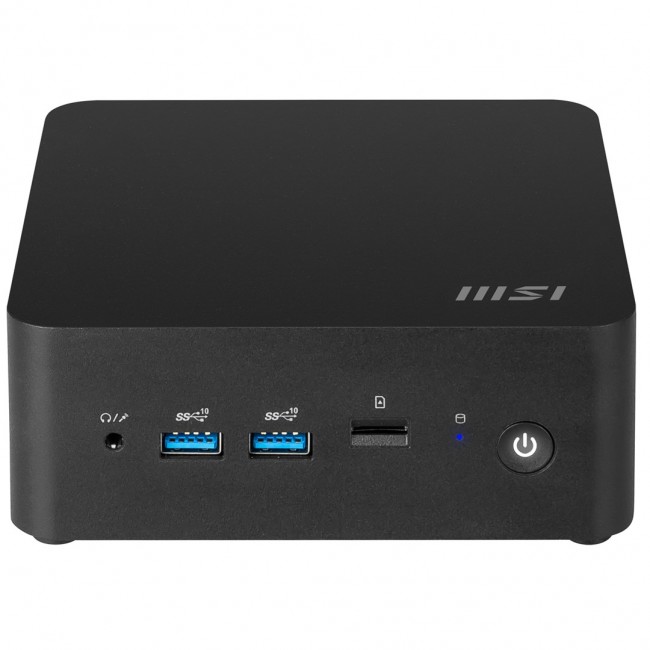

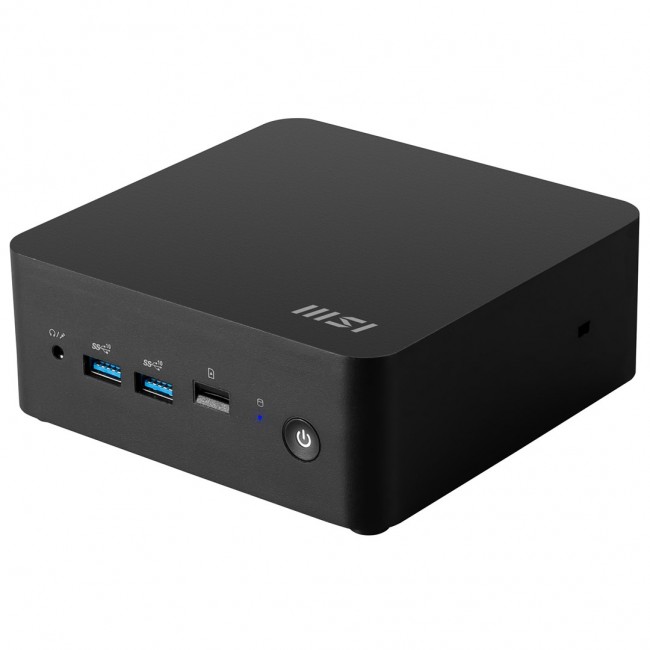

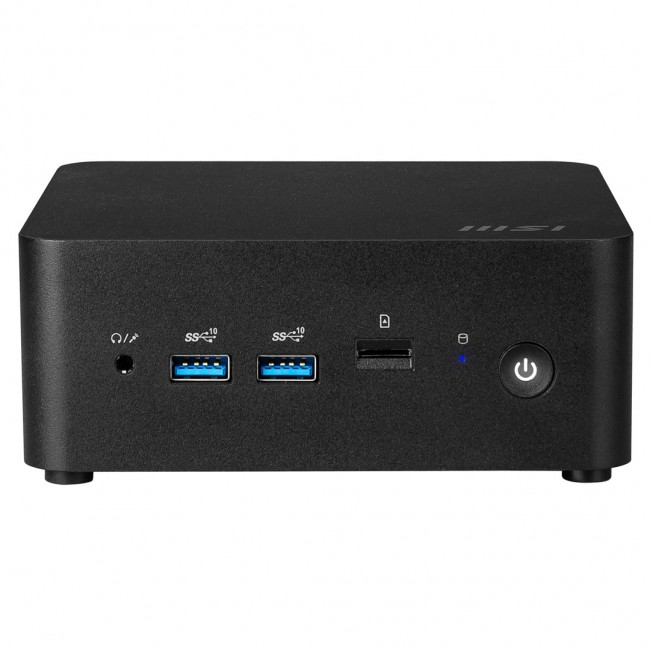

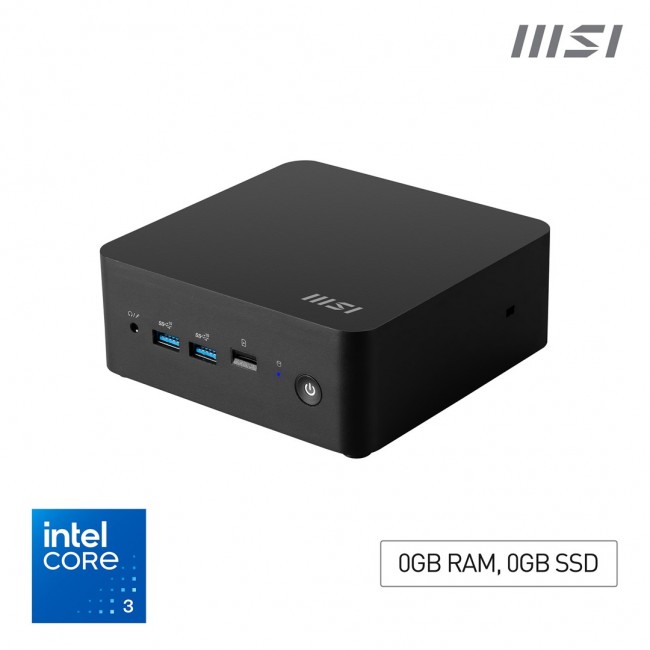

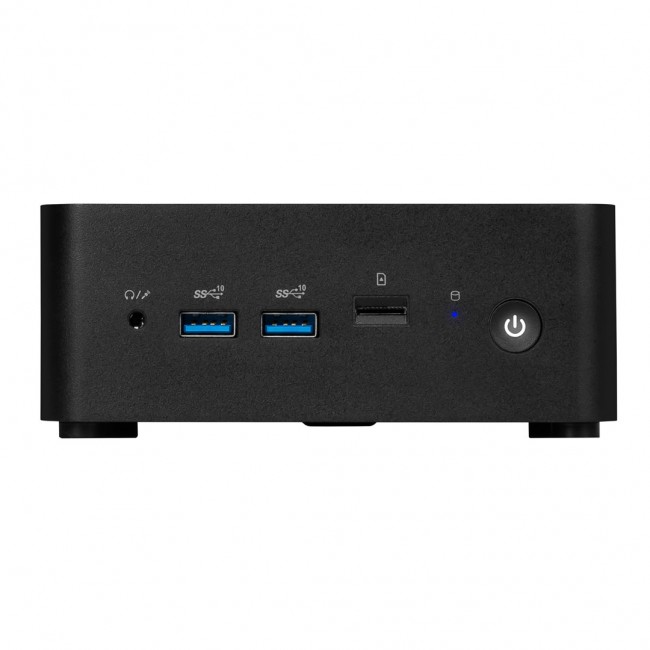

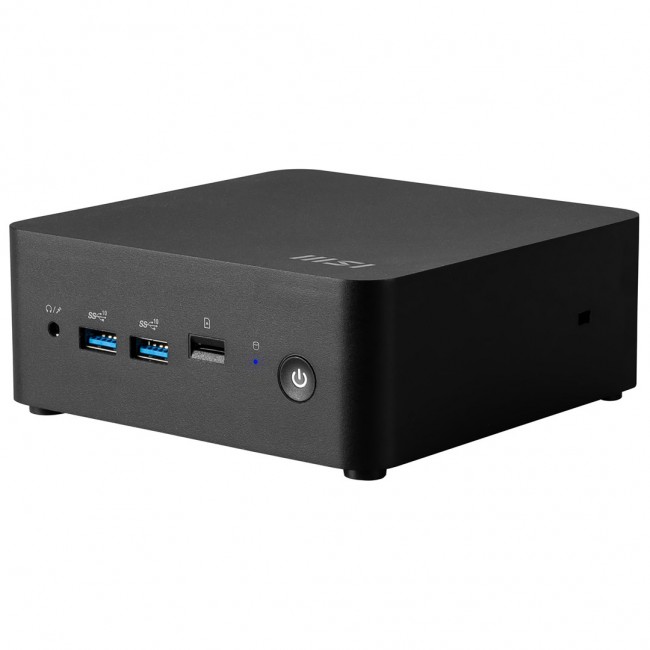

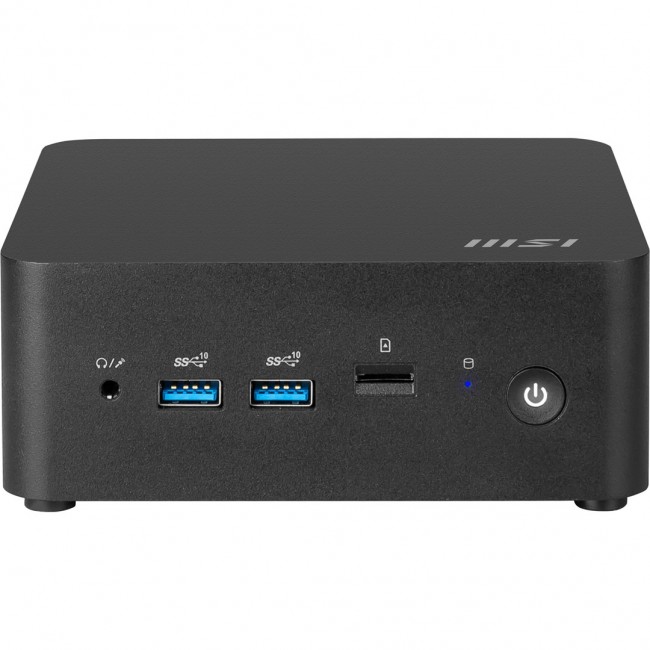

MSI Cubi NUC 1M Intel Core 3 100U (14th Gen - Series 1) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA - NUC 1M i3 100U BB
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: MSI
- Κωδικός: WLONONWCRUXEY
- Βάρος(kg): 1.48kg
- Διαστάσεις Συσκευασίας: 9.50cm x 22.00cm x 21.00cm
- EAN: 4711377264402
436,13€
Χωρίς ΦΠΑ: 351,71€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| AC adapter included | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Built-in processor | Yes |
| Built-in speaker(s) | No |

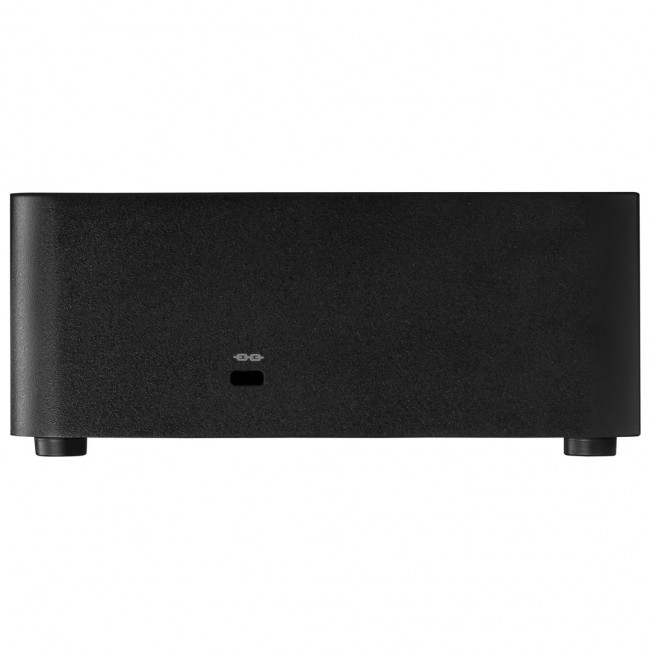

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Card reader integrated | Yes |
| CardBus PCMCIA slot type | No |
| Chassis type | Mini PC |
| Combo headphone/mic port | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Consumer infrared headers | No |
| Cooling type | Active |

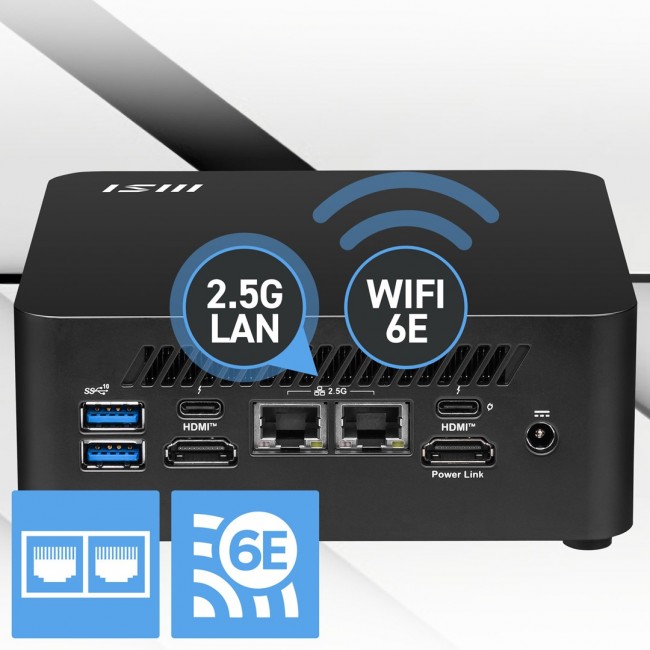

| Copper ethernet cabling technology | 2.5GBASE-T |
| Country of origin | China |
| DC-in jack | Yes |

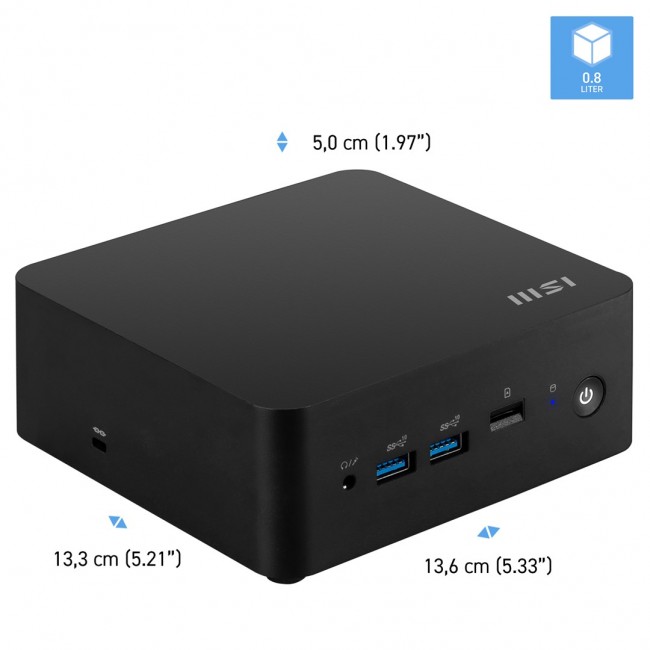

| Depth | 135.6 mm |
| Display included | No |
| Drivers included | Yes |
| DVI port | No |
| Efficient cores | 4 |
| Efficient-core base frequency | 0.9 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Ethernet LAN | Yes |

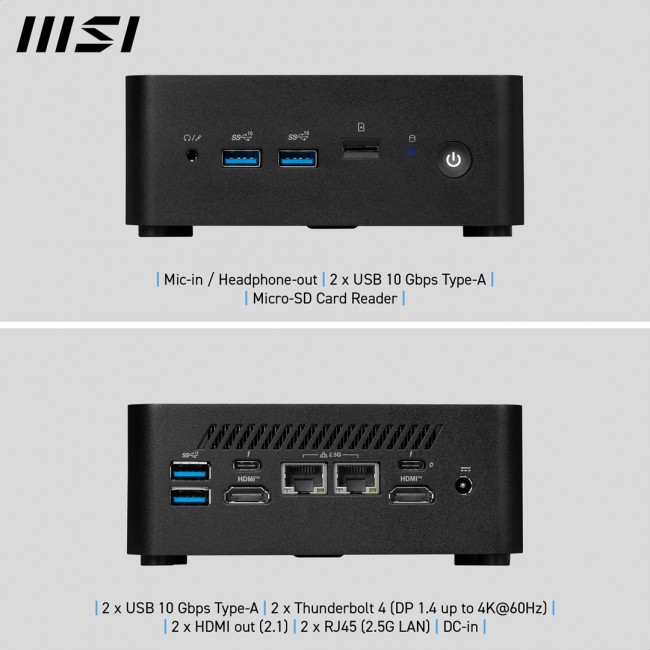

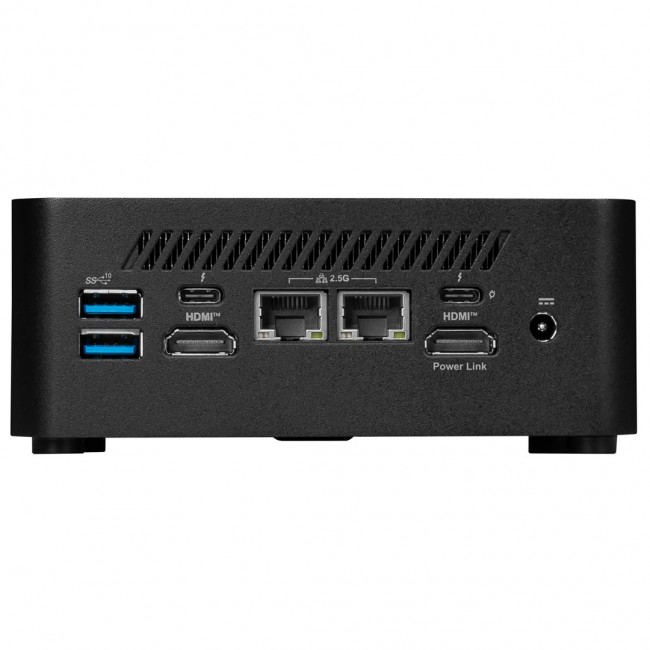

| Ethernet LAN (RJ-45) ports | 2 |
| Graphics card family | Intel |
| Guarantee | G024M |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| Height | 50.1 mm |
| Housing material | Plastic |
| Introduction month | July |
| Introduction year | 2024 |
| Keyboard included | No |
| LAN controller | Intel I226-V |
| LED indicators | System |
| Maximum internal memory | 64 GB |

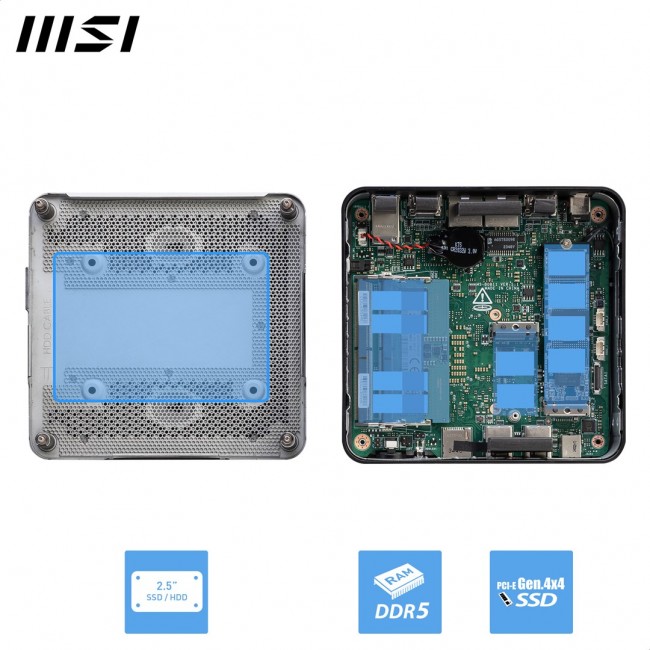

| Memory slots type | SO-DIMM |
| Microphone in | No |
| Motherboard chipset | Intel SoC |
| Motherboard form factor | NUC |
| Mouse included | No |
| Near Field Communication (NFC) | No |
| Number of displays supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 2 |
| Number of power supply units | 1 |
| Number of processors supported | 1 |
| Number of storage drives supported | 3 |
| NVMe | Yes |
| On-board graphics card model | Intel Graphics |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 0 - 85% |
| Operating system installed | No |
| Operating temperature (T-T) | 0 - 35 C |
| Optical drive type | No |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.38 kg |
| Package width | 205 mm |

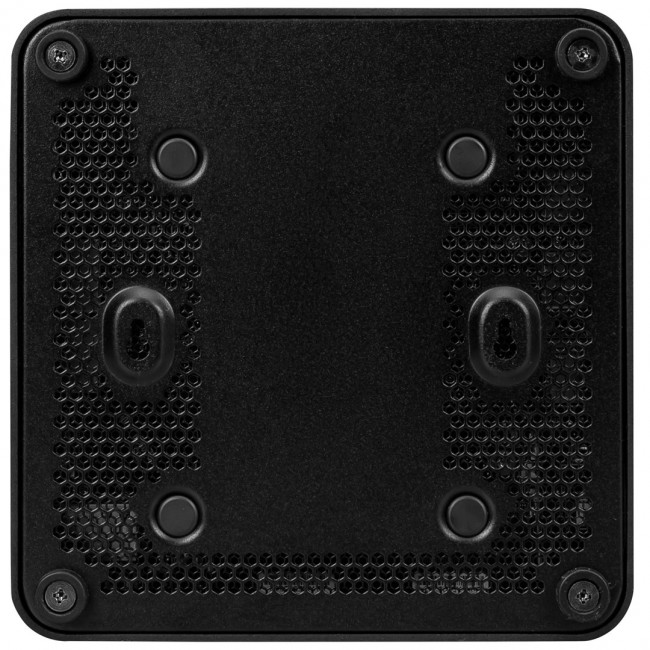

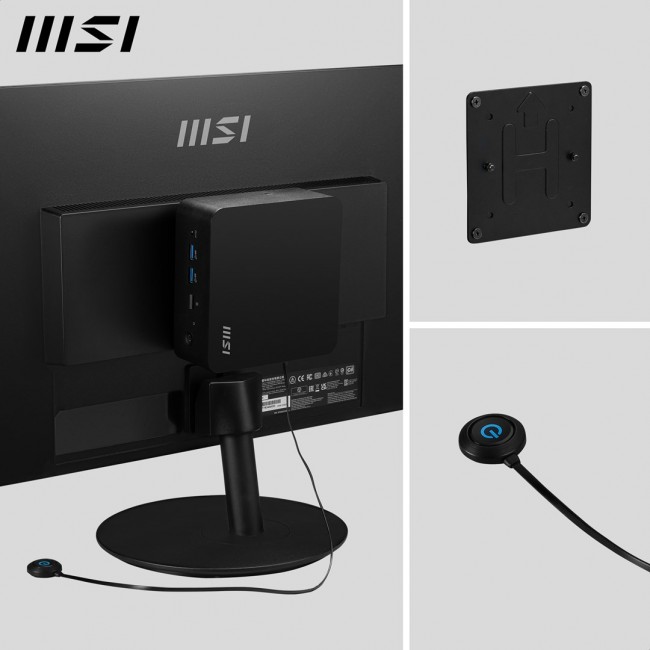

| Panel mounting interface | 100 x 100 mm |
| Performance cores | 2 |
| Performance-core base frequency | 1.2 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Power cord included | Yes |
| Power supply | 120 W |
| Power supply type | External AC adapter |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Processor cores | 6 |
| Processor family | Intel Core 3 |
| Processor generation | Intel Core (Series 1) |
| Processor manufacturer | Intel |
| Processor model | 100U |
| Processor threads | 8 |
| Product colour | Black |
| Product type | Mini PC |
| Quick start guide | Yes |
| S/PDIF out port | No |
| Serial port via internal header | No |
| SSD form factor | M.2 |
| Storage drive interface | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5" M.2 |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 C |
| Supported memory clock speeds | 5200 |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | HDD & SSD |
| Sustainability certificates | Forest Stewardship Council (FSC) ENERGY STAR Post-Consumer Recycled Plastic |
| Thunderbolt 4 ports quantity | 2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| TV-out | No |

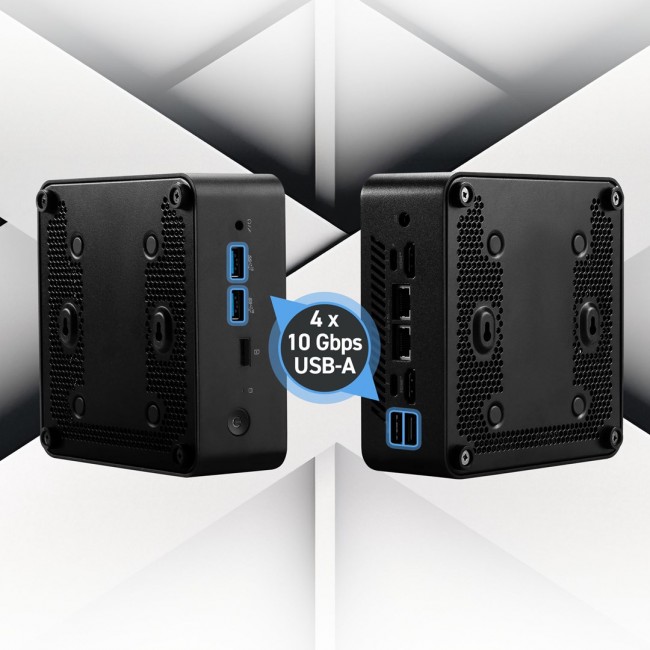

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB charging | Yes |

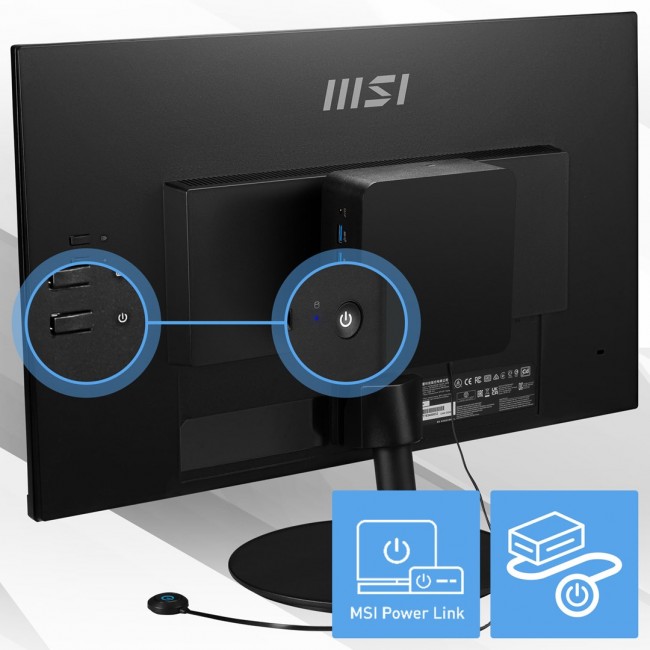

| VESA mounting | Yes |
| Warranty period | 2 year(s) |
| Weight | 630 g |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Width | 132.5 mm |
| Windows operating systems supported | Windows 11 Enterprise Windows 11 Pro Windows 11 Home Windows 11 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
