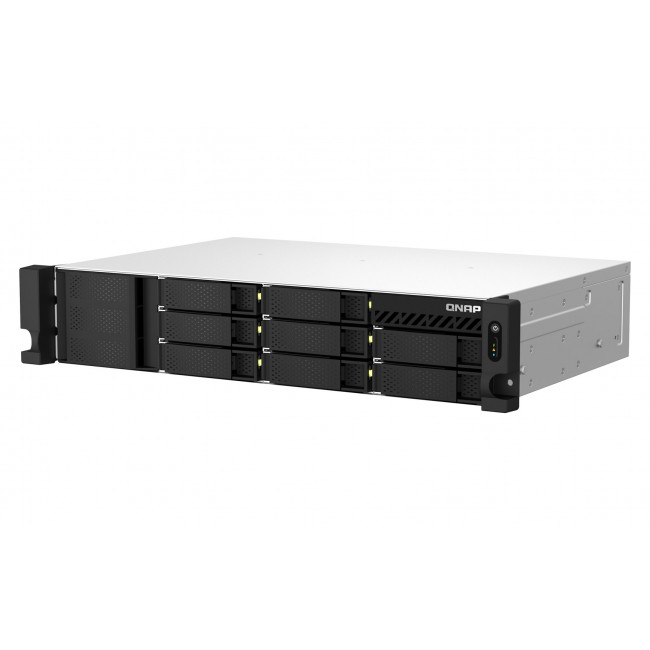

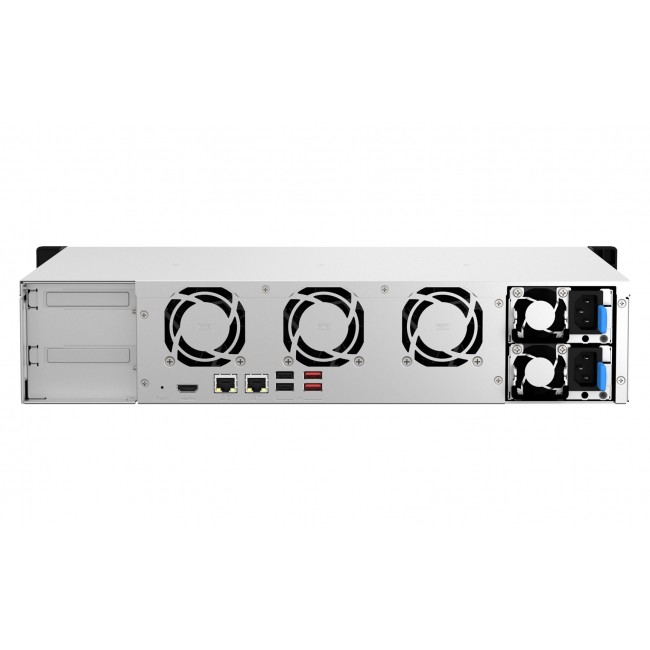

QNAP TS-864EU-RP-8G NAS/storage server Rack (2U) Ethernet LAN Black
- Διαθεσιμότητα: Από 4 έως 6 Εργάσιμες
- Κατασκευαστής: QNAP
- Κωδικός: NASQNANAS0311
- Βάρος(kg): 10.74kg
- Διαστάσεις Συσκευασίας: 21.00cm x 59.20cm x 53.50cm
- EAN: 4711103082188
2.353,49€
Χωρίς ΦΠΑ: 1.897,98€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
AC input voltage | 100 - 240 V |
Access Control List (ACL) | Yes |
Backup features | iSCSI LUN |
Backup function | Yes |
Browser supported | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
Built-in FTP server | Yes |
Buzzer | Yes |
Cables included | AC LAN (RJ-45) |
Chassis type | Rack (2U) |
Concurrent connections | 1500 |
Cooling type | Active |
Depth | 346.4 mm |
Device class | Small & Medium Business |
DHCP server | Yes |
Dynamic DNS (DDNS) | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 1000 Mbit/s 100 Mbit/s 2500 |
Fan diameter | 8 cm |
Fan voltage | 12 V |
Flash memory | 4000 MB |
Guarantee | F036M |
Harmonized System (HS) code | 84714100 |
HDMI ports quantity | 1 |
HDMI version | 1.4b |
Height | 88.6 mm |
Hot spare | Yes |
Hot-swap drive bays | Yes |
Installed storage drive type | No |
Internal memory | 8 GB |
Internal memory type | DDR4 |
iSCSI support | Yes |
Jumbo frames support | Yes |
LED indicators | Yes |
Linux operating systems supported | Yes |
Mac operating systems supported | Yes |
Maximum RAM supported | 16 GB |
Memory form factor | SO-DIMM |
Memory slots | 2 |
Multilingual support | Yes |
Number of fans | 2 fan(s) |
Number of power supply units | 2 |
Number of processors supported | 1 |
Number of screws | 56 |
Number of storage drives supported | 8 |
On-board graphics card model | Intel UHD Graphics |
On/off switch | Yes |
Online RAID expansion | Yes |
Online RAID migration | Yes |
Operating relative humidity (H-H) | 5 - 95% |
Operating system installed | QNAP Turbo System |
Operating system version | 5.0.0 |
Operating temperature (T-T) | 0 - 40 C |
Package weight | 10.5 kg |
Power consumption (sleep) | 31.742 W |
Power consumption (typical) | 55.83 W |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 300 W |
Processor boost frequency | 2.9 GHz |
Processor cores | 4 |
Processor family | Intel Celeron |
Processor manufacturer | Intel |
Processor threads | 4 |
Product colour | Black |
RAID levels | 60 50 0 5 6 1 10 JBOD |
RAID support | Yes |
Reset button | Yes |
S.M.A.R.T. support | Yes |
Security algorithms | SNMPv2 256-bit AES SNMPv3 HTTPS FIPS 140-2 |
Snapshot | Yes |
Storage drive interface | Serial ATA III |
Storage drive sizes supported | 2.5 3.5" |
Storage drives installed | No |
Storage relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -20 - 70 C |
Supported file systems | ext3 NTFS HFS+ ext4 FAT32 |
Supported storage drive interfaces | Serial ATA II, Serial ATA III |
Supported storage drive types | HDD & SSD |
System log | Yes |
Type | NAS |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB port | Yes |
Wake-on-LAN ready | Yes |
Web-based management | Yes |
Weight | 7.9 kg |
Width | 482.1 mm |
Windows operating systems supported | Yes |
