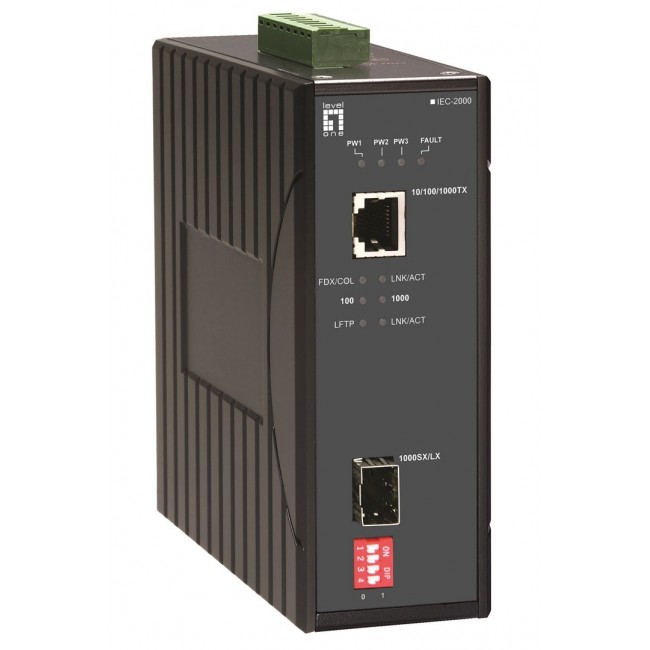

LevelOne RJ45 to SFP Gigabit Industrial Media Converter, -40 C to 75 C
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRRWW8
- Βάρος(kg): 0.15kg
- Διαστάσεις Συσκευασίας: 26.60cm x 35.90cm x 23.50cm
- EAN: 4015867184103
402,33€
Χωρίς ΦΠΑ: 324,46€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Certification | - ISO9001 - FCC Part 15, Class A - EN61000-6-3 - EN55022 - EN61000-3-2 - EN61000-3-3 - EN61000-6-2 - EN61000-4-2 - EN61000-4-3 - EN61000-4-4 - EN61000-4-5 - EN61000-4-6 - EN61000-4-8 - IEC60068-2-6 Fc - IEC60068-2-27 Ea - FED STD 101C Method 5007.1 |
| Connectivity technology | Wired |
| Converter input interface | 1000Base-TX 100Base-TX 10Base-T |
| Converter output interface | 1000Base-LX 1000Base-SX |
| Country of origin | Taiwan |
| Depth | 110 mm |
| DIN rail mounting | Yes |
| Duplex system | Half Full |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s 100 10 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Guarantee | G024M |
| Harmonized System (HS) code | 85176990 |
| Height | 135 mm |
| Housing material | Aluminium |
| Input voltage | 12 - 48 V |
| Internal | No |
| International Protection (IP) code | IP30 |
| LED indicators | Link Activity Status Power |
| Maximum data transfer rate | 1000 Mbit/s |
| Mean time between failures (MTBF) | 665760 h |
| Networking standards | IEEE 802.3x IEEE 802.3 IEEE 802.3ab IEEE 802.3z IEEE 802.3u |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 C |
| Output current (48V) | 0.16 A |
| Package depth | 92 mm |
| Package height | 236 mm |
| Package type | Box |
| Package weight | 1 kg |
| Package width | 198 mm |
| Packet forwarding rate (1 Gbps) | 1488100 pps |
| Power consumption (max) | 7.68 W |
| Product colour | Black |
| Quick installation guide | Yes |
| Safety | UL508 |
| Storage temperature (T-T) | -40 - 85 C |
| Weight | 800 g |
| Width | 50 mm |
