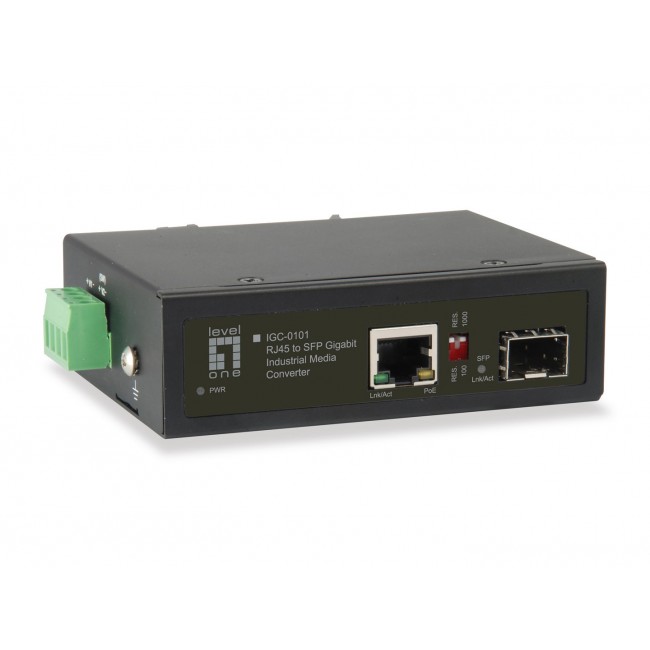

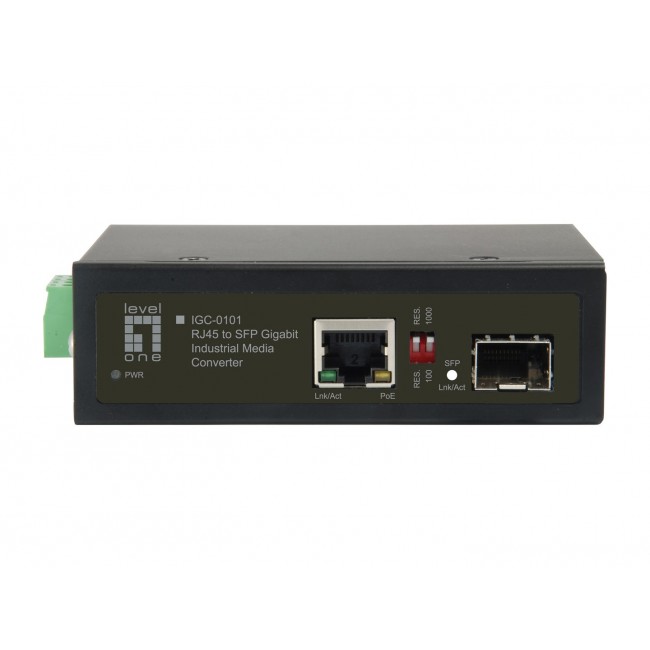

LevelOne RJ45 to SFP Gigabit Industrial Media Converter, 1 PoE Output
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRRERT
- Βάρος(kg): 0.15kg
- Διαστάσεις Συσκευασίας: 26.60cm x 35.90cm x 23.50cm
- EAN: 4015867203910
170,83€
Χωρίς ΦΠΑ: 137,77€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| Certification | CE, FCC, VCCI, FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
| Connectivity technology | Wired |
| Copper ethernet cabling technology | 1000BASE-T 10BASE-T 100BASE-TX |
| Country of origin | Taiwan |
| Depth | 81.5 mm |

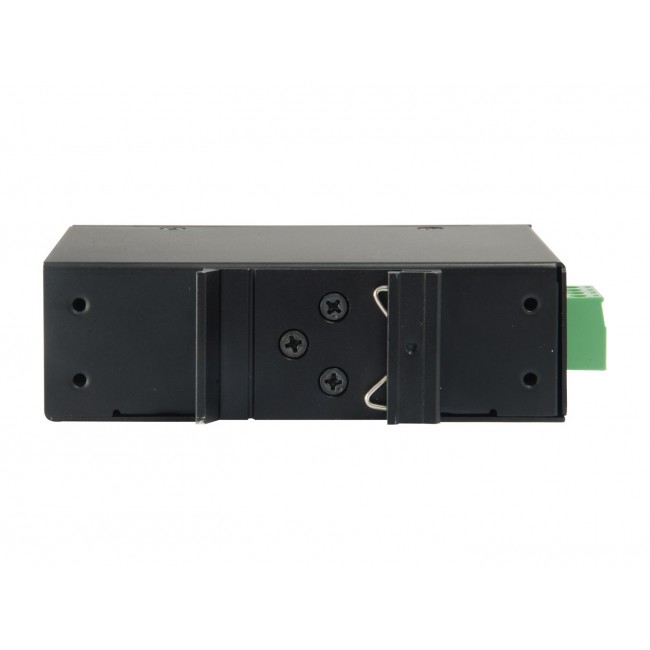

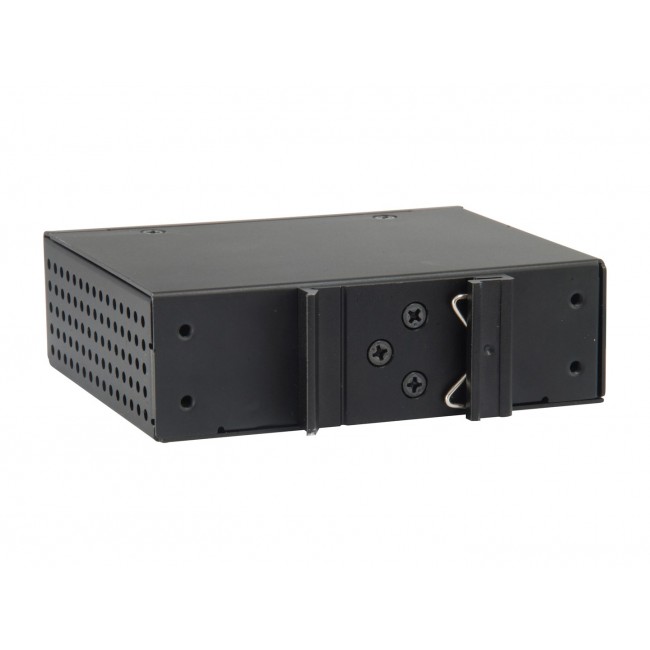

| DIN rail mounting | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s 10 100 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Flow control support | Yes |
| Guarantee | G024M |
| Harmonized System (HS) code | 85176990 |
| Height | 103.5 mm |

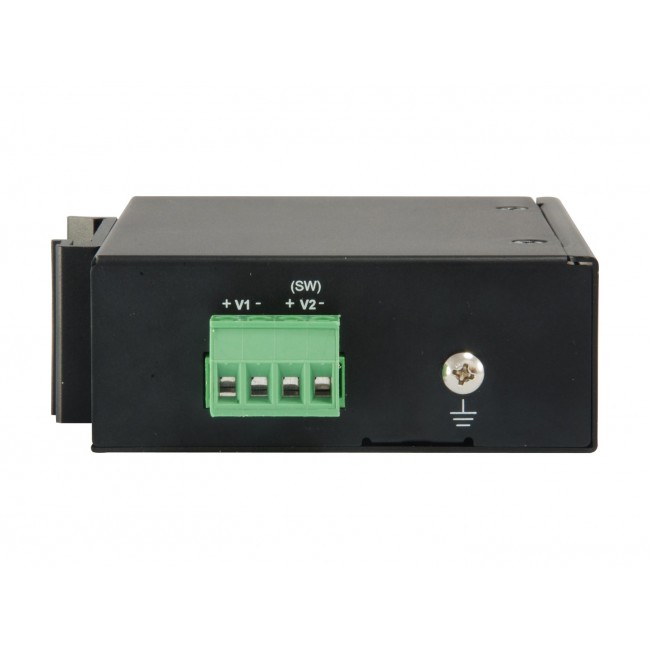

| Input voltage | 48 - 56 V |
| Internal | No |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| LED indicators | Power Activity Link |
| Manual | Yes |
| Master (outer) case gross weight | 6.6 kg |
| Master (outer) case height | 560 mm |
| Master (outer) case length | 240 mm |
| Master (outer) case width | 350 mm |
| Maximum data transfer rate | 1000 Mbit/s |
| Mean time between failures (MTBF) | 500000 h |
| Networking standards | IEEE 802.3 IEEE 802.3ab IEEE 802.3x IEEE 802.3at IEEE 802.3u IEEE 802.3z IEEE 802.3af |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 C |
| Package depth | 65 mm |
| Package height | 215 mm |
| Package weight | 350 g |
| Package width | 165 mm |
| Power consumption (typical) | 2 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 1 |
| Products per master (outer) case | 16 pc(s) |
| Safety | IEC EN60950-1 |
| Total Power over Ethernet (PoE) budget | 30 W |
| Weight | 135 g |
| Width | 32 mm |
