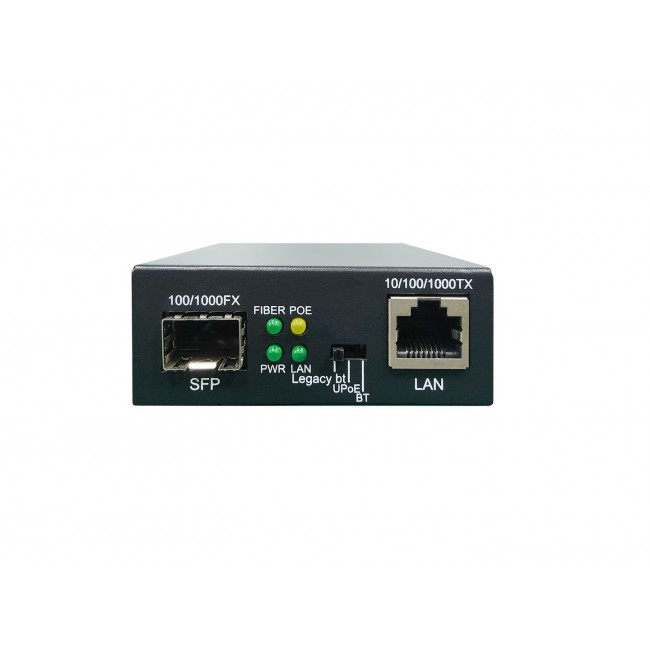

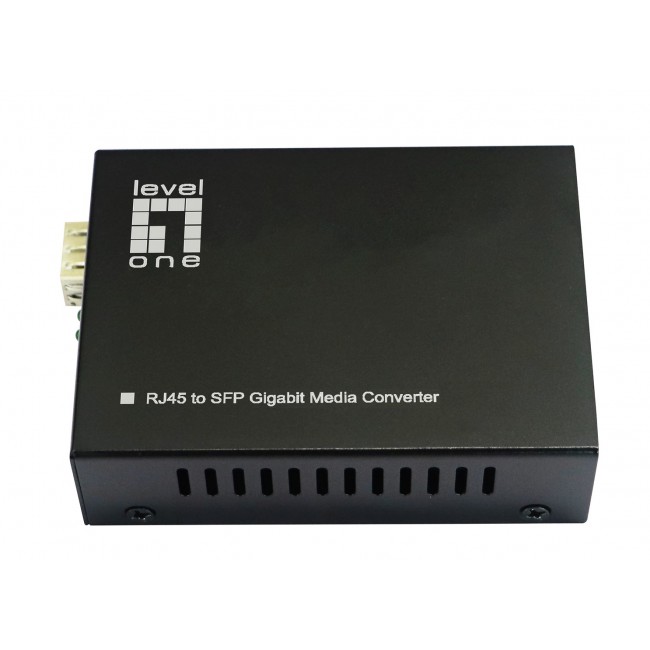

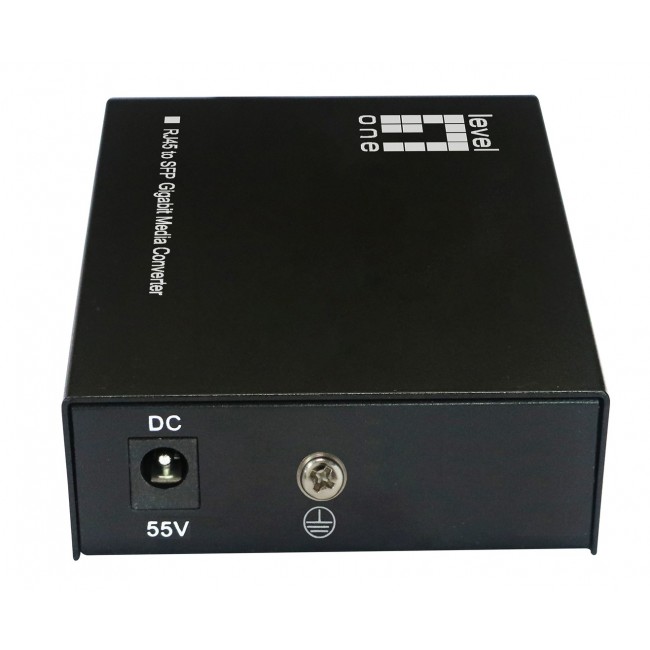

LevelOne RJ45 to SFP Gigabit Media Converter, 802.3bt 90W PoE PSE
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRRMMA
- Βάρος(kg): 0.15kg
- Διαστάσεις Συσκευασίας: 26.60cm x 35.90cm x 23.50cm
- EAN: 4015867238011
190,35€
Χωρίς ΦΠΑ: 153,51€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| AC adapter included | Yes |
| AC input frequency | 50 - 60 Hz |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Compliance certificates | RCM UKCA RoHS CE Federal Communications Commission (FCC) Low Voltage Directive (LVD) |
| Connectivity technology | Wired |
| Copper ethernet cabling technology | 10BASE-T 100BASE-TX 1000BASE-T 1000BASE-X |
| Country of origin | China |
| DC-in jack | Yes |
| Depth | 70 mm |
| Ethernet interface type | Fast Ethernet Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100 1000 Mbit/s 10 |
| Fiber mode structure | Multi-mode Single-mode |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Flow control support | Yes |
| Guarantee | G024M |
| Harmonized System (HS) code | 851762 |
| Height | 26 mm |
| Input current | 2 A |
| Input voltage | 100 - 240 V |
| Internal | No |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| LED indicators | PoE Power LAN |
| Master (outer) case gross weight | 8.62 kg |
| Master (outer) case height | 390 mm |
| Master (outer) case length | 264 mm |
| Master (outer) case width | 450 mm |
| Master (outer) cases per pallet (air) | 32 pc(s) |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3at IEEE 802.3z IEEE 802.3bt IEEE 802.3x IEEE 802.3af IEEE 802.3 IEEE 802.3ab IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 55 C |
| Output current | 2.3 A |
| Output voltage | 55 V |
| Package depth | 186 mm |
| Package height | 84 mm |
| Package weight | 937 g |
| Package width | 240 mm |
| Pallet gross length | 100 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 171 cm |
| Power consumption (max) | 105.4 W |
| Power consumption (typical) | 2.42 W |
| Product colour | Black |
| Products per master (outer) case | 10 pc(s) |
| Quick installation guide | Yes |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 80 C |
| Total Power over Ethernet (PoE) budget | 90 W |
| Weight | 351 g |
| Width | 93.5 mm |
