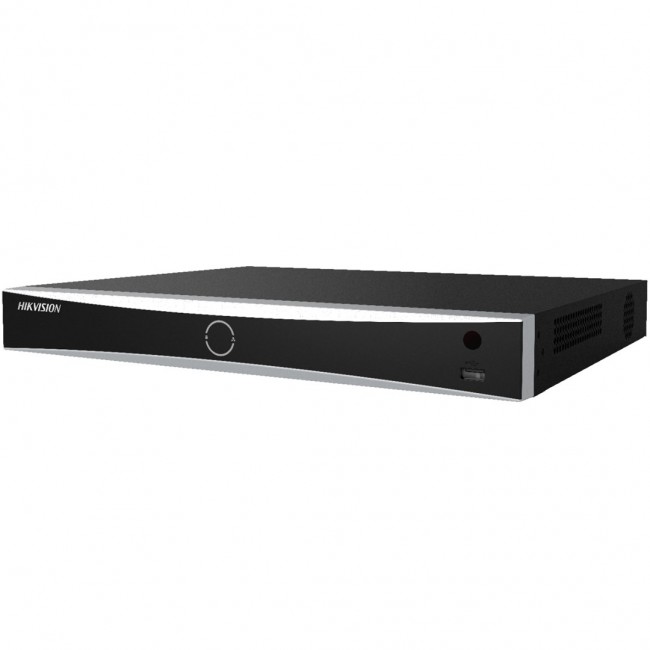

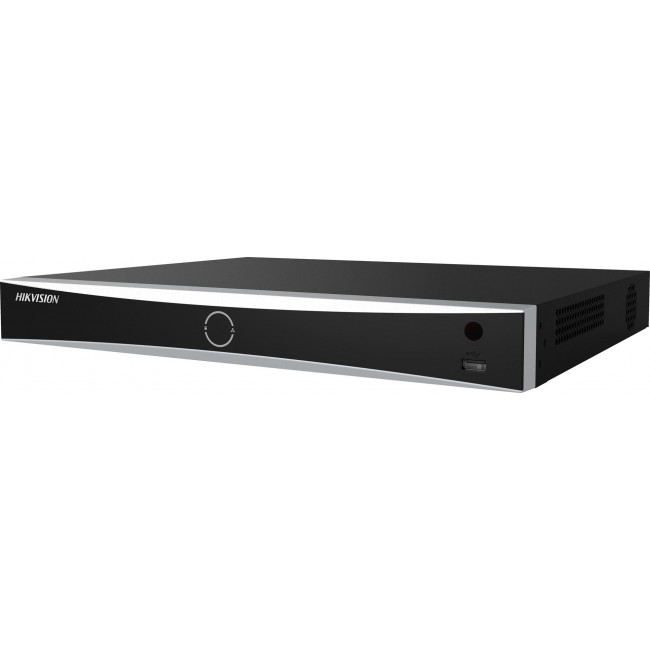

Hikvision Recorder DS-7632NXI-K2(D)
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: Hikvision
- Κωδικός: WLONONWCRJC23
- Βάρος(kg): 2.78kg
- Διαστάσεις Συσκευασίας: 39.50cm x 13.00cm x 44.00cm
- EAN: 6942160489759
287,79€
Χωρίς ΦΠΑ: 232,09€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| Alarm input channels | 4 |
| Alarm output channels | 1 |
| Audio formats supported | G.711 -law AAC G.726 G.722 G.711 A-law |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Brand compatibility | Hikvision Digital Technology |
| Built-in display | No |
| Built-in processor | No |
| Compliance certificates | CE Federal Communications Commission (FCC) |
| DC-in jack | Yes |
| Depth | 315 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100 10 1000 |
| Face detection | Yes |
| Guarantee | F024M |
| HDD interface | SATA |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Height | 52 mm |
| Input bandwidth | 256 Mbit/s |
| Internal SATA ports quantity | 2 |
| Maximum frame rate | 30 fps |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum storage capacity | 10 TB |
| Number of HDDs supported | 2 |
| Number of simultaneously playbacked channels | 16 channels |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 C |
| Output bandwidth | 160 Mbit/s |
| Output current | 3.3 A |
| Output voltage | 12 V |
| Power consumption (max) | 15 W |
| Power over Ethernet (PoE) | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Supported network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Supported resolutions | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Video formats supported | H.265+ H.265 H.264 H.264+ |
| Video input channels | 32 channels |
| Weight | 1 kg |
| Wi-Fi | No |
| Width | 385 mm |
