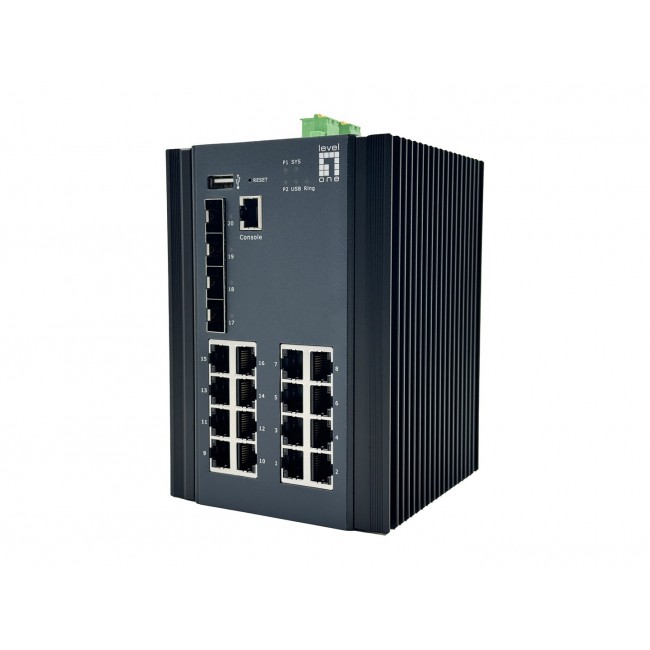

LevelOne 20-Port L2 Plus Managed Gigabit Industrial Switch, 16x 1GbE RJ45, 4x 1/2.5GbE SFP, DIN-Rail, -40 C to 80 C
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRRKSU
- Βάρος(kg): 1.45kg
- Διαστάσεις Συσκευασίας: 46.50cm x 44.50cm x 15.00cm
- EAN: 4015867238592
948,76€
Χωρίς ΦΠΑ: 765,13€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | No |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cables included | LAN (RJ-45) |
| Combo SFP ports quantity | 4 |
| Compliance certificates | UKCA RoHS CE Federal Communications Commission (FCC) |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 1000BASE-X 100BASE-TX 1000BASE-T 10BASE-T |
| Country of origin | China |
| Depth | 115 mm |
| DHCP features | DHCP server |
| DIN rail included | Yes |

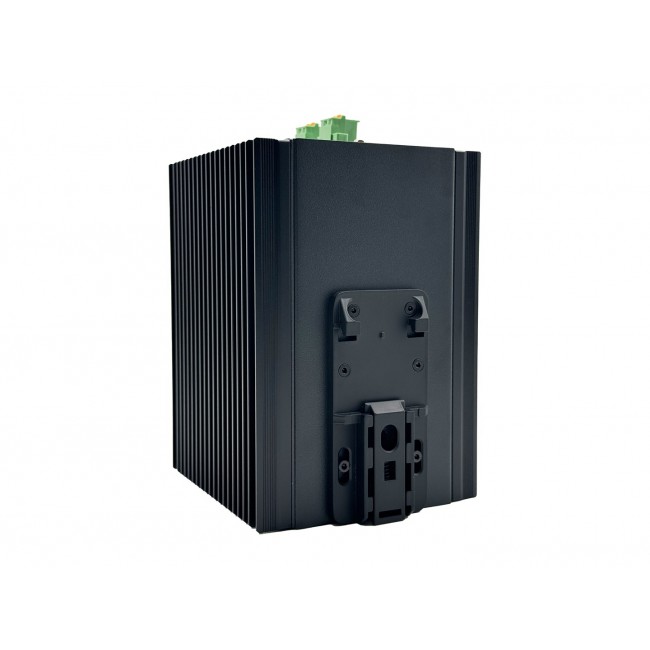

| DIN rail mounting | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Fanless | Yes |
| Flow control support | Yes |
| Forwarding rate | 77.3 Mpps |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Guarantee | G024M |
| Harmonized System (HS) code | 851762 |
| Height | 158 mm |
| IGMP snooping | Yes |
| International Protection (IP) code | IP40 |
| IP Source Guard (IPSG) | Yes |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| LED indicators | System USB Power |
| Link aggregation | Yes |
| MAC address table | 16000 entries |
| Master (outer) case gross weight | 15.2 kg |
| Master (outer) case height | 255 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case width | 580 mm |
| Master (outer) cases per pallet (air) | 26 pc(s) |
| Networking standards | IEEE 802.3 IEEE 802.3ab IEEE 802.1x IEEE 802.3ad IEEE 802.1s IEEE 802.3u IEEE 802.1ab IEEE 802.1D IEEE 802.3z IEEE 802.1Q IEEE 802.3x |
| Number of power supply units | 2 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 80 C |
| Package depth | 180 mm |
| Package height | 142 mm |
| Package weight | 2.41 kg |
| Package width | 230 mm |
| Packet buffer memory | 12 MB |
| Packet filtering | Y |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 167.4 cm |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | No |

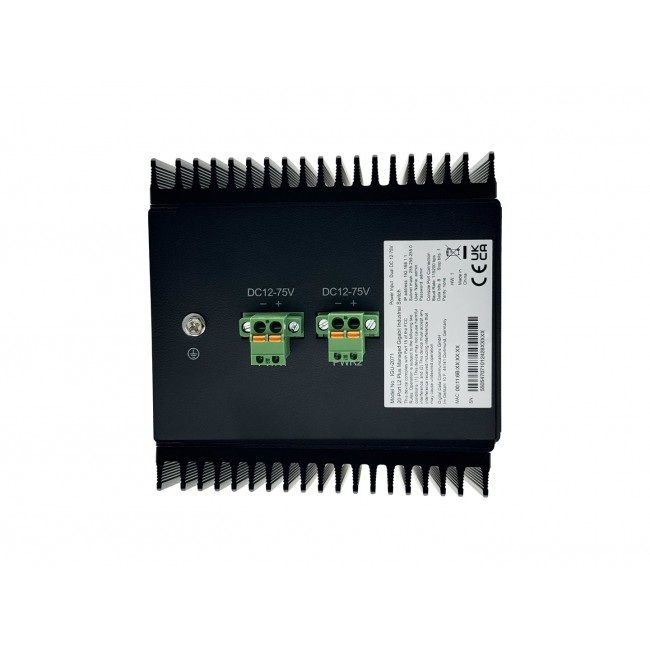

| Power source | DC |
| Power supply included | No |
| Product colour | Black |
| Products per master (outer) case | 6 pc(s) |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Redundant power supply (RPS) support | Yes |
| Spanning tree protocol | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 C |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 52 Gbit/s |
| System event log | Yes |
| Terminal block included | Yes |
| USB 2.0 ports quantity | 1 |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 2.08 kg |
| Width | 110 mm |
