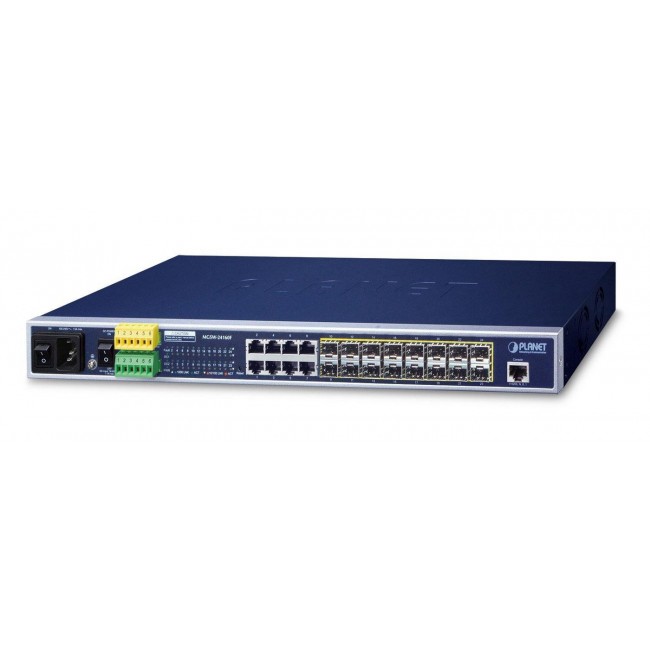

PLANET MGSW-24160F network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: Planet
- Κωδικός: WLONONWCRIAMX
- Βάρος(kg): 4.07kg
- Διαστάσεις Συσκευασίας: 55.50cm x 10.00cm x 31.50cm
- EAN: 4711213688522
840,68€
Χωρίς ΦΠΑ: 677,97€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | No |
| AC adapter included | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| Admin-edge port | Yes |
| ARP inspection | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-edge port | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| BPDU filtering/protection | Yes |
| Cables included | RS-232 |
| Compatible memory cards | Not supported |
| Console port | RS-232 |
| Copper ethernet cabling technology | 1000BASE-TX 10BASE-T 100BASE-T 100BASE-FX 1000BASE-T 100BASE-TX |
| Depth | 200 mm |
| DHCP features | DHCP client DHCP server |
| Fiber ethernet cabling technology | 1000BASE-X |
| Fiber type | Multi-mode |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Guarantee | G024M |
| Harmonized System (HS) code | 85176990 |
| Height | 44.5 mm |
| IGMP snooping | Yes |
| IP routing | Yes |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Multicast support | Yes |
| Networking standards | IEEE 802.3ad IEEE 802.1s IEEE 802.1x IEEE 802.1Q IEEE 802.3x IEEE 802.1w IEEE 802.1ab IEEE 802.3u IEEE 802.3 IEEE 802.3ab IEEE 802.1D IEEE 802.3z |
| Number of fans | 2 fan(s) |
| Number of multicast groups filtered | 255 |
| Number of queues | 8 |
| Number of trunks | 24 |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 60 C |
| Port mirroring | Yes |
| Power consumption (max) | 38 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power supply included | No |
| Product colour | Blue |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Reset button | Yes |
| Rubber feet | Yes |
| Security algorithms | SNMP SSL/TLS SSH |
| SFP module slots quantity | 16 |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -10 - 70 C |
| Store-and-forward | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 48 Gbit/s |
| System event log | Yes |
| Terminal block included | Yes |
| Terminal block port | Yes |
| Throughput | 35.6 Mpps |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| Transmission distance (max) | 120 km |
| Virtual LAN features | Port-based VLAN Protocol-based VLAN Private VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 3 kg |
| Width | 440 mm |
