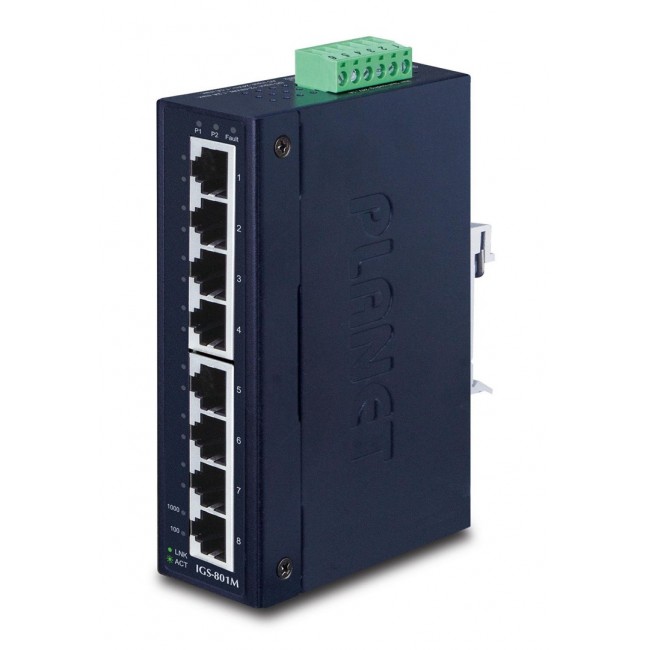

PLANET IGS-801M network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: Planet
- Κωδικός: WLONONWCRDFGK
- Βάρος(kg): 0.64kg
- Διαστάσεις Συσκευασίας: 5.00cm x 21.00cm x 15.00cm
- EAN: 4711213687266
300,76€
Χωρίς ΦΠΑ: 242,55€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | No |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication | Port-based authentication |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| BPDU filtering/protection | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T 10BASE-T 100BASE-TX |
| Depth | 87 mm |
| DIN rail mounting | Yes |
| Firmware upgradeable | Yes |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Guarantee | G024M |
| Half duplex | Yes |
| Harmonized System (HS) code | 85176990 |
| Heat dissipation | 15 BTU/h |
| Height | 135 mm |
| Housing material | Metal |
| IGMP snooping | Yes |
| International Protection (IP) code | IP30 |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| MAC address table | 8000 entries |
| Management protocols | Telnet/SNMP |
| Multicast support | Yes |
| Networking standards | IEEE 802.3 IEEE 802.3ab IEEE 802.1p IEEE 802.1Q IEEE 802.3x IEEE 802.3ad IEEE 802.1s IEEE 802.1ab IEEE 802.3az IEEE 802.3u IEEE 802.1x IEEE 802.1w |
| Number of multicast groups filtered | 256 |
| Number of queues | 8 |
| Number of VLANs | 4094 |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 C |
| Port mirroring | Yes |
| Power consumption (max) | 10 W |
| Power consumption (typical) | 4.5 W |
| Power over Ethernet (PoE) | No |
| Product colour | Blue |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Reset button | Yes |
| Security algorithms | SSH SSL/TLS |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 75 C |
| Store-and-forward | Yes |
| Supported network protocols | IPv4 / IPv6 |
| Switch layer | L2/L4 |
| Switch type | Managed |
| Switching capacity | 16 Gbit/s |
| System event log | Yes |
| Terminal block port | Yes |
| Throughput | 11.9 Mpps |
| Traffic classification | Yes |
| Virtual LAN features | Protocol-based VLAN Private VLAN Stacked VLAN Tagged VLAN |
| VLAN support | Yes |
| Wall mountable | Yes |
| Web-based management | Yes |
| Weight | 472 g |
| Width | 32 mm |
