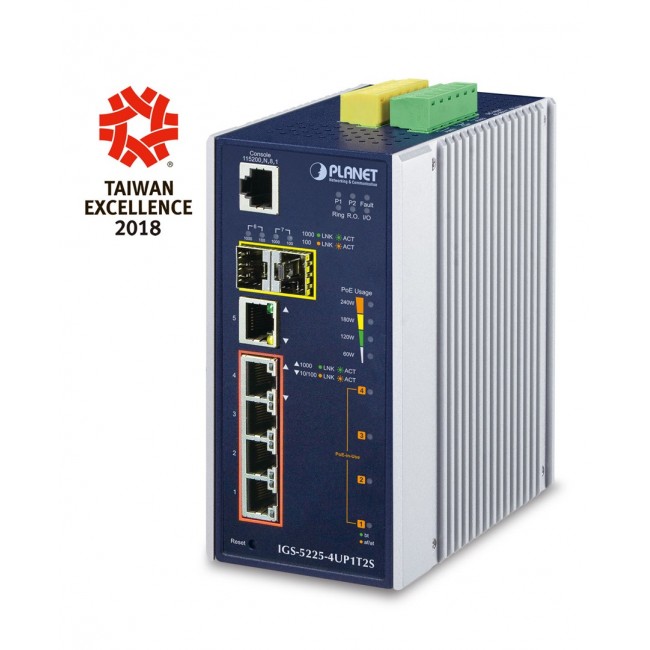

PLANET IGS-5225-4UP1T2S network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Silver
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: Planet
- Κωδικός: WLONONWCRIAR2
- Βάρος(kg): 2.15kg
- Διαστάσεις Συσκευασίας: 18.00cm x 26.00cm x 23.50cm
- EAN: 4711605282444
673,34€
Χωρίς ΦΠΑ: 543,02€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | No |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 123 |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T 1000BASE-T 100BASE-TX |
| DC input voltage | 48 - 56 V |
| Depth | 107.3 mm |
| DHCP features | DHCP snooping DHCP relay |
| DIN rail mounting | Yes |
| Fiber ethernet cabling technology | 1000BASE LX 1000BASE BX 1000BASE-FX |
| Fiber optic connector | SFP |
| Firmware upgradeable | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Guarantee | G024M |
| Harmonized System (HS) code | 85176990 |
| Heat dissipation | 962.22 BTU/h |
| Height | 152 mm |
| Housing material | Aluminium |
| IGMP snooping | Yes |
| International Protection (IP) code | IP30 |
| IP routing | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| LED indicators | System LAN PoE |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address table | 8000 entries |
| Multicast support | Yes |
| Networking standards | IEEE 802.1ab IEEE 802.1x IEEE 802.3bt IEEE 802.1ag IEEE 802.3u IEEE 802.3at IEEE 802.3ah IEEE 802.3ad IEEE 802.1s IEEE 802.1D IEEE 802.3z IEEE 802.3 IEEE 802.3ab IEEE 802.1p IEEE 802.1Q IEEE 802.3x IEEE 802.3af IEEE 802.1w |
| Number of queues | 8 |
| Number of static routes | 32 |
| Number of VLANs | 4095 |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 C |
| Packet buffer memory | 4 MB |
| Port mirroring | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 72 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Product colour | Silver Blue |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Routing entries | 32 |
| Security algorithms | SSL/TLS 802.1x RADIUS SSH SNMPv3 SNMP |
| SFP module slots quantity | 2 |
| Spanning tree protocol | Yes |
| Static route | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 C |
| Store-and-forward | Yes |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 14 Gbit/s |
| Terminal block port | Yes |
| Throughput | 10.42 Mpps |
| Total Power over Ethernet (PoE) budget | 240 W |
| Virtual LAN features | Protocol-based VLAN Tagged VLAN Private VLAN |
| VLAN support | Yes |
| Wall mountable | Yes |
| Web-based management | Yes |
| Weight | 1.05 kg |
| Width | 76.8 mm |
