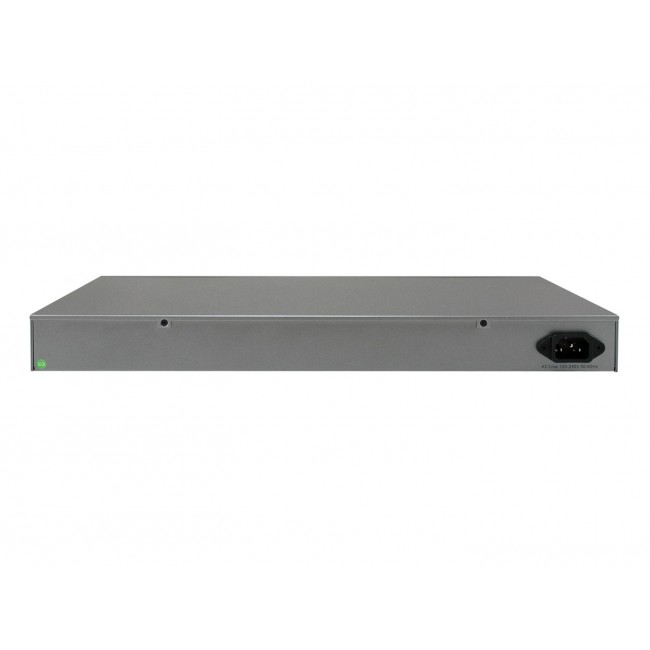

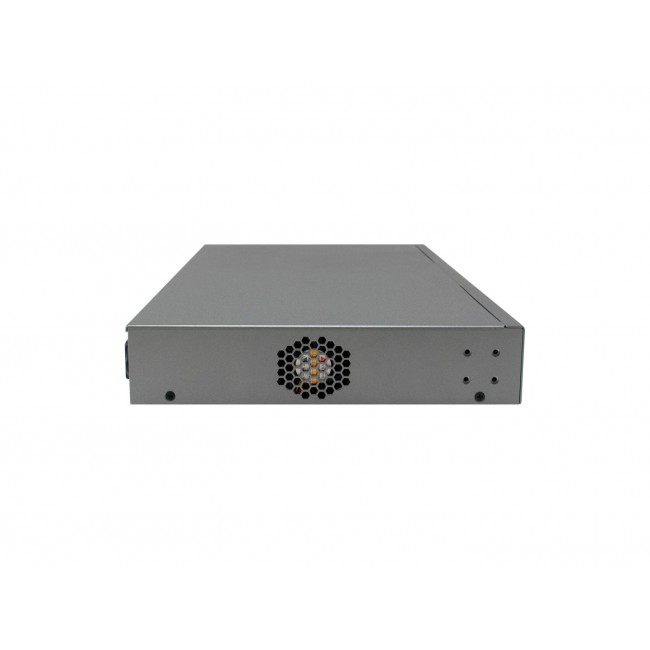

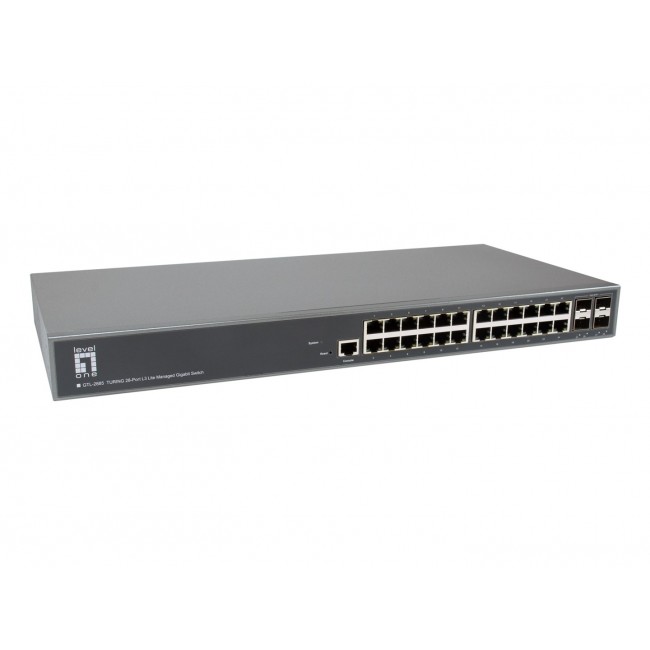

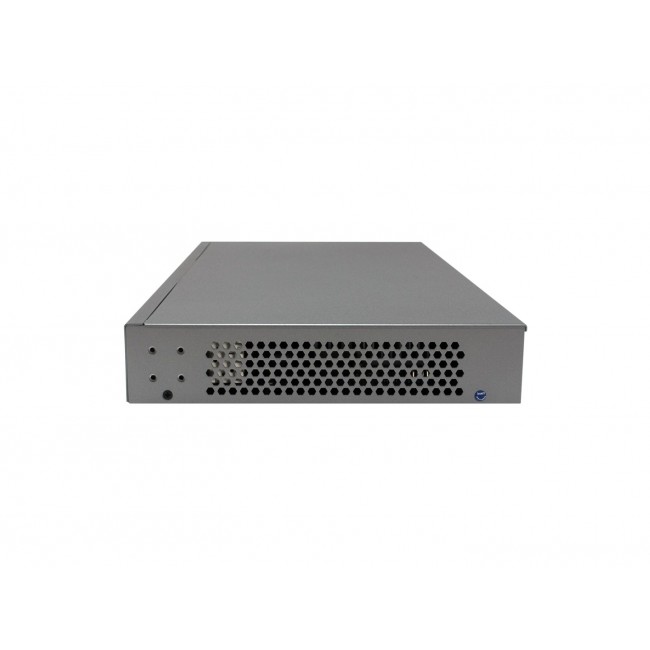

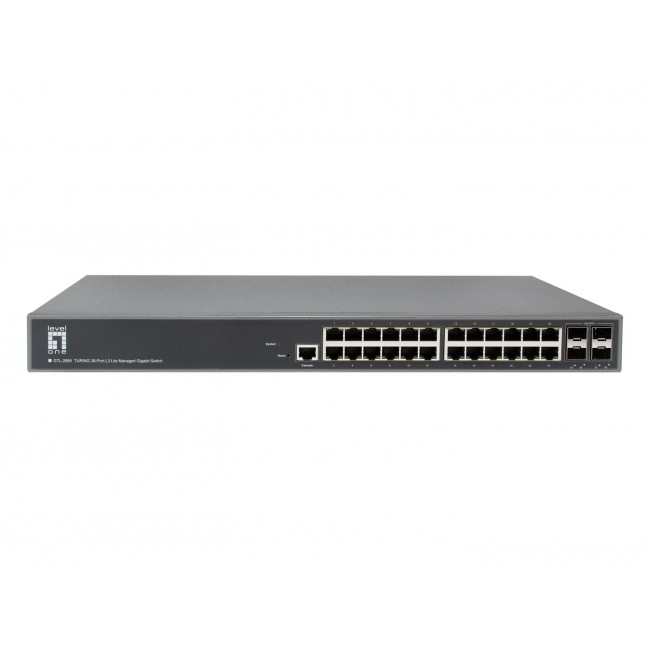

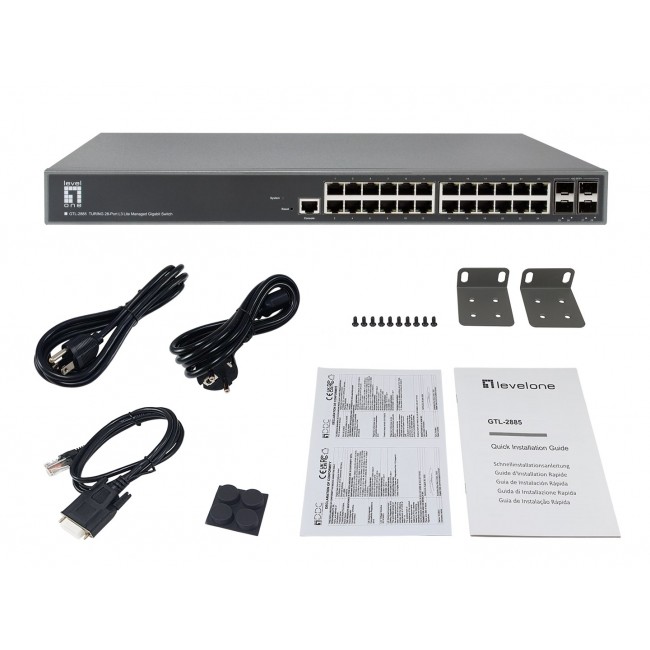

LevelOne TURING 28-Port L3 Lite Managed Gigabit Switch, 24 x 1G RJ45, 4 x 1G/10G SFP+ Uplinks
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRTF66
- Βάρος(kg): 1.70kg
- Διαστάσεις Συσκευασίας: 22.00cm x 42.00cm x 42.00cm
- EAN: 4015867243206
2.185,59€
Χωρίς ΦΠΑ: 1.762,57€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| Authentication | Guest VLAN |
| Authentication type | RADIUS, TACACS+ |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cables included | AC LAN (RJ-45) to DB9 |
| Compliance certificates | RoHS CE UKCA Low Voltage Directive (LVD) |
| Configuring Location Settings (CLI) | Yes |
| Console port | RJ-45 |
| Country of origin | Taiwan |
| Customs product code (TARIC) | 8517620000 |
| Depth | 211 mm |
| DHCP features | DHCP snooping DHCP client DHCP server DHCPv6 client DHCP Option 82 DHCPv6 server DHCP relay |
| Fanless | No |
| Firmware upgradeable | Yes |
| Forwarding rate | 95.238 Mpps |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Guarantee | G024M |
| Height | 44 mm |
| IGMP snooping | Yes |
| IP Source Guard (IPSG) | Yes |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| MAC address table | 32000 entries |
| Master (outer) case gross weight | 20 kg |
| Master (outer) case height | 326 mm |
| Master (outer) case length | 492 mm |
| Master (outer) case width | 540 mm |
| Master (outer) cases per pallet (air) | 14 pc(s) |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast MAC address table | 1024 entries |
| Multicast support | Yes |
| Networking standards | IEEE 802.1ab IEEE 802.3z IEEE 802.3ae IEEE 802.1v IEEE 802.1x IEEE 802.3u IEEE 802.1D IEEE 802.3 IEEE 802.3ab IEEE 802.1p IEEE 802.1w IEEE 802.3az IEEE 802.3ad IEEE 802.1s IEEE 802.1Q |
| Number of VLANs | 4096 |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 50 C |
| Package depth | 300 mm |
| Package height | 90 mm |
| Package weight | 3.8 kg |
| Package width | 520 mm |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 177.5 cm |
| Plug and Play | Yes |
| Port mirroring | Yes |
| Power connector | AC-in jack |
| Power consumption (max) | 30 W |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Product colour | Grey |
| Products per master (outer) case | 5 pc(s) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Rubber feet | Yes |
| sFlow | Yes |
| SFP+ module slots quantity | 4 |
| Spanning tree protocol | Yes |
| Static route | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 128 Gbit/s |
| System event log | Yes |
| Traffic classification | Yes |
| Virtual LAN features | IP subnet based VLAN MAC address-based VLAN Protocol-based VLAN Port-based VLAN Private VLAN Voice VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 2.67 kg |
| Width | 442 mm |
