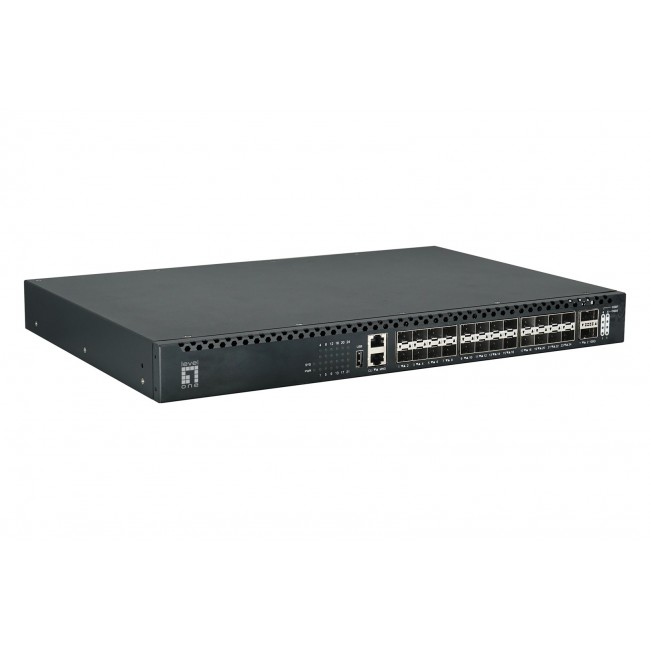

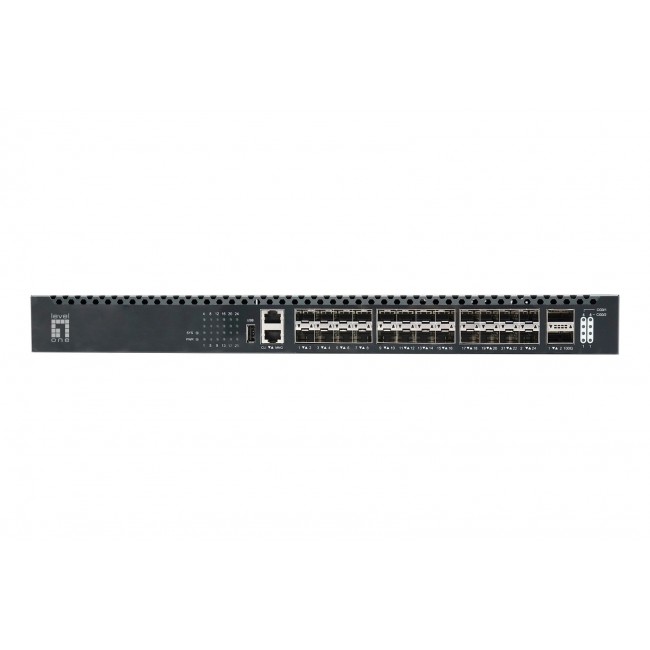

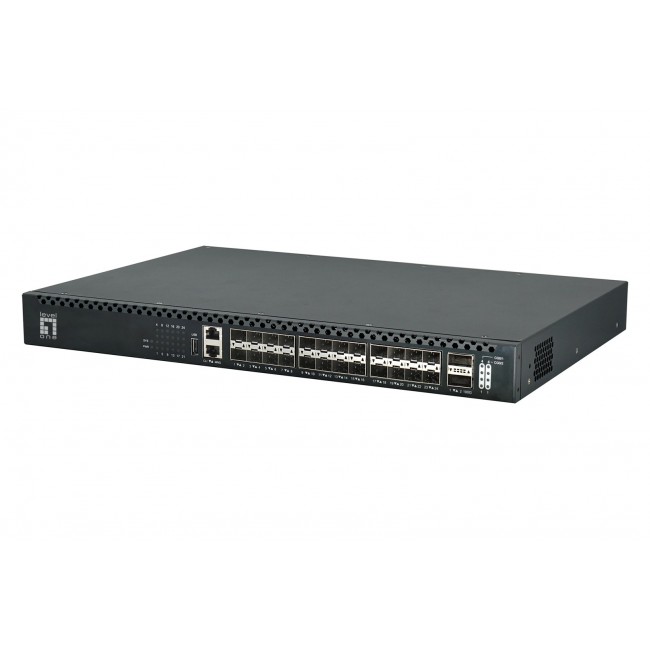

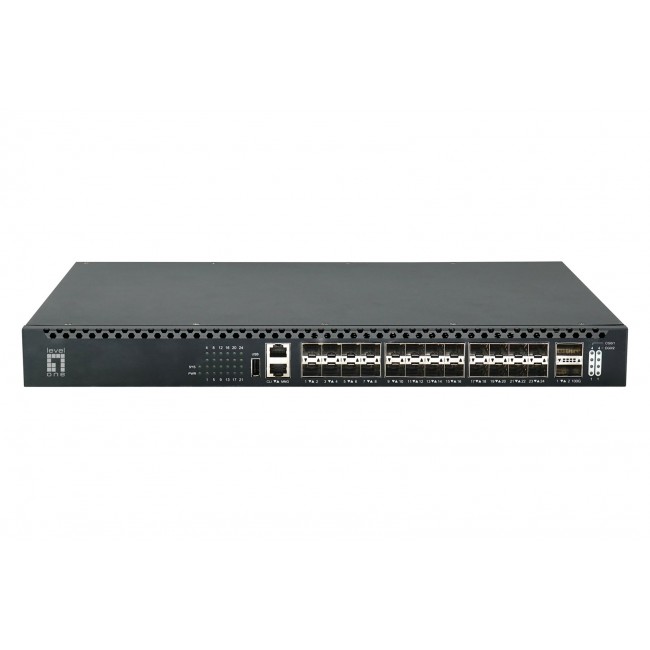

LevelOne 26-Port L3 Managed TOR Fiber Switch, 24x 1/10GbE SFP+, 2x 40/100GbE QSFP28, Hot-Swap Redundant Power Supply
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRSBH4
- Βάρος(kg): 2.39kg
- Διαστάσεις Συσκευασίας: 29.00cm x 25.50cm x 27.00cm
- EAN: 4015867238479
2.070,94€
Χωρίς ΦΠΑ: 1.670,11€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | No |
| 6to4 tunnel | Yes |
| AC input frequency | 50 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Basic switching RJ-45 Ethernet ports type | No |
| BPDU filtering/protection | Yes |
| Cables included | AC |
| Compliance certificates | UKCA RoHS Federal Communications Commission (FCC) |
| Console port | RJ-45 |
| Country of origin | China |
| Depth | 300 mm |
| DHCP features | DHCP snooping DHCP Option 82 |
| DoS attack prevention | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Fanless | No |
| Fast leave | Yes |
| Flash memory | 4096 MB |
| Forwarding rate | 660 Mpps |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Guarantee | G024M |
| Harmonized System (HS) code | 851762 |
| Heat dissipation | 238.91 BTU/h |
| Height | 44.5 mm |
| IGMP snooping | Yes |
| Internal memory | 2048 MB |
| Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) | Yes |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| MAC address filtering | Yes |
| MAC address table | 128000 entries |
| Manually configured tunnel | Yes |
| Master (outer) case gross weight | 15.7 kg |
| Master (outer) case height | 215 mm |
| Master (outer) case length | 462 mm |
| Master (outer) case width | 605 mm |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Mean time between failures (MTBF) | 200000 h |
| Multicast features | Multicast traffic suppression |
| Multicast support | Yes |
| Networking standards | IEEE 802.3ah IEEE 802.1w IEEE 802.1s IEEE 802.1D IEEE 802.3az IEEE 802.1ag IEEE 802.1AE |
| Noise level | 57 dB |
| Number of management ports | 1 pc(s) |
| Number of power supply units | 2 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 50 C |
| Package depth | 448 mm |
| Package height | 94 mm |
| Package weight | 7.45 kg |
| Package width | 576 mm |
| Packet buffer memory | 4.5 MB |
| Pallet gross length | 100 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 164.9 cm |
| Path MTU discovery | Yes |
| Policy-based routing | Yes |
| Power consumption (max) | 64 W |
| Power consumption (typical) | 26 W |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Products per master (outer) case | 2 pc(s) |
| QSFP28 ports quantity | 2 |
| Quality of Service (QoS) support | Yes |
| Queue scheduling algorithms | SP Weighted random early detection (WRED) WRR+SP Weighted Round Robin (WRR) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Redundant power supply (RPS) support | Yes |
| Root protection | Yes |
| Routing protocols | RIP-2 MPLS VRRP OSPFv3 RIP-1 HSRP OSPF BGP4+ RIPng BGP |
| Rubber feet | Yes |
| sFlow | Yes |
| SFP+ module slots quantity | 24 |
| Spanning tree protocol | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 880 Gbit/s |
| Traffic classification | Yes |
| USB 2.0 ports quantity | 1 |
| Virtual LAN features | Private VLAN Protocol-based VLAN |
| VLAN mapping type | 1:1 VLAN mapping N:1 VLAN mapping |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 4.25 kg |
| Width | 442.5 mm |
