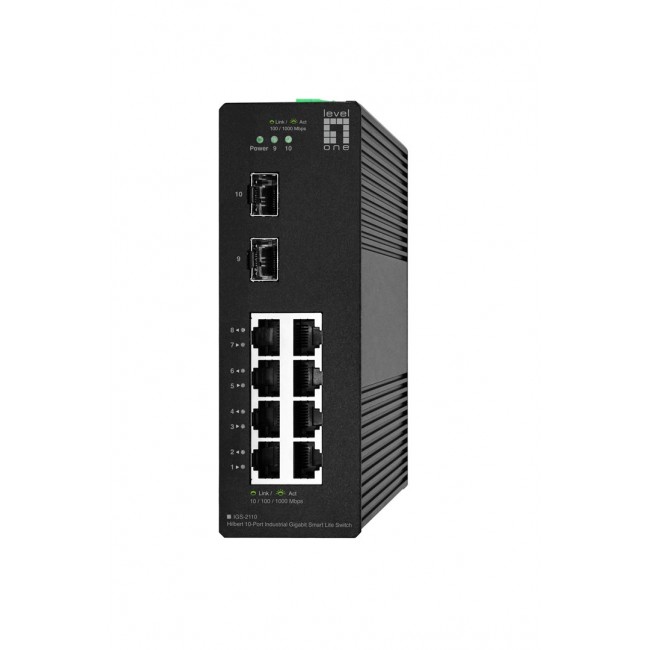

LevelOne Hilbert 10-Port Industrial Gigabit Smart Lite Switch, 8x RJ45, 2x SFP
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRSPZL
- Βάρος(kg): 2.98kg
- Διαστάσεις Συσκευασίας: 42.00cm x 12.00cm x 28.00cm
- EAN: 4015867236208
218,87€
Χωρίς ΦΠΑ: 176,50€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Compliance certificates | UKCA RoHS CE Federal Communications Commission (FCC) |
| Copper ethernet cabling technology | 1000BASE-T 1000BASE-X 100BASE-TX 10BASE-T |
| Country of origin | China |
| DC input voltage | 12 - 57 V |
| Depth | 122.5 mm |
| DIN rail included | Yes |

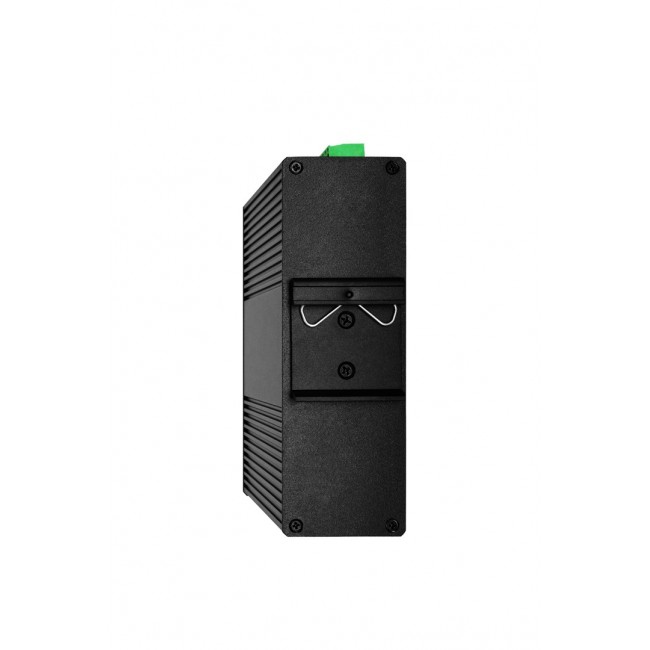

| DIN rail mounting | Yes |
| Fanless | Yes |
| Fiber uplink ports quantity | 2 |
| Flash memory | 2 MB |
| Flow control support | Yes |
| Forwarding rate | 14.88 Mpps |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Guarantee | G024M |
| Half duplex | Yes |
| Harmonized System (HS) code | 8517620090 |
| Heat dissipation | 30.71 BTU/h |
| Height | 50 mm |
| IGMP snooping | Yes |
| International Protection (IP) code | IP30 |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Layers per pallet (air) | 16 pc(s) |
| LED indicators | Activity Power Link |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| MAC address table | 4000 entries |
| Master (outer) case gross weight | 16 kg |
| Master (outer) case height | 350 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case width | 480 mm |
| Mean time between failures (MTBF) | 43800 h |
| Multicast support | Yes |
| Networking standards | IEEE 802.3 IEEE 802.3ab IEEE 802.1p IEEE 802.1w IEEE 802.1Q IEEE 802.3x IEEE 802.3u IEEE 802.3az IEEE 802.1D IEEE 802.3z |
| Noise level | 0 dB |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 75 C |
| Package depth | 160 mm |
| Package height | 73 mm |
| Package type | Box |
| Package weight | 780 g |
| Package width | 230 mm |
| Packet buffer memory | 1.5 MB |
| Pallet gross height | 154.4 cm |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Port mirroring | Yes |
| Power consumption (typical) | 9 W |
| Power over Ethernet (PoE) | No |
| Power protection features | Surge protection |

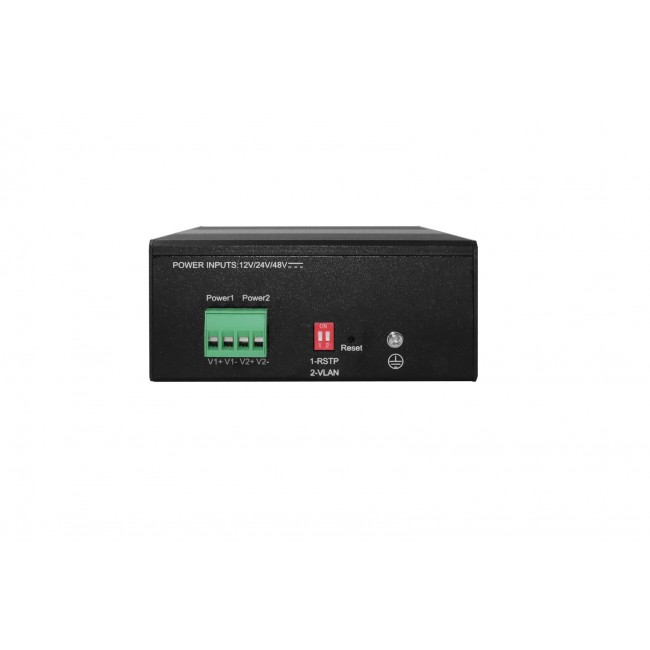

| Power source | DC |
| Power supply included | No |
| Product colour | Black |
| Products per master (outer) case | 20 pc(s) |
| Quality of Service (QoS) support | Yes |
| Queue scheduling algorithms | Priority queuing (PQ) |
| Quick start guide | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| SFP module slots quantity | 2 |
| Spanning tree protocol | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 C |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
| Sustainability compliance | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 20 Gbit/s |
| Terminal block included | Yes |
| Virtual LAN features | Tagged VLAN Port-based VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 540 g |
| Width | 149.5 mm |
