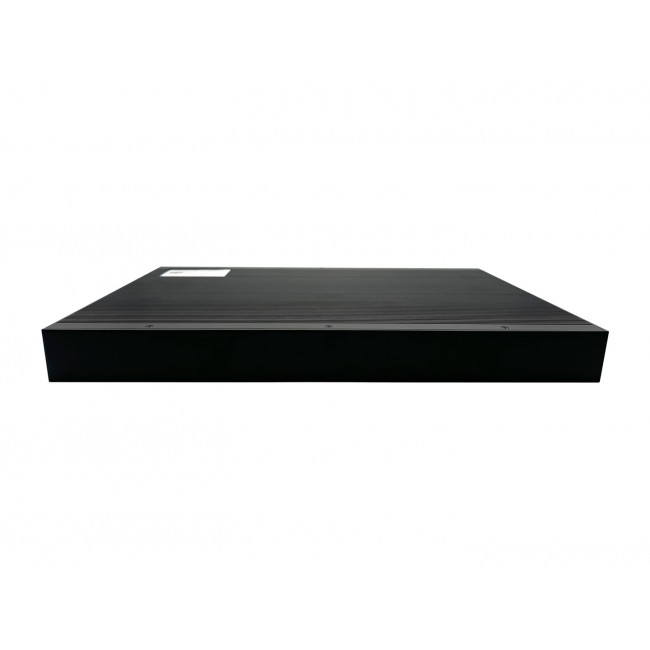

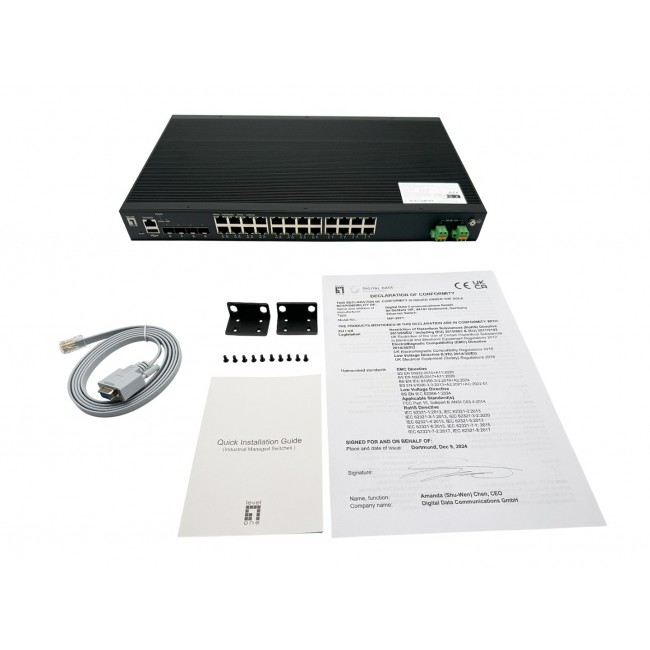

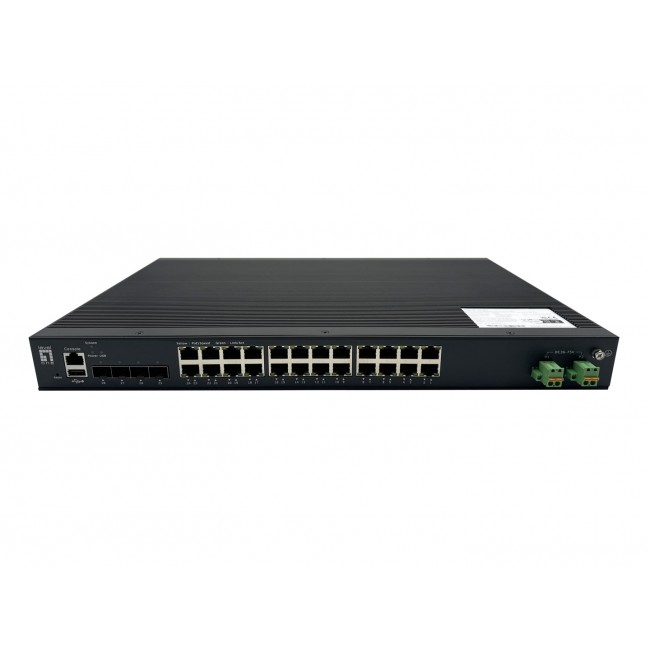

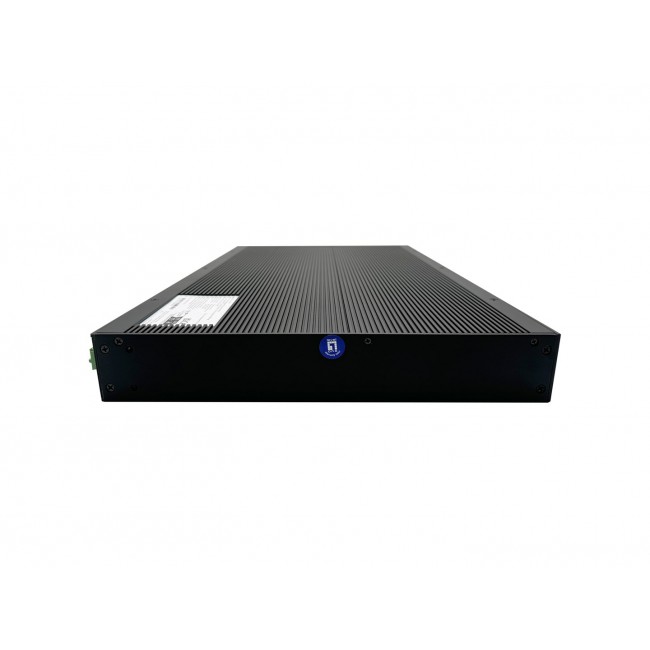

LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19" Rack Mount, -40 C to 80 C
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRRWMM
- Βάρος(kg): 2.62kg
- Διαστάσεις Συσκευασίας: 29.00cm x 36.50cm x 8.50cm
- EAN: 4015867240694
1.788,94€
Χωρίς ΦΠΑ: 1.442,70€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | Yes |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication type | IEEE 802.1x |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Cables included | LAN (RJ-45) to DB9 |
| Compliance certificates | UKCA Federal Communications Commission (FCC) RoHS CE |
| Configuring Location Settings (CLI) | Yes |
| Console port | RJ-45 |
| Country of origin | China |
| Depth | 280 mm |
| DHCP features | DHCP server |
| Dying Gasp | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Fanless | Yes |
| Flow control support | Yes |
| Forwarding rate | 190.4 Mpps |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Guarantee | G024M |
| Harmonized System (HS) code | 851762 |
| Height | 45 mm |
| IGMP snooping | Yes |
| International Protection (IP) code | IP40 |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| LED indicators | Power Status PoE USB Fault |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address entries | Dynamic MAC address entries Static MAC address entries |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Master (outer) case gross weight | 10.6 kg |
| Master (outer) case height | 408 mm |
| Master (outer) case length | 205 mm |
| Master (outer) case width | 535 mm |
| Mean time between failures (MTBF) | 200000 h |
| Multicast support | Yes |
| Networking standards | IEEE 802.3at IEEE 802.3u IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.1s IEEE 802.3af IEEE 802.1Q IEEE 802.3x IEEE 802.1x IEEE 802.3bt IEEE 802.1D IEEE 802.3z IEEE 802.1ab |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 80 C |
| Package depth | 390 mm |
| Package height | 95 mm |
| Package weight | 4.8 kg |
| Package width | 525 mm |
| Packet buffer memory | 12 MB |
| Pallet gross height | 177.6 cm |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Password protection | Yes |
| Port mirroring | Yes |
| Port trunking | Yes |
| Power consumption (max) | 402 W |
| Power consumption (typical) | 32 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 90 W |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) PoE+ |
| Power source | DC/PoE |
| Product colour | Black |
| Products per master (outer) case | 2 pc(s) |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| Security algorithms | HTTPS |
| SFP+ module slots quantity | 4 |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Static route | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 C |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 128 Gbit/s |
| System event log | Yes |
| Telnet | Yes |
| Terminal block included | Yes |
| Terminal block port | Yes |
| Total Power over Ethernet (PoE) budget | 370 W |
| USB Type-A ports quantity | 1 |
| Virtual LAN features | MAC address-based VLAN IP subnet based VLAN VLAN mapping Stacked VLAN Protocol-based VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 4.14 kg |
| Width | 440 mm |
