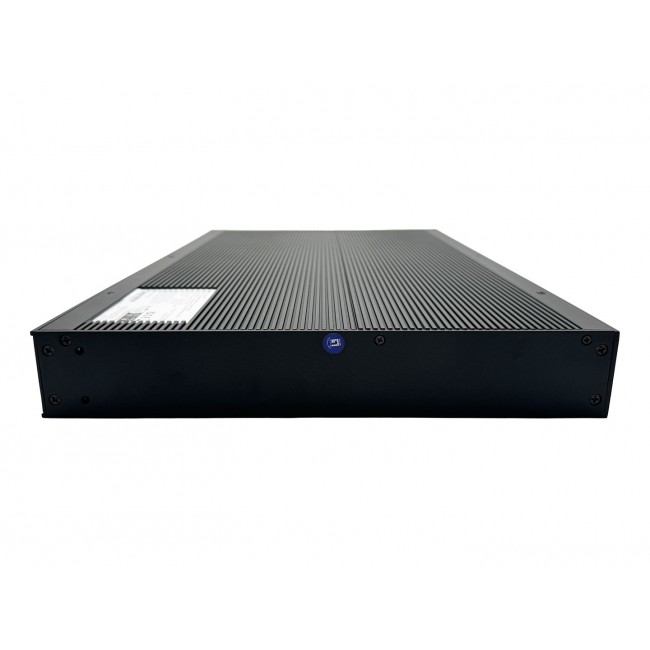

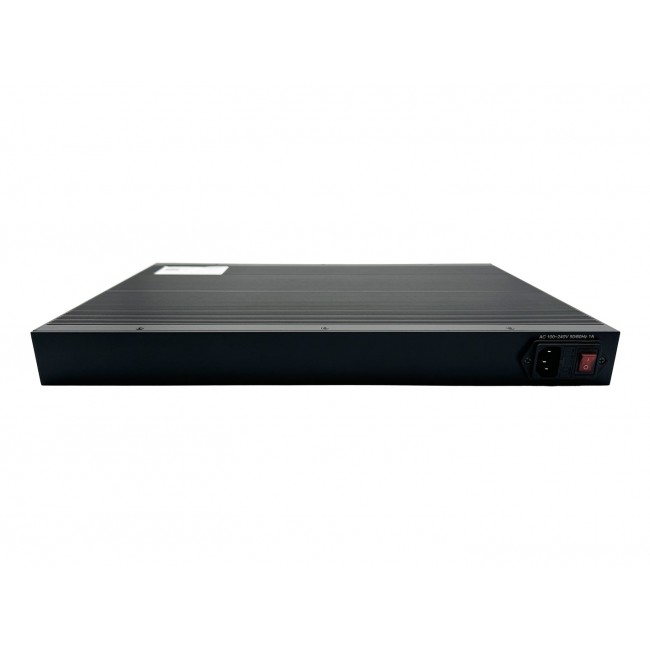

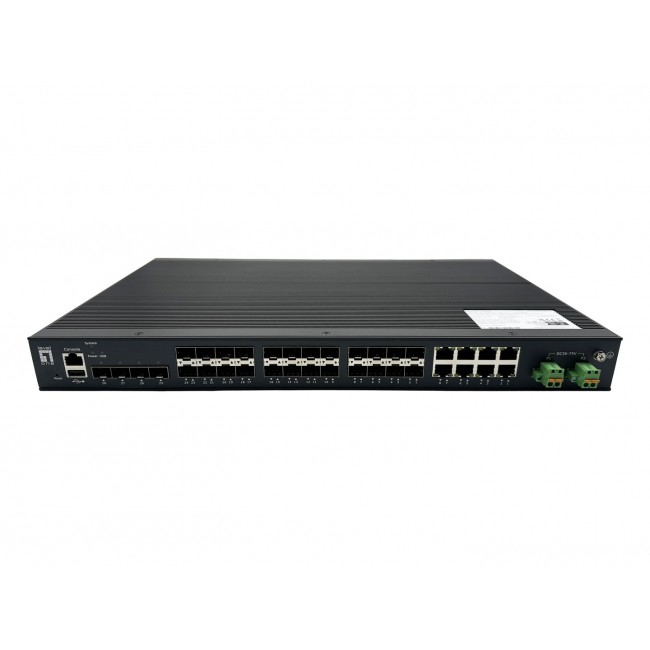

LevelOne 28-Port L2 Plus Managed Gigabit Fiber Industrial Switch, 4x 1.25/2.5GbE SFP, 16x 1.25GbE SFP, 8x Gigabit SFP/RJ45 Combo, Redundant Power Supply, -40 C to 80 C
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRSP15
- Βάρος(kg): 2.98kg
- Διαστάσεις Συσκευασίας: 42.00cm x 12.00cm x 28.00cm
- EAN: 4015867238608
1.229,07€
Χωρίς ΦΠΑ: 991,18€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Basic switching RJ-45 Ethernet ports type | No |
| Broadcast storm control | Yes |
| Cables included | AC LAN (RJ-45) |
| Combo SFP ports quantity | 8 |
| Compliance certificates | Federal Communications Commission (FCC) RoHS CE UKCA |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 1000BASE-T 100BASE-TX 10BASE-T 100BASE-X |
| Country of origin | China |
| DC input voltage | 36 - 75 V |
| Depth | 45 mm |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Fanless | Yes |
| Flow control support | Yes |
| Forwarding rate | 101.1 Mpps |
| Guarantee | G024M |
| Harmonized System (HS) code | 851762 |
| Height | 280 mm |
| International Protection (IP) code | IP40 |
| IP Source Guard (IPSG) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| LED indicators | USB System Power |
| MAC address entries | Static MAC address entries Dynamic MAC address entries |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Master (outer) case gross weight | 22.5 kg |
| Master (outer) case height | 408 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case width | 535 mm |
| Master (outer) cases per pallet (air) | 14 pc(s) |
| Mean time between failures (MTBF) | 200000 h |
| Networking standards | IEEE 802.1Q IEEE 802.3x IEEE 802.3 IEEE 802.3ab IEEE 802.1ab IEEE 802.1x IEEE 802.1s IEEE 802.1D IEEE 802.3z IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 80 C |
| Package depth | 390 mm |
| Package height | 95 mm |
| Package weight | 5.29 kg |
| Package width | 525 mm |
| Packet buffer memory | 12 MB |
| Packet filtering | Y |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 177.6 cm |
| Port mirroring | Yes |
| Port trunking | Yes |
| Power consumption (max) | 36 W |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Products per master (outer) case | 4 pc(s) |
| Quality of Service (QoS) support | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| Security algorithms | SSH HTTPS |
| SFP module slots quantity | 20 |
| Spanning tree protocol | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 C |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 68 Gbit/s |
| System event log | Yes |
| Terminal block included | Yes |
| USB 2.0 ports quantity | 1 |
| Virtual LAN features | MAC address-based VLAN VLAN mapping Stacked VLAN Protocol-based VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 4.14 kg |
| Width | 440 mm |
