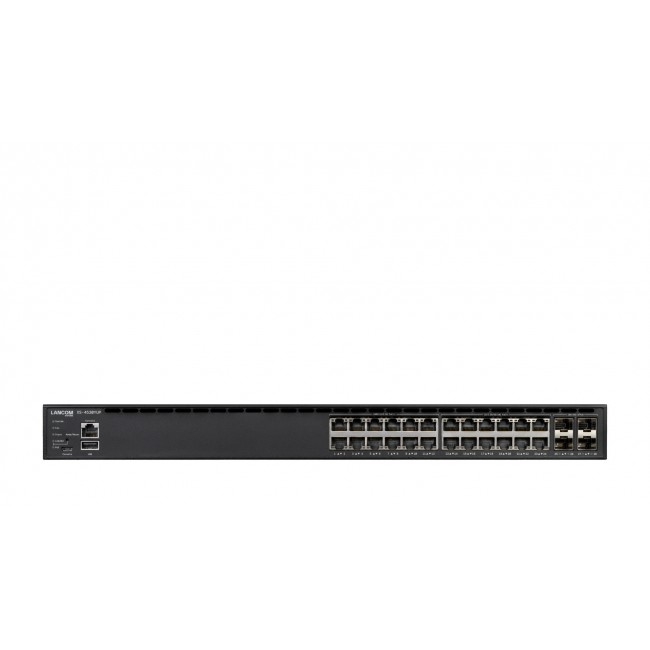

LANCOM XS-4530YUP Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: No name
- Κωδικός: WLONONWCRTAB2
- Βάρος(kg): 7.00kg
- Διαστάσεις Συσκευασίας: 49.50cm x 10.00cm x 31.50cm
- EAN: 4044144618857
10.616,65€
Χωρίς ΦΠΑ: 8.561,82€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G Ethernet (copper) ports quantity | 12 |
| 10G support | Yes |
| 2.5G Ethernet (copper) ports quantity | 12 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication | Guest VLAN |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Cables included | Serial Micro-USB AC |
| Compliance certificates | CE Federal Communications Commission (FCC) |
| Configuring Location Settings (CLI) | Yes |
| Console port | RJ-45/micro-USB |
| Country of origin | Taiwan |
| Customs product code (TARIC) | 85176200 |
| Depth | 440 mm |
| DHCP features | DHCP server DHCP snooping DHCP client DHCP relay |
| DIN rail mounting | Yes |
| Firmware upgradeable | Yes |
| Flow control support | Yes |
| Form factor | 1U |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Guarantee | G024M |
| Heat dissipation | 715 BTU/h |
| Height | 44 mm |
| Housing material | Metal |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| IP Source Guard (IPSG) | Yes |
| Jumbo frames | 12288 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| MAC address table | 32000 entries |
| Mounting brackets included | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Networking standards | IEEE 802.1Q IEEE 802.3x IEEE 802.1ab IEEE 802.1Qav IEEE 802.1ad IEEE 802.3ba IEEE 802.3 IEEE 802.3ab IEEE 802.1p IEEE 802.1ak IEEE 802.3at IEEE 802.3af IEEE 802.3az IEEE 802.1D IEEE 802.3z IEEE 802.3ae IEEE 802.1x IEEE 802.3bt IEEE 802.3bz IEEE 802.1AX IE |
| Noise level | 60 dB |
| Number of fans | 2 fan(s) |
| Number of management ports | 1 pc(s) |
| Number of static routes | 16000 |
| Number of VLANs | 4093 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 C |
| Package depth | 590 mm |
| Package height | 130 mm |
| Package weight | 6.45 kg |
| Package width | 630 mm |
| Packet buffer memory | 8 MB |
| Port mirroring | Yes |
| Power connector | AC-in jack |
| Power consumption (max) | 1650 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 90 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Power source | AC/PoE |
| Power supply included | Yes |
| Product colour | Black |
| QSFP28 ports quantity | 2 |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mounting | Yes |
| Rack rails | Yes |
| Routing protocols | RIP-2 OSPFv2 VRRP OSPFv3 BGP4 |
| SFP28 ports quantity | 4 |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Static route | Yes |
| Store-and-forward | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 900 Gbit/s |
| Throughput | 670 Mpps |
| Total Power over Ethernet (PoE) budget | 720 W |
| USB Type-A ports quantity | 1 |
| Virtual LAN features | MAC address-based VLAN IP subnet based VLAN VLAN Identifier ( VLAN ID) MVRP Port-based VLAN Private VLAN Tagged VLAN Protocol-based VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 6.2 kg |
| Width | 442 mm |
