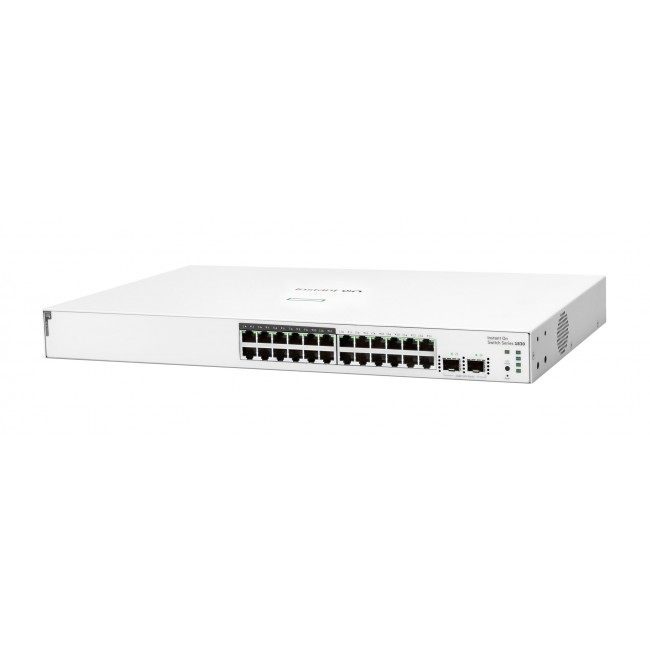

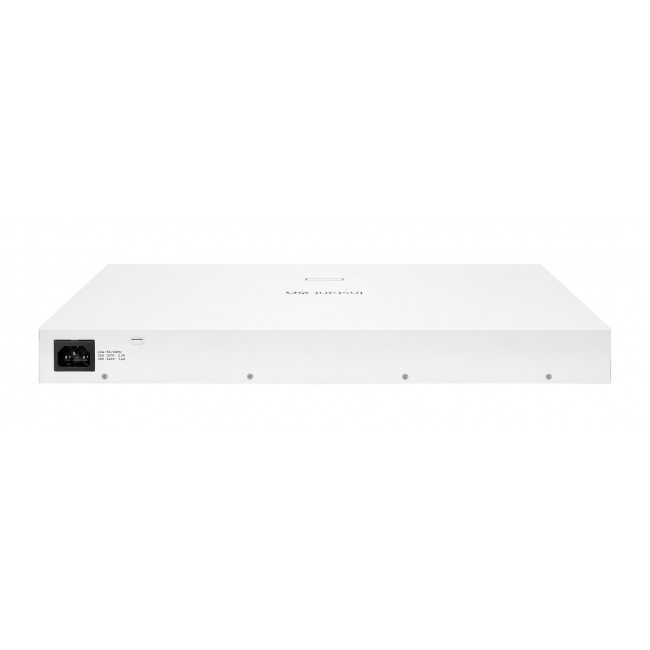

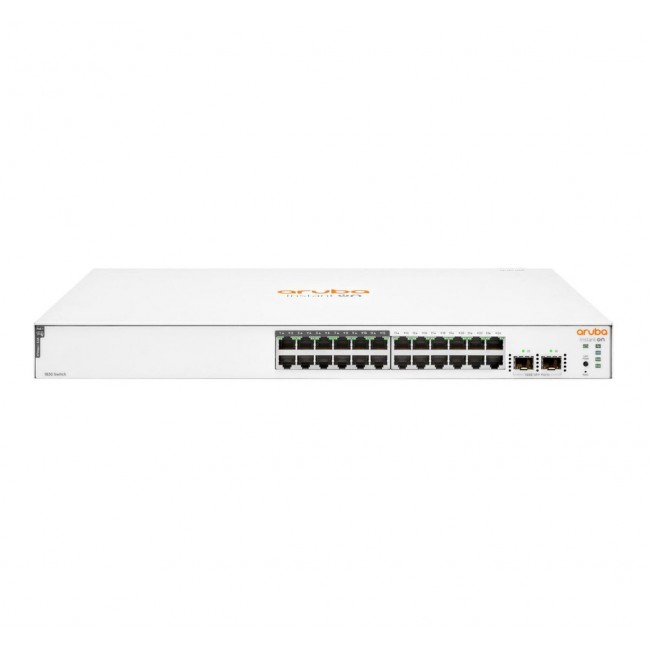

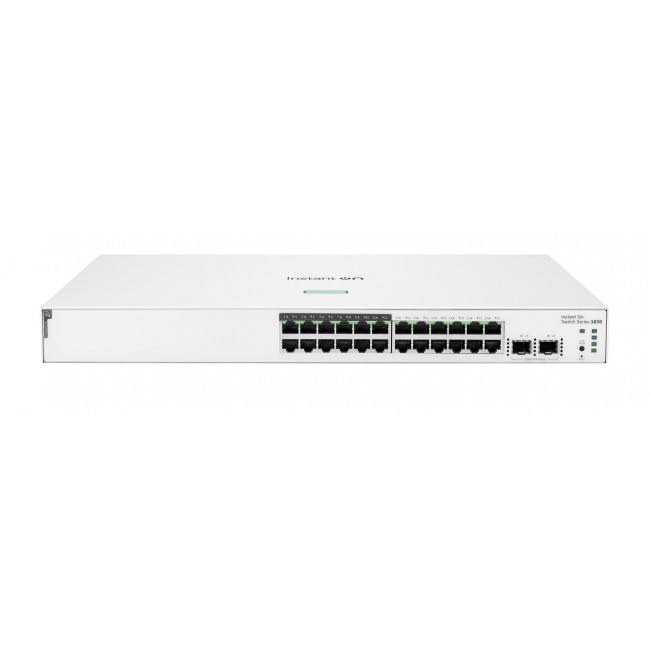

HPE NW ION 1830 24G 12p Cl.4 PoE 2SFP 195W Switch JL813A
- Διαθεσιμότητα: Διαθέσιμο από 9 έως 15 ημέρες
- Κατασκευαστής: High Peak
- Κωδικός: WLONONWCREKIU
- Βάρος(kg): 4.90kg
- Διαστάσεις Συσκευασίας: 52.00cm x 39.00cm x 13.00cm
- EAN: 0190017523743
393,10€
Χωρίς ΦΠΑ: 317,02€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | No |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Built-in processor | Yes |
| Cloud-managed | Yes |
| Depth | 443 mm |
| DHCP features | DHCP client |
| Dimensions (W x D x H) (imperial) | 253 x 443 x 43.9 mm (9.96 x 17.4 x 1.73") |
| Flash memory | 256 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Guarantee | F024M |
| Harmonized System (HS) code | 85176990 |
| Height | 43.9 mm |
| I/O ports | 24 RJ-45 10/100/1000 Class 4 PoE ports, 2 SFP 1GbE ports |
| IGMP snooping | Yes |
| Internal memory | 512 MB |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 2.8 s |
| Latency (10-100 Mbps) | 5.2 s |
| Link aggregation | Yes |
| MAC address table | 16000 entries |
| Memory and processor | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash packet buffer: 1.5 MB |
| Memory type | RDRAM |
| Networking standards | IEEE 802.1Q IEEE 802.3x IEEE 802.1w IEEE 802.3ac IEEE 802.1ab IEEE 802.3 IEEE 802.3ab IEEE 802.1p IEEE 802.1D IEEE 802.3z IEEE 802.3at IEEE 802.3ad IEEE 802.3u IEEE 802.3af IEEE 802.3az |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 40 C |
| Packet buffer memory | 1.5 MB |
| Performance management | HPE Networking Instant On Cloud Web browser SNMP Manager |
| Port mirroring | Yes |
| Power consumption note | Maximum: 100-127V: 244.6W 200-220V: 237.2W Idle: 100-127V: 14.5W 200-220V: 13.4W |
| Power over Ethernet (PoE) | Yes |
| Power source | AC |
| Power supply included | Yes |
| Processor frequency | 800 MHz |
| Processor model | ARM Cortex-A9 |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| SFP module slots quantity | 2 |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Storage relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 C |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 52 Gbit/s |
| System event log | Yes |
| Throughput | 38.68 Mpps |
| Total Power over Ethernet (PoE) budget | 195 W |
| VLAN support | Yes |
| Warnings | Do not open the case or try to repair it yourself. Ensure the unit is adequately ventilated during operation. The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with l |
| Web-based management | Yes |
| Weight | 3.47 kg |
| Weight (imperial) | 3.47 kg (7.65 lbs) |
| Width | 253 mm |
