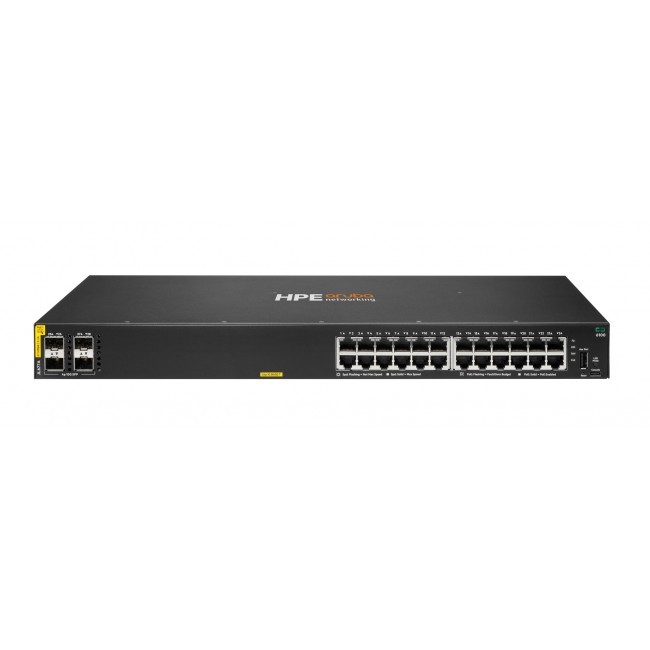

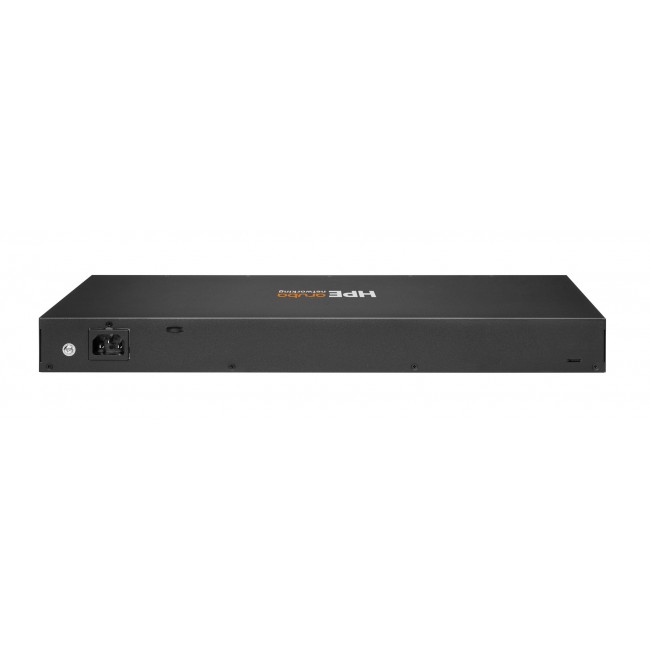

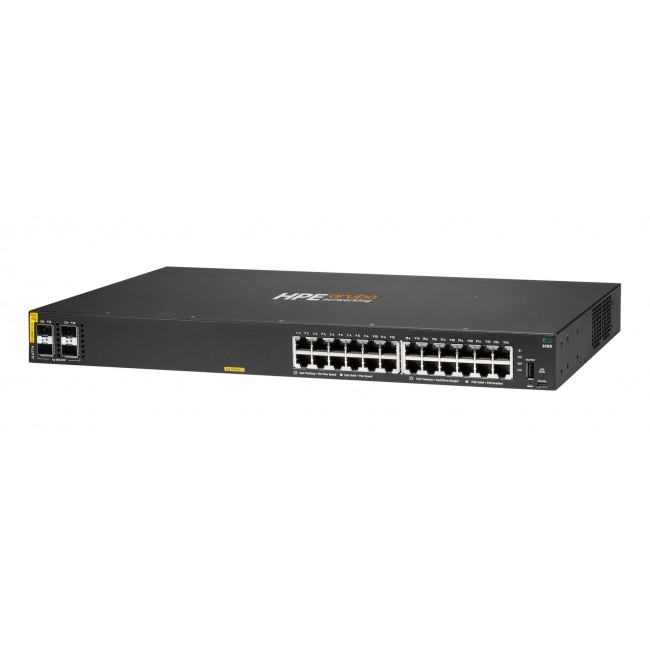

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: High Peak
- Κωδικός: WLONONWCRCGU8
- Βάρος(kg): 3.59kg
- Διαστάσεις Συσκευασίας: 36.00cm x 9.00cm x 55.00cm
- EAN: 190017348483
1.953,18€
Χωρίς ΦΠΑ: 1.575,14€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 10G support | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Access Control List (ACL) | Yes |
| Airflow direction | Side-to-side airflow |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Built-in processor | Yes |
| Console port | USB |
| Depth | 442 mm |
| DHCP features | DHCP client |
| Dimensions (W x D x H) (imperial) | 43.9 x 442 x 268.2 mm (1.73 x 17.4 x 10.6") |
| Fan | Fixed fans |
| Flash memory | 16 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Guarantee | G024M |
| Harmonized System (HS) code | 85176990 |
| Height | 268 mm |
| I/O ports | 24 x 10/100/1000BASE-T ports 4 x 1G/10G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port |
| IGMP snooping | Yes |
| Internal memory | 4096 MB |
| Jumbo frames support | Yes |
| Latency | 1 Gbps: 1.5 Sec , 10 Gbps: 1.8 Sec |
| Latency (1 Gbps) | 1.5 s |
| Latency (10 Gbps) | 1.8 s |
| Link aggregation | Yes |
| MAC address table | 8192 entries |
| Memory and processor | Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC |
| Memory type | DDR3-SDRAM |
| Multicast support | Yes |
| Networking standards | IEEE 802.3af IEEE 802.3 IEEE 802.3ab IEEE 802.1p IEEE 802.3az IEEE 802.1D IEEE 802.3at IEEE 802.1Q IEEE 802.3x IEEE 802.1w IEEE 802.3ad IEEE 802.1s |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 C |
| Packet buffer memory | 12.38 MB |
| Port mirroring | Yes |
| Power consumption (max) | 32.7 W |
| Power consumption note | Max. Power (w/o PoE): 32.7W Max. Power (w/ PoE): 455W |
| Power over Ethernet (PoE) | Yes |
| Power source | AC |
| Power supply included | Yes |
| Power supply note | Fixed power supply |
| Processor frequency | 1016 MHz |
| Processor model | ARM Cortex-A9 |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| SFP+ module slots quantity | 4 |
| Spanning tree protocol | Yes |
| Stackable | Yes |
| Storage relative humidity (H-H) | 15 - 90% |
| Storage temperature (T-T) | -40 - 70 C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| Total Power over Ethernet (PoE) budget | 370 W |
| Virtual stacking (units) | 16 |
| VLAN support | Yes |
| Warnings | Ensure the unit is adequately ventilated during operation. The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. Do not open the case or try to re |
| Weight | 4.2 kg |
| Weight (imperial) | 4.19 kg (9.24 lbs) |
| Width | 44 mm |
