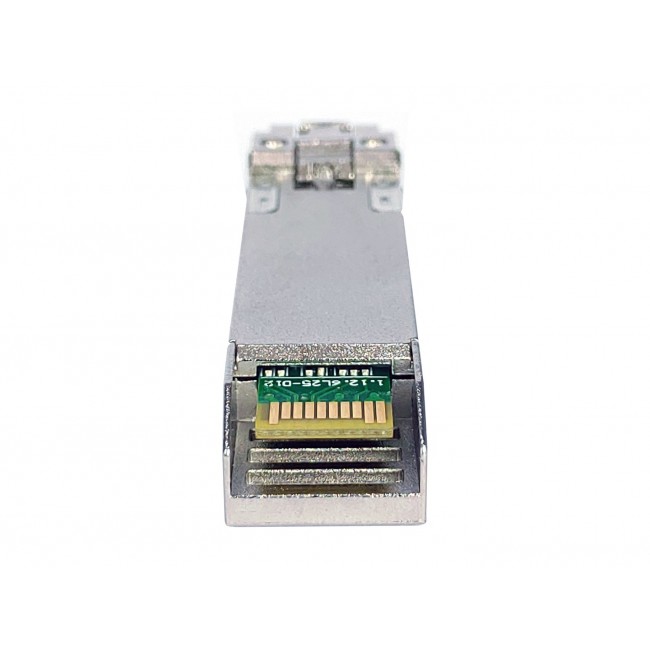

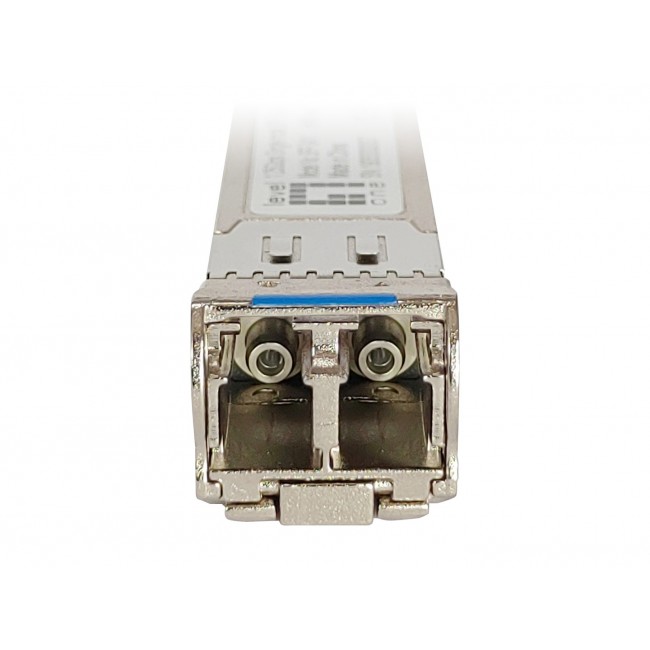

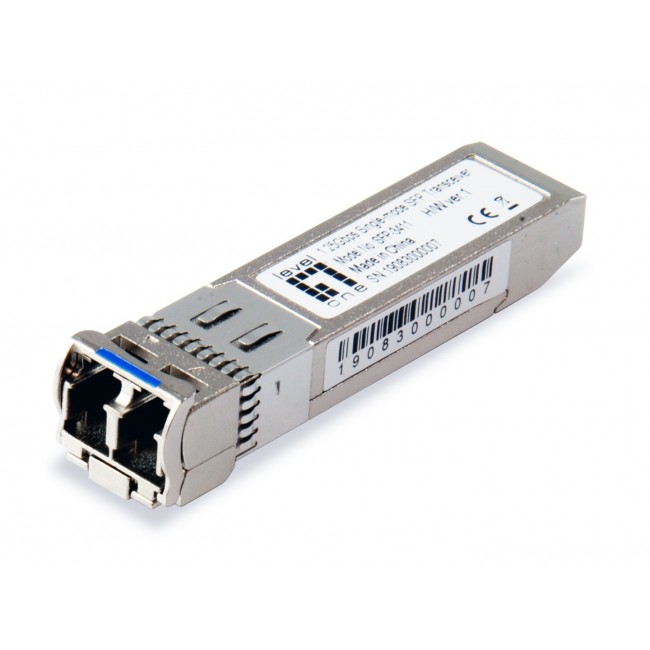

LevelOne SFP-3411 network transceiver module Fiber optic 1250 Mbit/s 1310 nm

59,28€

Χωρίς ΦΠΑ: 47,81€

Ποσότητα

ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451

100 % Ασφάλεια αγορών

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Certification	EMC Directive 2014/53/EU IEC 61000-4-3 / IEC 61000-4-2
Compliance certificates	RoHS
Copper ethernet cabling technology	1000BASE
Country of origin	China
Depth	12 mm
Digital Diagnostics Monitoring (DDM)	Yes
Fiber cable diameters supported (core/cladding)	9/125 m
Fiber optic connector	LC
Guarantee	G024M
Harmonized System (HS) code	85369010
Height	14 mm
Hot-swap	Yes
Input voltage	3.3 V
Interface type	SFP
Link budget	20 dB
Maximum current	0.25 A
Maximum data transfer rate	1250 Mbit/s
Maximum transfer distance	40000 m
Multi-mode fiber (MMF) supported	No
Networking standards	IEEE 802.3z
Operating relative humidity (H-H)	0 - 85%
Operating temperature (T-T)	0 - 70 C
Package depth	20 mm
Package height	65 mm
Package type	Box
Package weight	40 g
Package width	106 mm
Product colour	Silver
Quantity per pack	1 pc(s)
Receive power	-25 - - 2 dBmW
Rx power (max)	-2 dBmW
Rx power (min)	-25 dBmW
SFP transceiver standard	LX
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) supported	Yes
Storage relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-40 - 85 C
Tx power (max)	0 dBmW
Tx power (min)	-5 dBmW
User guide	Yes
Wavelength	1310 nm
Weight	22 g
Width	57 mm

LevelOne SFP-3411 network transceiver module Fiber optic 1250 Mbit/s 1310 nm
