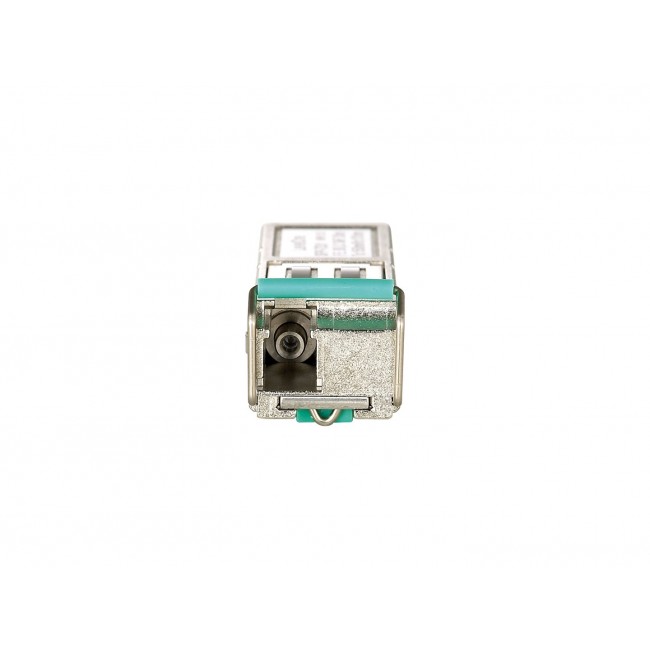

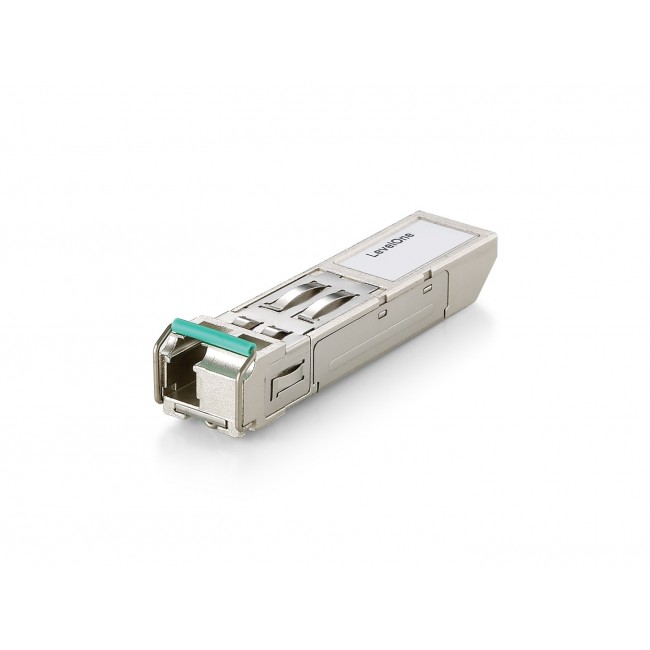

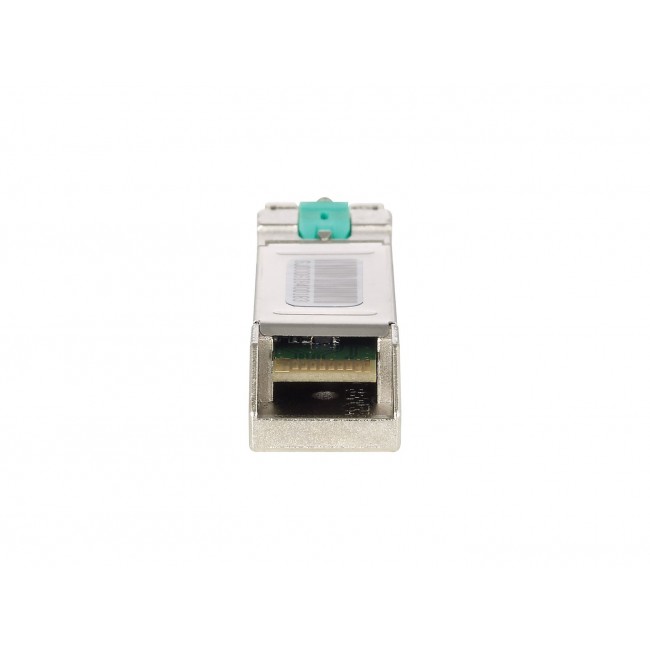

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm

47,35€

Χωρίς ΦΠΑ: 38,18€

Ποσότητα

ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451

100 % Ασφάλεια αγορών

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Certification	CE, FCC
Compliance certificates	RoHS
Depth	56.5 mm
Fiber cable diameters supported (core/cladding)	9/125 m
Fiber optic connector	LC
Fiber ports quantity	1
Guarantee	G024M
Harmonized System (HS) code	85369010
Height	8.95 mm
Hot-swap	Yes
Input voltage	3.3 V
Interface type	SFP
Maximum current	0.3 A
Maximum data transfer rate	155 Mbit/s
Maximum transfer distance	20 m
Maximum voltage	6 V
Networking standards	IEEE 802.3ah
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 70 C
Package depth	51 mm
Package height	130 mm
Package weight	60 g
Package width	75 mm
Quantity per pack	1 pc(s)
Safety	EN 60825-1
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) supported	Yes
Storage temperature (T-T)	-40 - 85 C
Tx power (max)	-8 dBmW
Tx power (min)	-14 dBmW
Weight	20 g
Width	13.7 mm

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm
