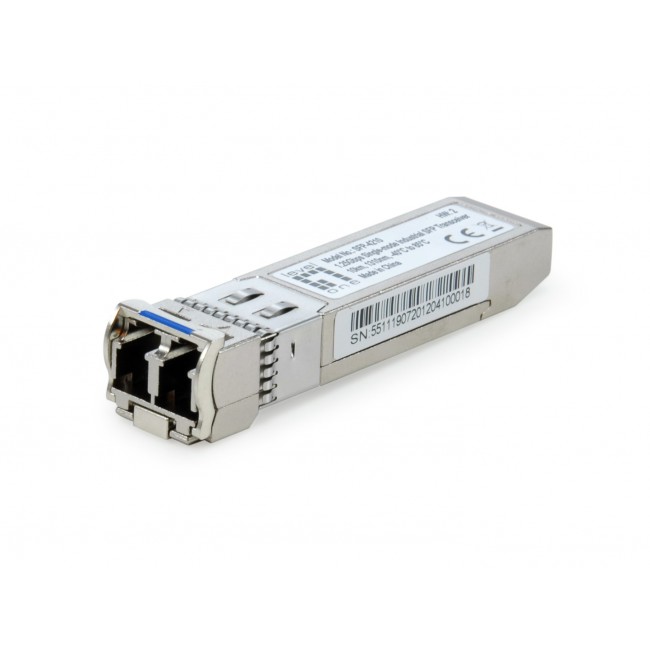

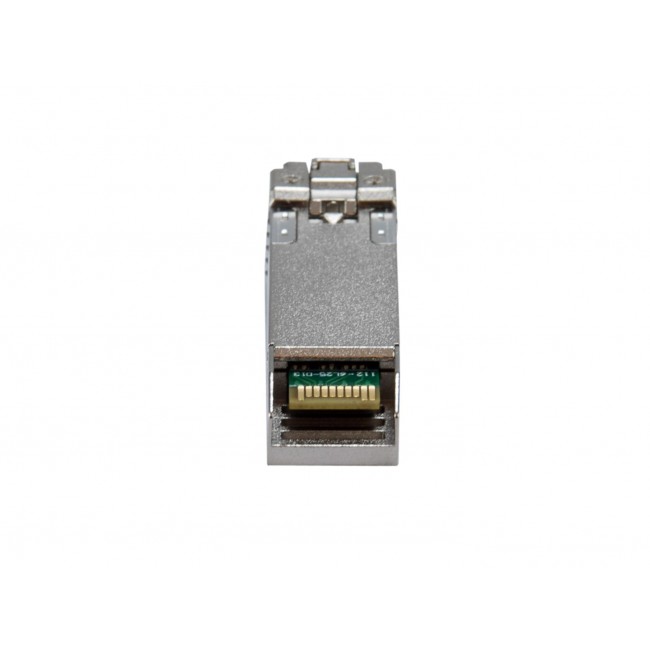

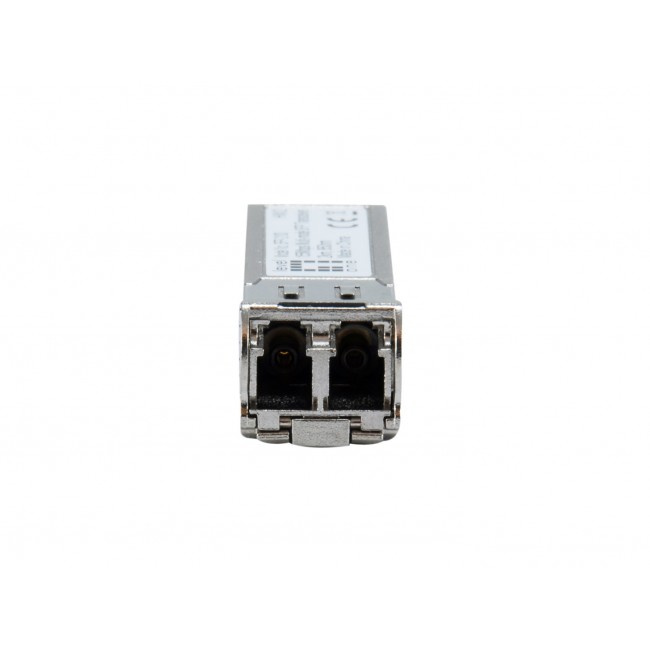

LevelOne 1.25Gbps Single-mode Industrial SFP Transceiver, 10km, 1310nm, -40 C to 85 C

48,27€

Χωρίς ΦΠΑ: 38,93€

Ποσότητα

ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451

100 % Ασφάλεια αγορών

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Certification	CE, FCC
Compliance certificates	RoHS
Copper ethernet cabling technology	1000BASE
Country of origin	China
Depth	57 mm
Digital Diagnostics Monitoring (DDM)	Yes
Duplex system	Full
Fiber cable diameters supported (core/cladding)	9/125 m
Fiber optic connector	LC
Guarantee	G024M
Harmonized System (HS) code	85369010
Height	12 mm
Hot-swap	Yes
Interface type	SFP
Master (outer) case gross weight	6.67 kg
Master (outer) case height	268 mm
Master (outer) case length	375 mm
Master (outer) case width	310 mm
Maximum current	0.3 A
Maximum data transfer rate	1250 Mbit/s
Maximum transfer distance	10000 m
Maximum voltage	3.47 V
Multi-mode fiber (MMF) supported	No
Networking standards	IEEE 802.3z
Operating relative humidity (H-H)	0 - 85%
Operating temperature (T-T)	0 - 70 C
Package depth	106 mm
Package height	20 mm
Package type	Box
Package weight	39 g
Package width	65 mm
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	166.9 cm
Power consumption (typical)	0.8 W
Product colour	Silver
Products per master (outer) case	150 pc(s)
Products per pallet	35 pc(s)
Quantity per pack	1 pc(s)
Rx power (max)	2 dBmW
Rx power (min)	-25 dBmW
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) supported	Yes
Storage temperature (T-T)	-40 - 85 C
Tx power (max)	-3 dBmW
Tx power (min)	-9.5 dBmW
User guide	Yes
Wavelength	1310 nm
Weight	20 g
Width	14 mm

LevelOne 1.25Gbps Single-mode Industrial SFP Transceiver, 10km, 1310nm, -40 C to 85 C
