Name: Tubular antenna RF Elements HG3-CC-S80 N-Type, 10.4 dBi
Brand: RF Elements
Price: 148.3 EUR
Availability: InStock

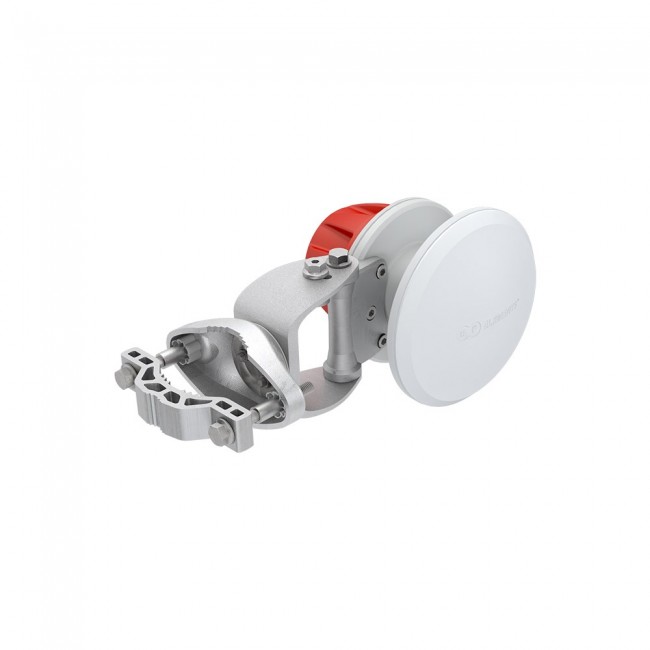

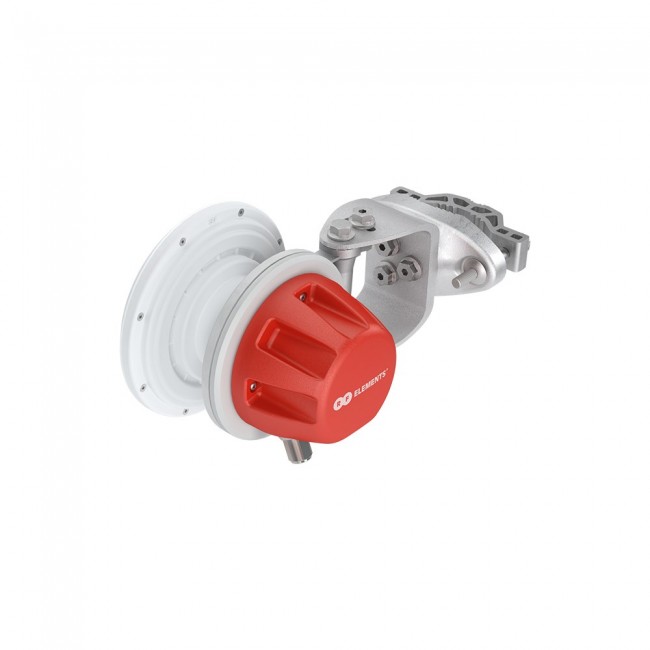

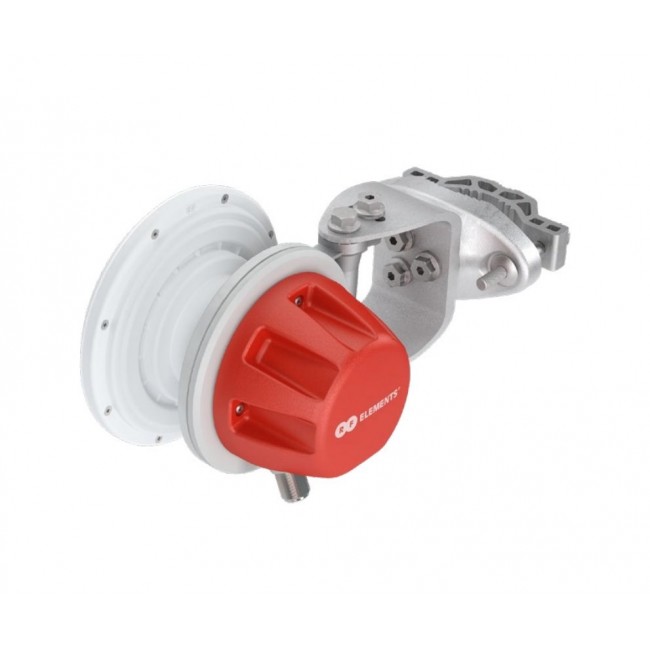

RF Elements HG3-CC-S80 network antenna Horn antenna N-type 10.4 dBi

148,30€

Χωρίς ΦΠΑ: 119,60€

Ποσότητα

ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451

100 % Ασφάλεια αγορών

Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Antenna connector type	N-type
Antenna gain level (max)	10.4 dBi
Antenna type	Horn antenna
Connector gender	Female
Depth	160 mm
Downtilt	25
Frequency band	5.18 - 6.4 GHz
Front to back ratio	29 dB
Guarantee	G024M
Height	152 mm
Horizontal beam width	80
Housing material	Aluminium Zinc Polypropylene (PP) Stainless steel
Impedance	50
International Protection (IP) code	IP55
Master (outer) case gross weight	27.2 kg
Master (outer) case height	335 mm
Master (outer) case length	510 mm
Master (outer) case width	940 mm
Mounting	Pole
Mounting pipe	30 - 90 mm
Operating temperature (T-T)	-30 - 55 C
Package depth	239 mm
Package height	183 mm
Package weight	2.6 kg
Package width	305 mm
Polarization	Dual polarization
Product colour	White Red
Products per master (outer) case	10 pc(s)
Purpose	Outdoor
Quantity per pack	1 pc(s)
Survival wind speed	160 km/h
Ultraviolet (UV) resistant	Yes
Vertical beam width	80
Voltage Standing Wave Ratio (VSWR)	1.6/1.9
Weight	1.8 kg
Width	312 mm
Wind load	22

RF Elements HG3-CC-S80 network antenna Horn antenna N-type 10.4 dBi
